Raptor XR Designed for DJI Inspire 2

Last Sold  2 sold in last 12 hours

Item Code: G105600G

Last updated: 27-02-2020

Features:

  • Maximize performance
  • Concurrent dual band 2.4 & 5GHz
  • QuickAttach mounting system
  • Adjustable tilt of the range extender
  • Dedicated pigtails
  • No drilling required
  • No modification to the drone itself
  • Long range extension without external boosters
  • Design does not contain any removable parts

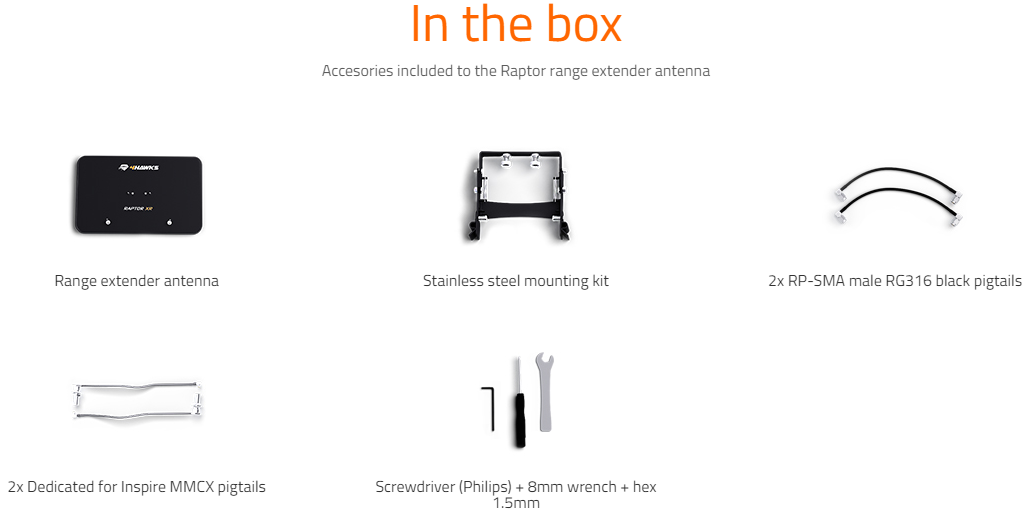

  • Complete solution
  •  Ask a Question

    Raptor XR Designed for DJI Inspire 2

    AED 922

    Ask a Question

      Estimated Delivery: Mar 23 – Mar 25
      ... people are viewing this right now

    Guaranteed Safe Checkout

    AED 922

    +

    Item Code: G105600 BK

    Last updated: 30-10-2022

    DJI Inspire 2 is one of newer models made for professional users. It is definitely a flagship of professional models currently available on the market. The drone’s body is made from magnesium alloys. Cameras included are easily interchangeable with quality up to 5.2k. The basic kit allows for up to 30 minutes of uninterrupted flight, maximum speed of 90km/h.
    4Hawks antenna significantly increases  the range of DJI Inspire 2, so the drone can reach even further than ever before. Additionally, the strength of the signal is improved, especially in noisy areas.
    Last but not least, with 4Hawks range extender, the video quality is always glitch free, thanks to a strong, uninterrupted signal, that is supported by two frequencies operating at the same time.

    Electrical parameters

    Frequencies
    Port 1:   2.40 – 2.50 GHz & 5.00 – 5.80 GHz
    Port 2:   2.40 – 2.50 GHz & 5.00 – 5.80 GHz
    Gain
    Port 1:   11 dBi  (+/- 1 dBi) & 14 dBi  (+/- 1 dBi)
    Port 2:   11 dBi  (+/- 1 dBi) & 14 dBi  (+/- 1 dBi)
    VSWR

    Port 1:   < 1.50  (max. < 2.00)
    Port 2:   < 1.50  (max. < 2.00)

    Beamwidth
    Port 1:   70°/40° & 40°/25°
    Port 2:   70°/40° & 40°/25°
    Polarization
    Port 1:   Vertical
    Port 2:   Vertical
    Impedance
    Port 1:   50 Ω
    Port 2:   50 Ω

    Mechanical parameters

    Material
    Antenna:   Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB
    Mounting:   Stainless steel + paint
    Weight
    ~ 540g (450g Antenna + 90g Mounting)
    Dimensions
    29.2 x 18.2 x 2.1 cm
    11.50 x 7.16 x 0.83 inch
    Connection
    Port 1:   RP-SMA female
    Port 2:   RP-SMA female
    Tilt adjustment
    5 tilt positions, OnClick system
    Mounting type
    On SMA connectors (Permanent)

    Brand

    DJI
