Raptor SR Designed for DJI Phantom 4 Pro

Last Sold  4 sold in last 9 hours

Item Code: G1056TA

Last updated: 08/06/2023

  • Concurrent dual band 2.4 & 5GHz
  • QuickAttach mounting system
  • Low loss PTFE antenna array
  • No modification to the drone itself
  • Long range extension without external boosters
  • Design does not contain any removable parts
  • Complete solution
  •  Ask a Question

    Raptor SR Designed for DJI Phantom 4 Pro

    AED 780

    Ask a Question

      Estimated Delivery: Apr 26 – Apr 28
      ... people are viewing this right now
    Compare
    Guaranteed Safe Checkout

    AED 780

    +

    Specification

    DJI Phantom 4 Pro is a model designed for professionals. The basic kit allows for 30 minutes of uninterrupted flight, maximum speed of 72km/h.
    With 4Hawks range extender antenna ability to work at 2 frequencies at the same time, DJI Phantom 4 Pro receives a great boost to its overall performance, by enhancing signal from oblique antenna signals that ignore noise exceptionally well – this in return allows Phantom 4 Pro to maximize its range in noisy areas. What’s more 4Hawks antenna also increases the range of DJI Phantom 4 Pro significantly, so the drone can reach even further than ever before.
    4Hawks antenna for DJI Phantom 4 Pro model is operating in 2.4GHz with 8dBi gain as well as in 5GHz with 10 dBi gain. Both antenna frequencies allow simultaneous work. Entire construction is 100% UV protected to assure longevity of the equipment. Additionally, part of the construction is made of aluminum to make the whole construction as light as possible. Mounting is made of stainless steel for rock solid stability. Mounting the range extender is easy and doesn’t require professional assistance. The entire set is lightweight and uniform (without any loose equipment pieces). Changing the direction of the antenna shouldn’t cause any difficulties, as the system was designed in a way that allows quick position change with just a single “click” to 5 different positions. This way you can be sure that you do not lose the connection with your drone.

    Specification

    electrical & mechanical parameters of Raptor renge extender.

    Electrical parameters

    Frequencies
    Port 1:    2.40 – 2.50 GHz & 5.00 – 5.80 GHz
    Port 2:    2.40 – 2.50 GHz & 5.00 – 5.80 GHz
    Gain
    Port 1:   8 dBi  (+/- 1 dBi) & 10 dBi  (+/- 1 dBi)
    Port 2:   8 dBi  (+/- 1 dBi) & 10 dBi  (+/- 1 dBi)

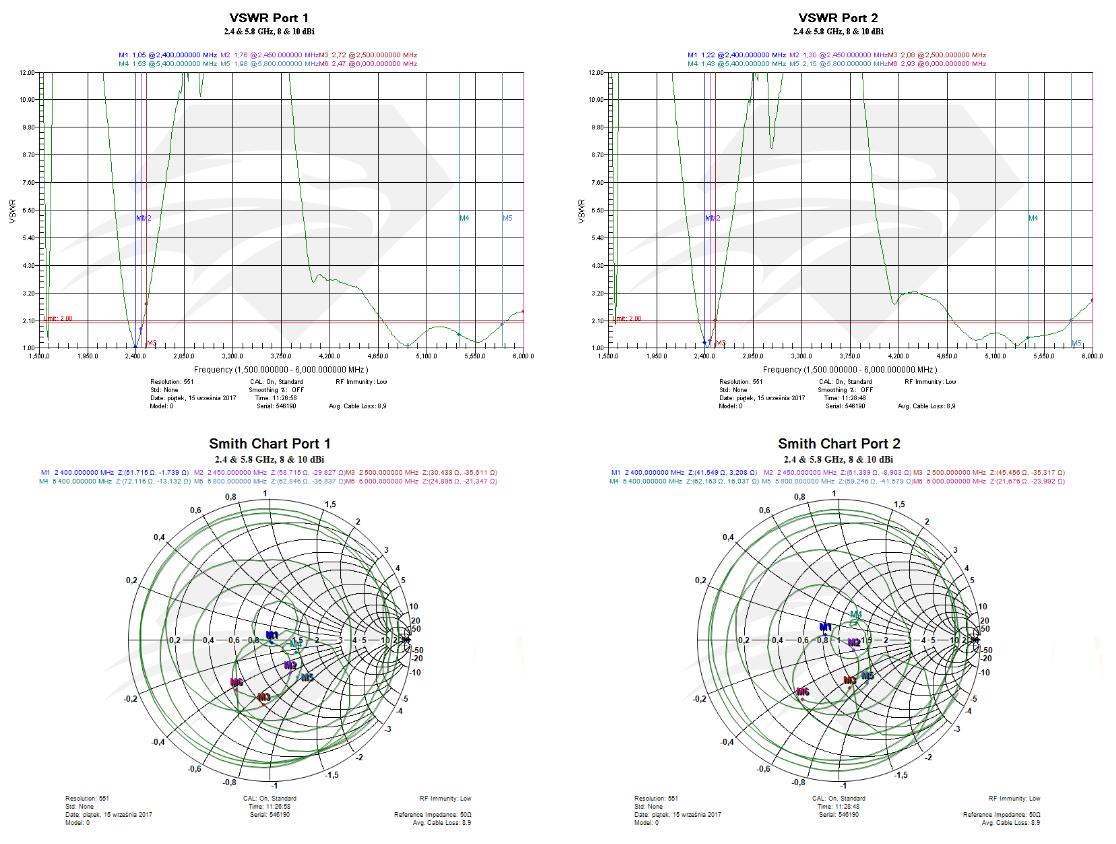

    VSWR
    Port 1:   < 1.50  (max. < 2.15)
    Port 2:   < 1.50  (max. < 2.15)

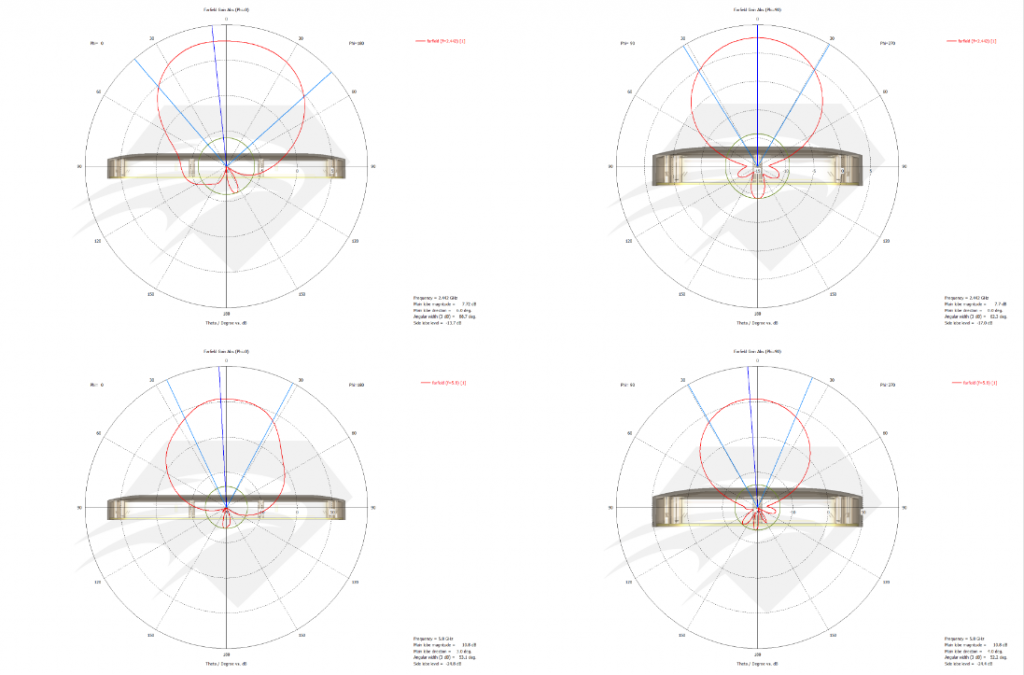

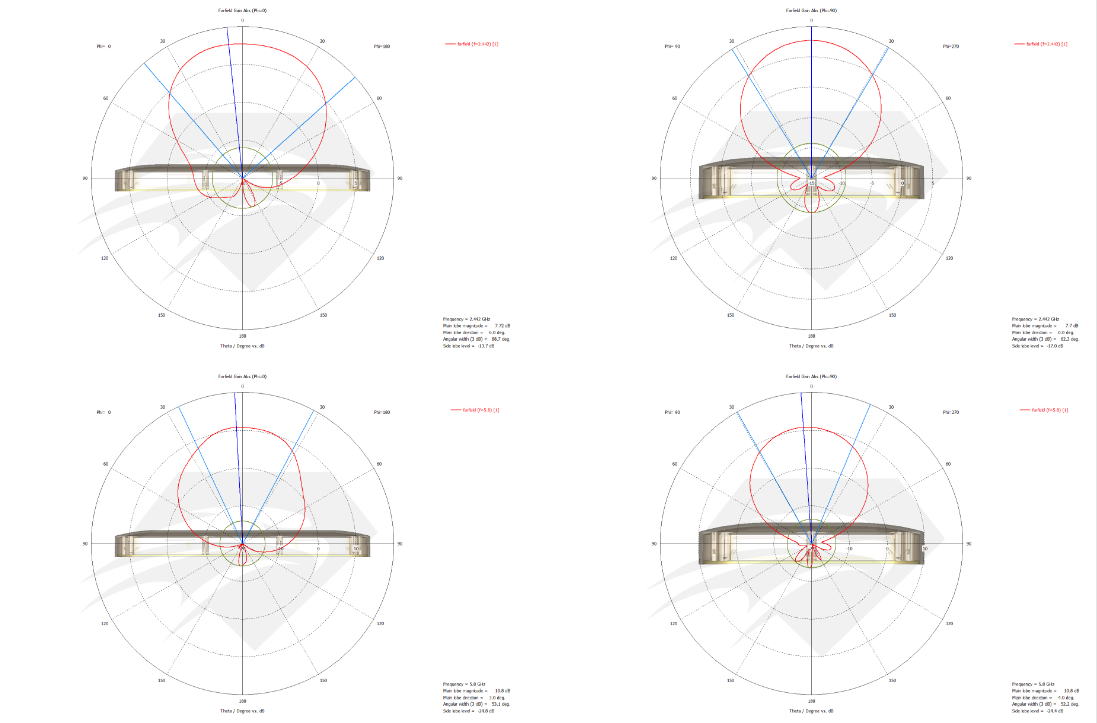

    Beamwidth
    Port 1:    90°/65° & 55°/55°
    Port 2:    90°/65° & 55°/55°
    Polarization
    Port 1:   Vertical
    Port 2:   Vertical
    Impedance
    Port 1:   50 Ω
    Port 2:   50 Ω

    Mechanical parameters

    Material
    Antenna:   Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB
    Mounting:   Stainless steel + paint
    Weight
    ~ 200g (110g Antenna + 90g Mounting)
    Dimensions
    16.1 x 9.1 x 1.7 cm
    6.34 x 3.60 x 0.67 inch
    Connection
    Port 1:   RP-SMA female
    Port 2:   RP-SMA female
    Tilt adjustment
    5 tilt positions, OnClick system
    Mounting type
    QuickAttach



    Brand

    DJI
