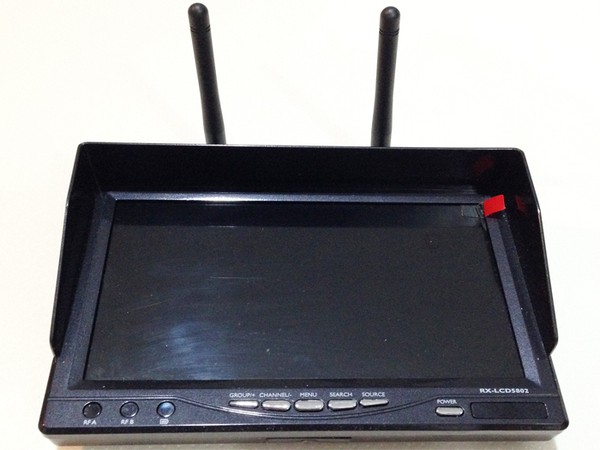

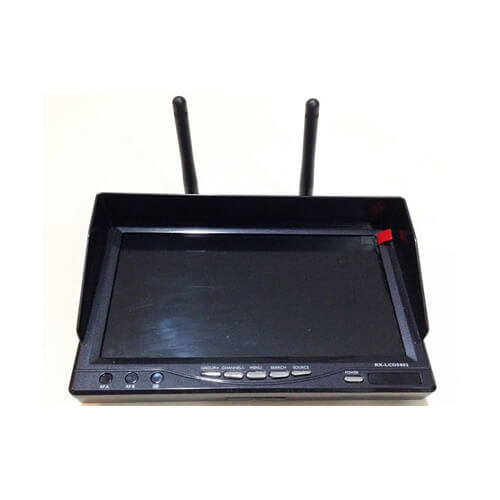

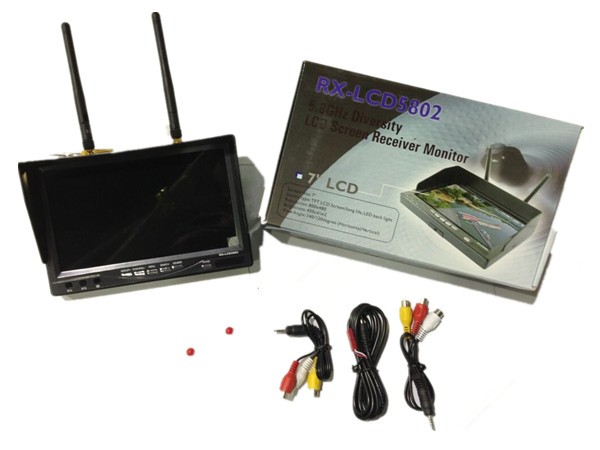

RX-LCD5802 5.8Ghz FPV 7″ DIVERSITY LCD SCREEN RECEIVER MONITOR

ITEM CODE ;106500-AS
LAST UPDATED ;05-09-2020
Bulit-in 5.8Ghz Dual diversity receiver automatically for best reception
Built-in high performance Li-Polymer battery:2450mAH/7.4V
Work status OSD display: RSSI indication, battery indicator;channel indication
- Ask a Question
RX-LCD5802 5.8Ghz FPV 7" DIVERSITY LCD SCREEN RECEIVER MONITOR
AED 850Ask a Question
Specification:
– Built-in 5.8Ghz Dual diversity receiver automatically for best reception
– Built-in 2CH 5.8Ghz AV output and 1CH AV input
– Built-in high performance Li-POLYMER Battery: 2450mAH/7.4V
– Work status OSD display : RSSI indication ; Battery indicator; Channel indication
– A key to automatic signal search
– Support Chinese and English menu
– Size: 180mm x 120mm x 50mm(Note: Sunshield height: 28mm)
– Working Voltage: DC 7~16V
– Power Consumption: 650 mA @12V
– Builti-in battery version
– Battery charging current : 850mA @12V ( max )
– Working temperature: -10℃~+ 65 ℃
Features:
– Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching
– Dual buffered AV outputs
– Can receive 2 different channels at the same time
– Not affect by 2.4GHz R/C Radios
– AV Receiver with Diversity inputs
– Small, light weight, durable
– 4 Bands and total 32 Channels
– Built-in battery , easy to carry and outdoor use
– A key to automatic signal search, Simple operation
– Work status OSD display: Always be aware of the device working condition.
Display Parameters:
– Screen size: 7”
– Screen type: TFT LCD Screen/long life, LED backlight
– Resolution: 800*480
– Brightness: 450cd/m2
– View Angle: 140/120degree (Horizontal/Vertical)
