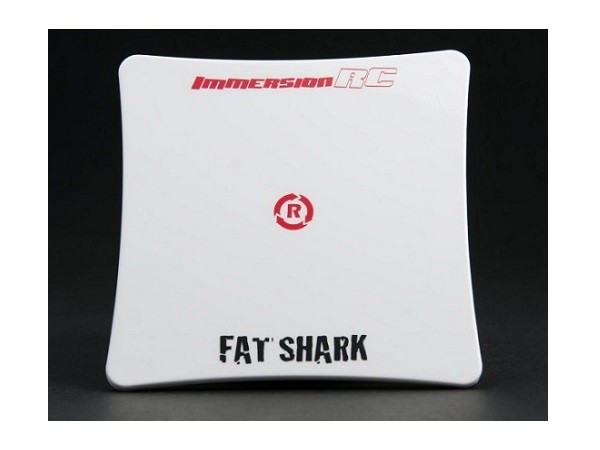

IMMERSION RC SpiroNet 5.8GHz PATCH ANTENNA RHCP

ITEM CODE 106500-AS
LAST UPDATED;05-09-2020
Be the first to review this product
(SN5G8RHPATC)
This 5.8GHz Right-Hand (RHCP) Circular Polarized patch antenna was custom-designed, with no expense spared, for the FPV market. Light enough to be mounted directly onto an LCD headset, or directly onto the front of one of our Uno, or Duo receivers.
- Ask a Question
IMMERSION RC SpiroNet 5.8GHz PATCH ANTENNA RHCP
AED 400Ask a Question
This 5.8GHz Right-Hand (RHCP) Circular Polarized patch antenna was custom-designed, with no expense spared, for the FPV market. Light enough to be mounted directly onto an LCD headset, or directly onto the front of one of our Uno, or Duo receivers.
- Precision manufactured with very tight tolerances, *each antenna* is 100% tested on a professional antenna tester (Rhode & Schwartz) to ensure maximum range and performance.
- SMA male connector compatible with all FatShark/ImmersionRC 5.8GHz products sold to date.
- Right-Hand circular polarization
- 5.8GHz ISM Band
- 13dBi gain
- Beam width 35 degrees (H + V)
- F/B Ratio 26dB
- VSWR < 1.5:1 (5740 – 5860MHz)
- Impedance 50ohms
