Raptor XR Designed for DJI Phantom 4 Pro V2.0

Features:
- Maximize performance
- Concurrent dual band 2.4 & 5GHz
- QuickAttach mounting system
- Adjustable tilt of the range extender
- Dedicated pigtails
- No drilling required
- No modification to the drone itself
- Long range extension without external boosters
- Design does not contain any removable parts

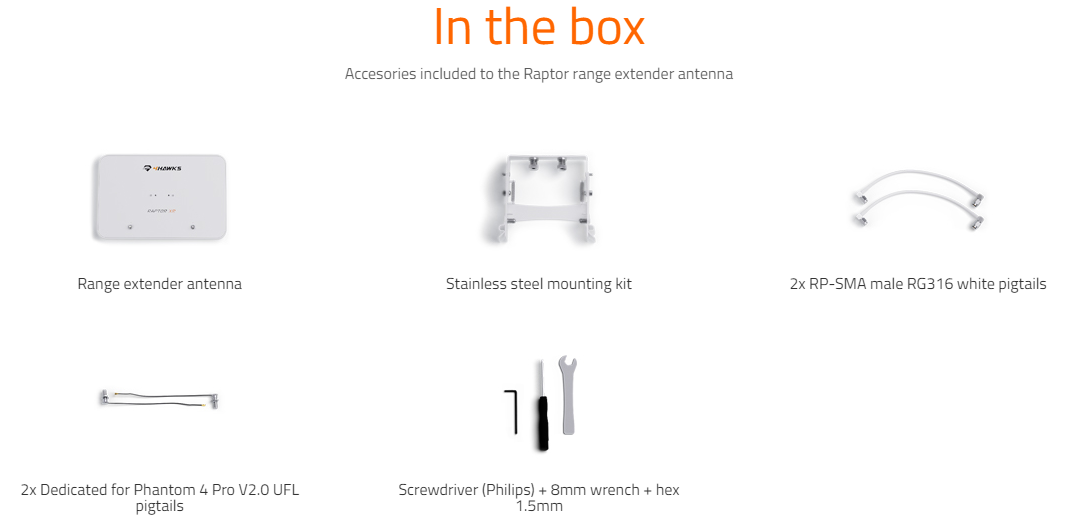

- Complete solution
- Ask a Question
Raptor XR Designed for DJI Phantom 4 Pro V2.0
AED 922Ask a Question
Item Code: G105600G-A
Last updated: 08-08-2020
DJI Phantom 4 Pro V.20 is a model designed for professionals. The basic kit allows for 30 minutes of uninterrupted flight, maximum speed of 72km/h.
With 4Hawks range extender antenna ability to work at 2 frequencies at the same time, DJI Phantom 4 Pro V2.0 receives a great boost to its overall performance, by enhancing signal from oblique antenna signals that ignore noise exceptionally well – this in return allows Phantom 4 Pro V2.0 to maximize its range in noisy areas. What’s more 4Hawks antenna also increases the range of DJI Phantom 4 Pro V2.0 significantly, so the drone can reach even further than ever before.
Last but not least, with 4Hawks range extender, the video quality is always glitch free, thanks to a strong, uninterrupted signal.
Specification
Electrical parameters
Port 2: 2.40 – 2.50 GHz & 5.00 – 5.80 GHz
Port 2: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi)

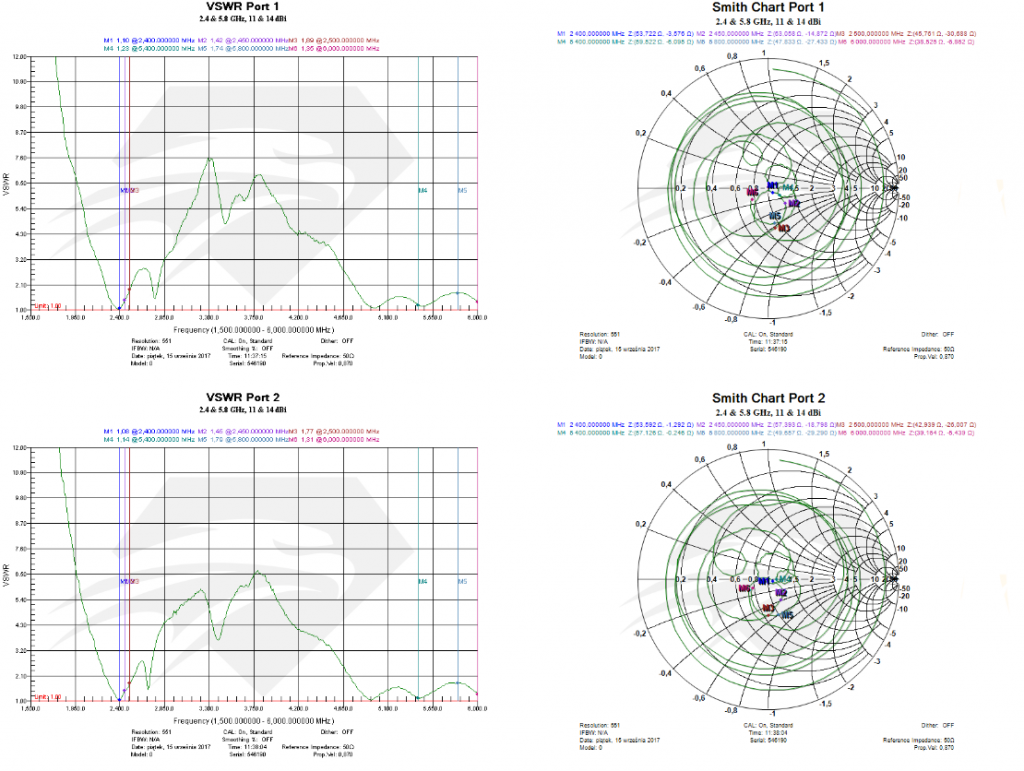

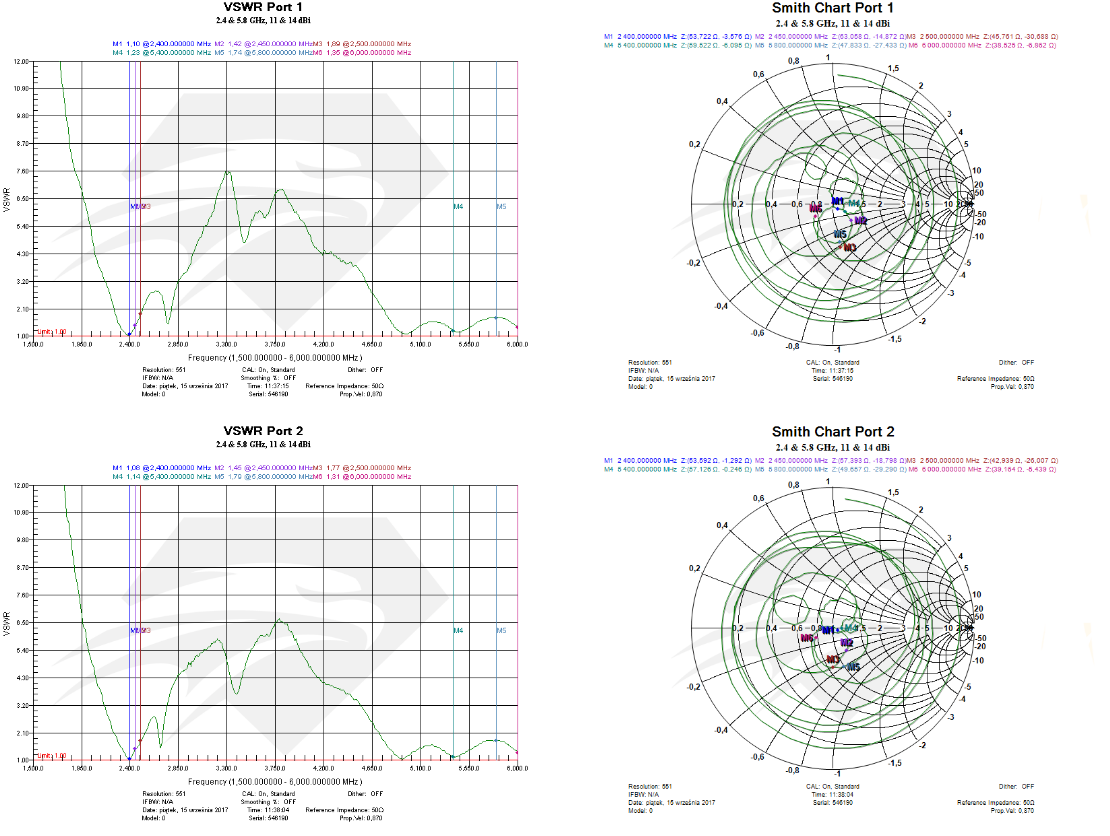

Port 1: < 1.50 (max. < 2.00)
Port 2: < 1.50 (max. < 2.00)

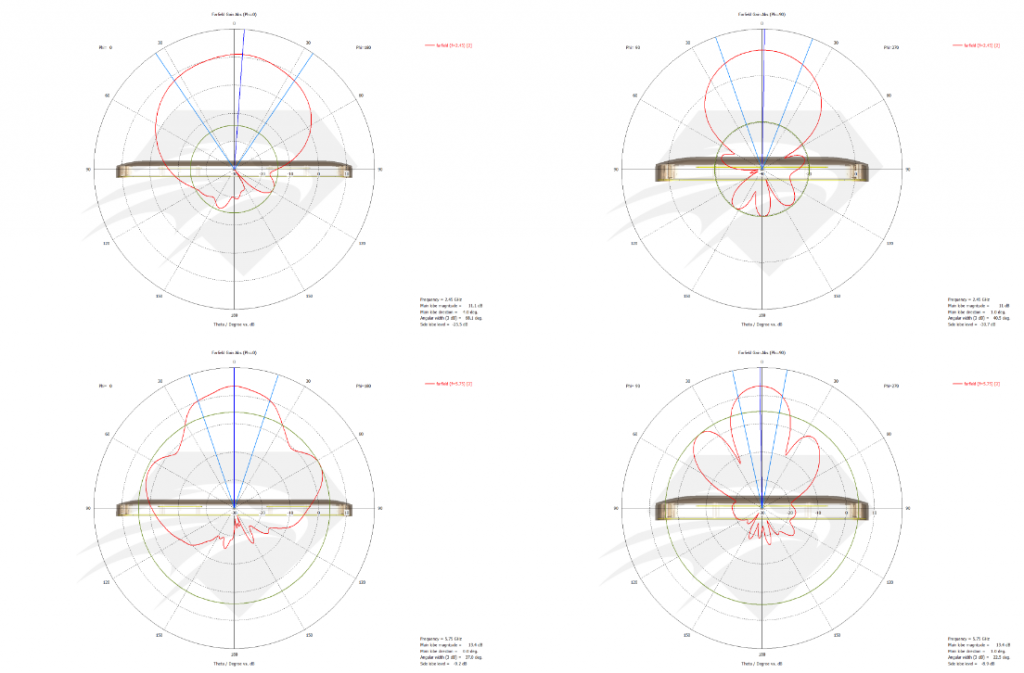

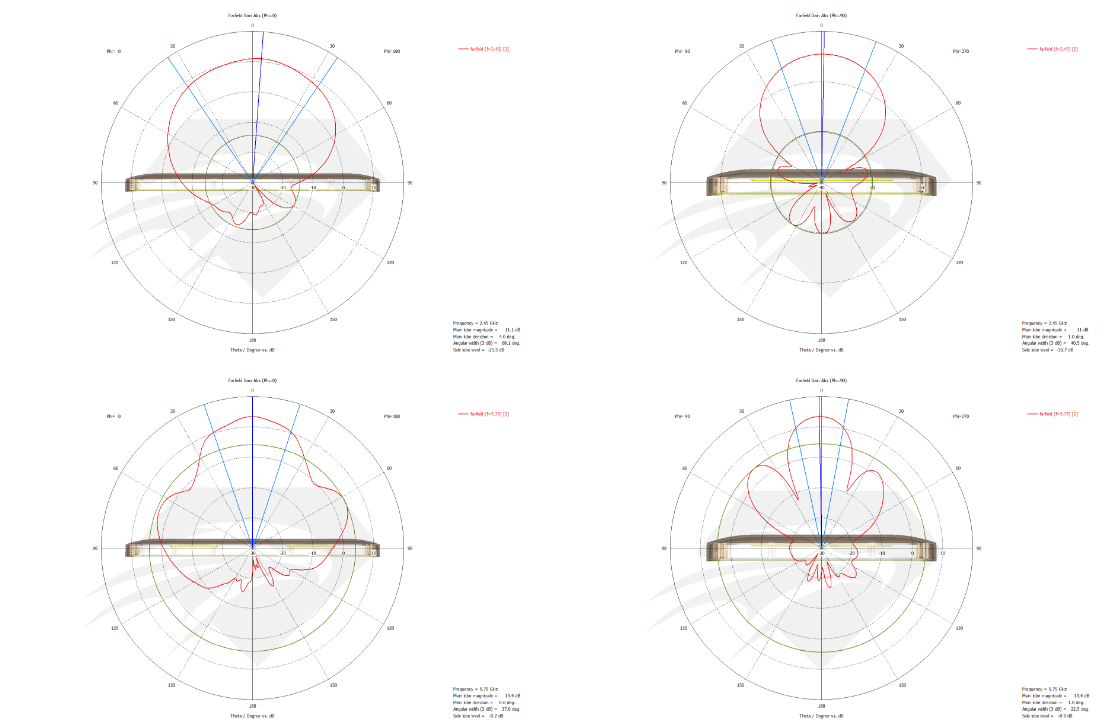

Port 2: 70°/40° & 40°/25°
Port 2: Vertical
Port 2: 50 Ω
Mechanical parameters
Mounting: Stainless steel + paint
11.50 x 7.16 x 0.83 inch
Port 2: RP-SMA female
