Raptor XR Designed for DJI Mavic 2 series

Last Sold  4 sold in last 18 hours

Item Code: G1056TA

Last updated: 06/06/2023

  • Maximize performance
  • Concurrent dual band 2.4 & 5GHz
  • No modification to the drone itself
  • Long range extension without external boosters
  • Design does not contain any removable parts
  • Complete solution
  •  Ask a Question

    Raptor XR Designed for DJI Mavic 2 series

    Ask a Question

      Estimated Delivery: May 22 – May 24
      ... people are viewing this right now
    Compare
    Guaranteed Safe Checkout

    Specification

    Designed for drone enthusiasts, Dji Mavic 2 is perfect for holiday trips. Its long range allows its user to reach places that were earlier completely inaccessible, such as deep forests, canyons, lakes etc. The built-in camera allows recording videos in 4k.

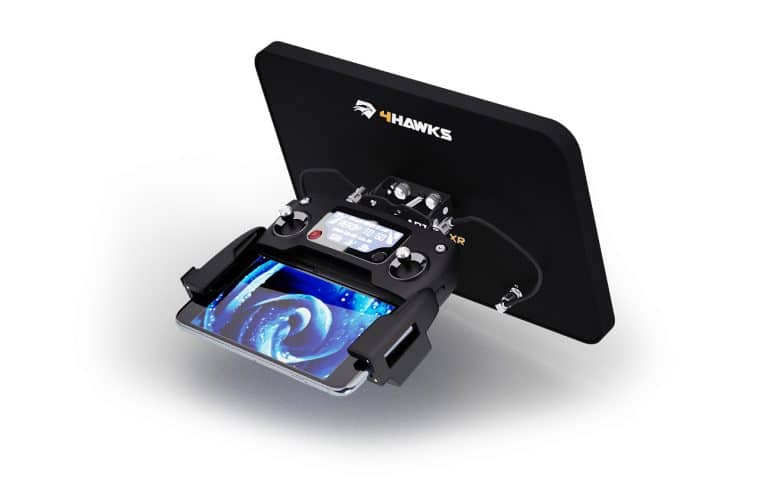

    4Hawks antenna for Dji Mavic 2 model is highly advanced, operating in both 2.4GHz as well as 5GHz frequencies The concept behind the look of the antenna was to make it look like it was a part of the drone by default. Entire construction is 100% UV protected to assure longevity of the equipment. Additionally, part of the construction is made of aluminum to make the whole construction as light as possible. Mounting is made of stainless steel for rock solid stability. Mounting the range extender leads to permanent changes with the remote controller. The entire set is lightweight and uniform (without any loose equipment pieces). Changing the direction of the antenna shouldn’t cause any difficulties, as the system was designed in a way that allows quick position change with just a single “click”. This way you can be sure that you do not lose the connection with your drone.



    Electrical parameters

    Frequencies
    Port 1:   2.40 – 2.50 GHz & 5.00 – 5.80 GHz
    Port 2:   2.40 – 2.50 GHz & 5.00 – 5.80 GHz
    Gain
    Port 1:   11 dBi  (+/- 1 dBi) & 14 dBi  (+/- 1 dBi)
    Port 2:   11 dBi  (+/- 1 dBi) & 14 dBi  (+/- 1 dBi)
    VSWR
    Port 1:   < 1.50  (max. < 2.00)
    Port 2:   < 1.50  (max. < 2.00)
    Beamwidth
    Port 1:   70°/40° & 40°/25°
    Port 2:   70°/40° & 40°/25°
    Polarization
    Port 1:   Vertical
    Port 2:   Vertical
    Impedance
    Port 1:   50 Ω
    Port 2:   50 Ω

    Mechanical parameters

    Material
    Antenna:   Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB
    Mounting:   Stainless steel + paint
    Weight
    ~ 520g (450g Antenna + 70g Mounting)
    Dimensions
    29.2 x 18.2 x 2.1 cm
    11.50 x 7.16 x 0.83 inch
    Connection
    Port 1:   RP-SMA female
    Port 2:   RP-SMA female
    Tilt adjustment
    3 tilt positions, OnClick system
    Mounting type
    On SMA connectors (Permanent)

    Brand

    DJI
