Raptor SR Designed for DJI Phantom 4 & 4 Adv

Last Sold  3 sold in last 12 hours

Item Code: G1056TA

Last updated: 08/06/2023

  • QuickAttach mounting system
  • Adjustable tilt of the range extender
  •  Ask a Question

    Raptor SR Designed for DJI Phantom 4 & 4 Adv

    AED 640

    Ask a Question

      Estimated Delivery: Apr 22 – Apr 24
      ... people are viewing this right now
    Compare
    Guaranteed Safe Checkout

    AED 640

    +

    Specification

    Last DJI Phantom series, Dji Phantom 4 & 4 Advanced are models that allow long continuous enjoyment. It is perfectly capable of flying long distances, however its maximum range may vary depending on the area, especially noisy ones. With its fast maximum speed of 65 km/h and flight time of 30 minutes, Phantom 4 is an incredible drone in terms of its capabilities. With ability to record 4k videos, it is a great choice for perfectionists seeking good recordings.
    4Hawks antenna for Dji Phantom 4 Advanced model is operating in 2.4GHz with 9 dBi gain. The antenna is not bothering the user since it’s supposed to look like it was a part of a remote controller from the start. Entire construction is 100% UV protected ABS to assure longevity of the equipment. Additionally, parts of the construction are made from, aluminum to make the construction lightweight. Mounting is made of stainless steel for rock solid stability. Mounting the range extender is very easy and doesn’t require professional assistance. The entire set is lightweight and uniform (without any loose equipment pieces). Changing the direction of the antenna shouldn’t cause any difficulties, as the system was designed in a way that allows quick position change with just a single “click” to 5 different positions. This way you can be sure that you do not lose the connection with your drone.

    Specification

    electrical & mechanical parameters of Raptor renge extender.

    Electrical parameters

    Frequencies
    Port 1:   2.40 – 2.50 GHz
    Port 2:   2.40 – 2.50 GHz
    Gain
    Port 1:   9 dBi  (+/- 1 dBi)
    Port 2:   9 dBi  (+/- 1 dBi)

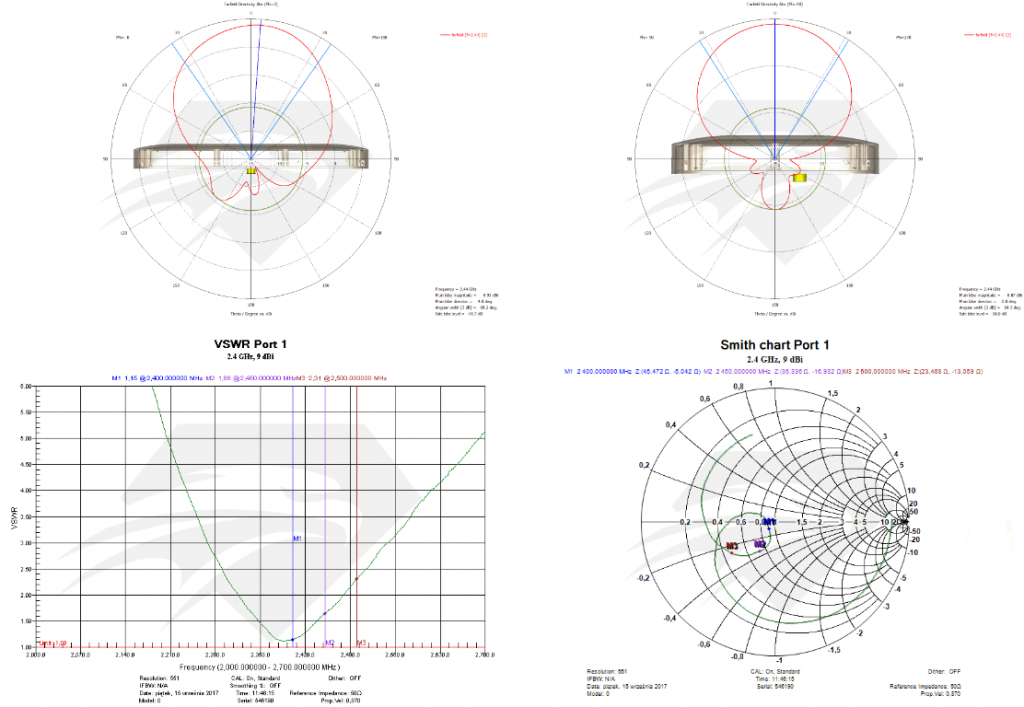

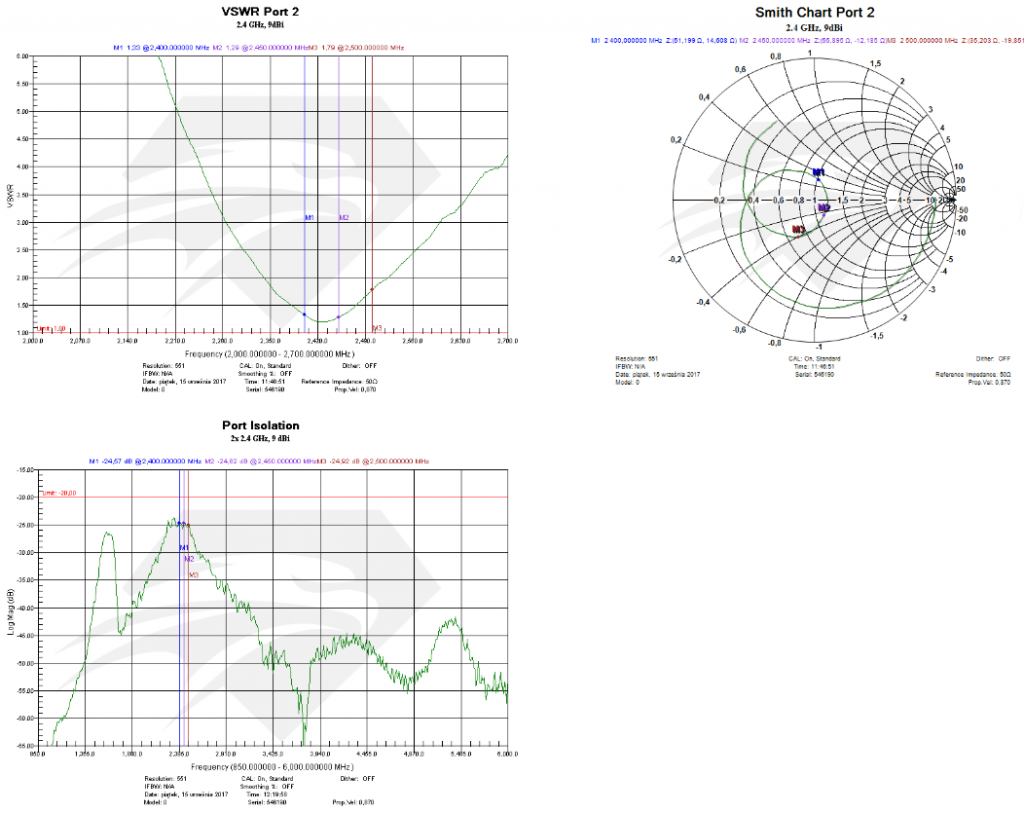

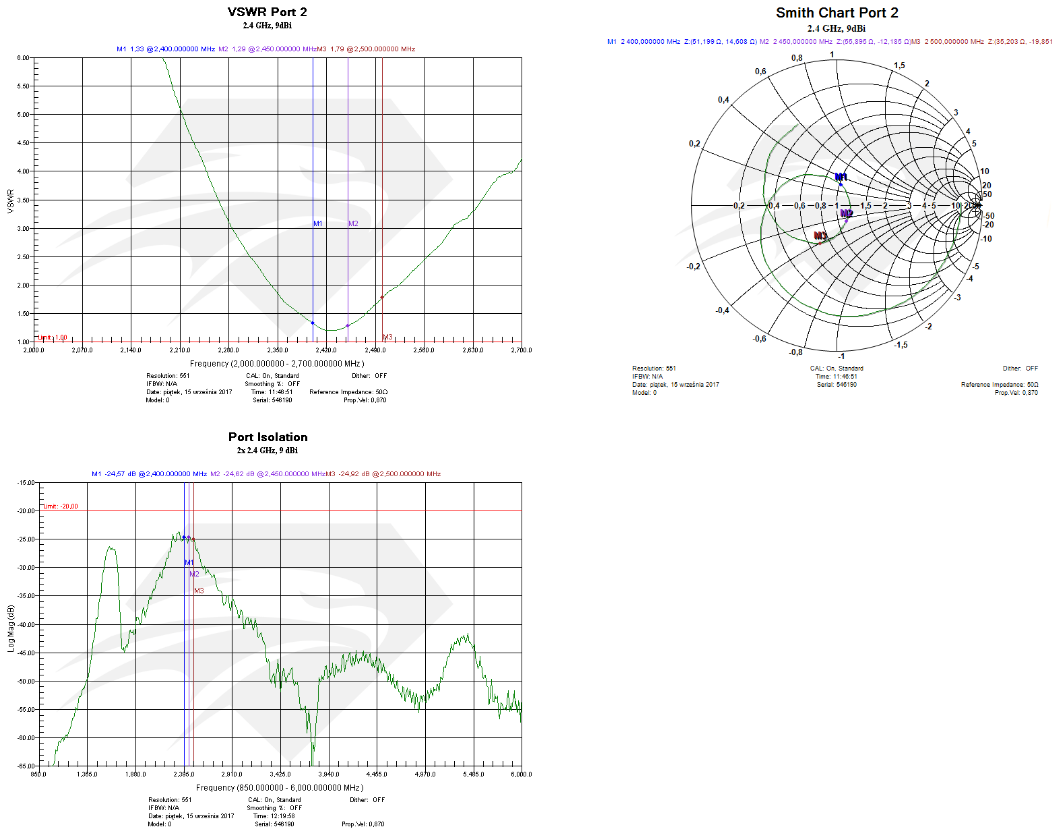

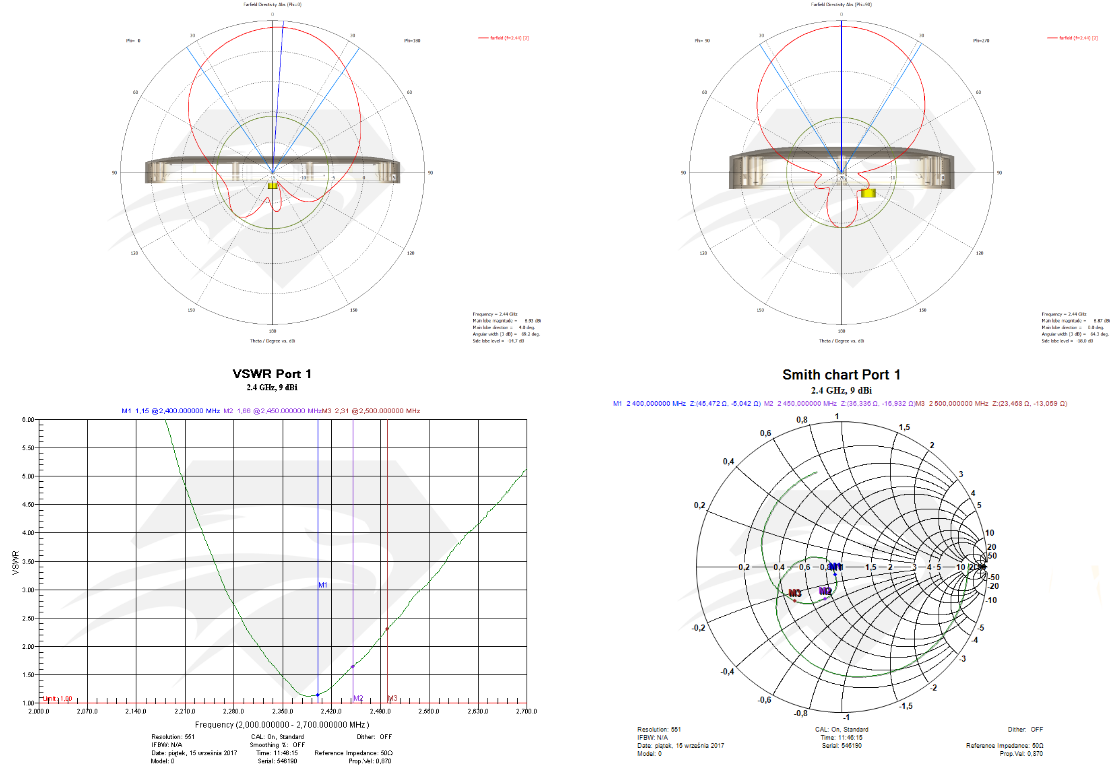

    VSWR
    Port 1:   < 1.50  (max. < 2.30)
    Port 2:   < 1.50  (max. < 2.30)
    Beamwidth
    Port 1:   70°/65°
    Port 2:   70°/65°
    Polarization
    Port 1:   Vertical
    Port 2:   Vertical
    Impedance
    Port 1:   50 Ω
    Port 2:   50 Ω

    Mechanical parameters

    Material
    Antenna:   Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, FR4 PCB
    Mounting:   Stainless steel + paint
    Weight
    ~ 200g (110g Antenna + 90g Mounting)
    Dimensions
    16.1 x 9.1 x 1.7 cm
    6.34 x 3.60 x 0.67 inch
    Connection
    Port 1:   RP-SMA female
    Port 2:   RP-SMA female
    Tilt adjustment
    5 tilt positions, OnClick system
    Mounting type
    QuickAttach



    Brand

    DJI
