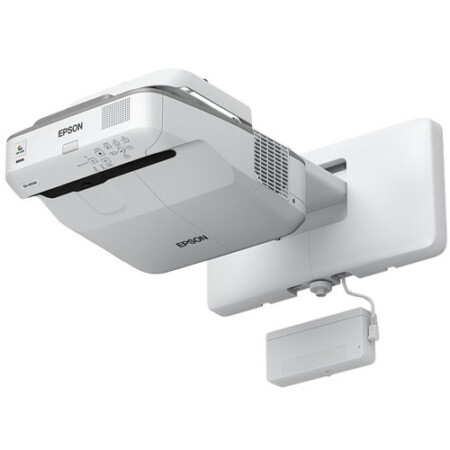

Epson EB 695Wi Ultra Short Throw Interactive WXGA 3LCD Projector

Specifications:

PRODUCT NAME	Epson EB-695Wi
PRODUCT CODE	V11H740553
TECHNOLOGY
Projection Technology	Epson 3LCD, 3-chip technology
Projection System	RGB liquid crystal shutter projection system
LCD Panel	0.59-inch with (D9, C2 Fine)
OPTICAL
Zoom Ratio	1.0 - 1.35 (Digital Zoom)
Screen Size (Projection Distance)	60" to 100" [35.4 to 60.1cm] 74.3" screen 44.3cm
Throw Ratio	0.28 (Zoom:Wide) 0.37 (Zoom:Tele)
Projection Lens Type	No Optical Zoom / Focus (Manual)
Projection Lens F Number	1.6
Projection Lens Focal Length	3.7 mm
Focus Method	Manual Focus
Offset	5.8:-4
White Light Output	3,500 lumens
Colour Light Output	3,500 lumens
Resolution	WXGA
Native Aspect Ratio	16:10
Contrast Ratio	14,000:1
Keystone Correction	Vertical: -3 to +3 degrees Horizontal: -3 to +3 degrees
Colour Reproduction	Up to 1.07 billion colours
Colour Processing	10 bit

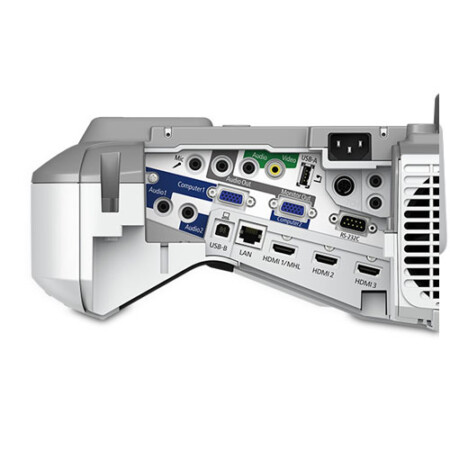

CONNECTIVITY
Video I/O - Input	2x RGB D-sub 15pin *Computer 2 in common with Monitor Out 1x RCA Composite
Video I/O - Output	1x RGB D-sub 15pin *Computer 2 in common with Monitor Out (Output signal : Computer 1 only)
Digital Input	3x HDMI (1 supports MHL)
Audio I/O - Input	3x Stereo mini
Audio I/O - Output	1x Stereo mini
Mic I/O - Input	1x Stereo mini
Control I/O	1x RS-232C D-sub 9pin Interactive sync stereo mini - 1x In, 1x out Touch Unit control - 1x Min DIN 8pin
USB I/O	1x USB Type A (for USB Memory, USB Document Camera, Firmware update, Copy OSD settings) 1x USB Type B (for USB display, mouse, K/B, Control, Firmware update, Copy OSD settings)
Network I/O:	1x RJ45 (100Mbps) Wired LAN 1x USB Type A (for Optional ELPAP10 LAN unit)
Wireless Connectivity	Optional ELPAP10 Wireless LAN unit
Speaker Output	Monaural: 16 W x 1
ADVANCED FEATURES
EasyMP Network Projector control and projector management via network	Yes
AMX Device Discovery	Yes
Crestron Integrated Partner	Yes
Crestron RoomView	Yes
Extron IP Link	Yes
Control4	Yes
EasyMP Network Multi PC Projection	Yes
Message Broadcasting	Yes
Easy Interactive Function	Supported screen size - 60"-100" Supports multiple screens Technology - Infrared Input devices: Digital Pen (Easy Interactive Pen 1,2), Finger (1-6 fingers) Calibration: Pen: Auto / Manual (25points), Finger: Manual (16 points)
Finger Interactive Unit	Dimension: 210x95x51mm Weight: 450g Technology: Infrared laser (class 1) Adjustment: Yes (manual) Control I/O: 1x Min DIN 8pin Security: Kensington® - lock provision
PC Interactive Tool	Multiple pen/finger support: Yes (with Easy Interactive Tools Ver.4.20) Easy Interactive Pen: Up to 2. Finger: Up to 6
PC Free Annotation Tool	Multi-pen support: Yes Easy Interactive Pen: Up to 2. Finger: Up to 2 Whiteboard function Projector operation
Firmware update	Network via LAN cable, USB A via USB thumb drive, USB B via USB cable
Copy OSD settings	Network via LAN cable, USB A via USB thumb drive, USB B via USB cable
Quick Wireless Connection	Yes
Wireless LAN Security	WPA/WPA2-Personal (with optional Wireless LAN Unit)
Instant Off	Yes
Direct Power On	Yes
Auto Power On	Yes (Computer1,USB-B)
Security	* Kensington® - lock provision * Padlock & Security cable hole * Wireless LAN unit lock * Password protect function (Power On, Network, Protection of User logo)
Colour Modes	Dynamic, Presentation, Cinema, sRGB, BlackBoard
Integrated Mount	Optional (ELPMB46)
GENERAL
Dimensions (excl feet) WxDxH	367 x 400 x 149mm
Weight	5.8kg
Lamp Warranty	1 Year (or 750 hours)*
Projector Warranty	3 Years
Lamp Hours	5,000 hours (Normal) 10,000 hours (ECO)
Lamp Type	250W UHE
Power Consumption: Lamp On	354W (Normal) 309W (ECO)
Power Consumption: Networked Standby	2.3W
Power Consumption: Energy Saving	0.37W
Air Filter maintenance cycle	up to 10,000 hours
Fan Noise Level	35dB (Normal) 30dB (ECO)
* Whichever comes first. For more information visit Epson Projector Warranty
WHAT'S IN THE BOX
Main Unit	EB-695Wi Projector
Power Cable	Yes 5M
USB Cable	Yes 5M
Remote Control	Yes
Battery for Remote Control	AA x 2
Setting Plate	Yes
Easy Interactive Pen	2 Pens
Battery for Easy Interactive Pen	AA x 2
Pen Tray	Yes
Pen tip (Soft)	x4
Pen tip (Hard)	x2
Pen tip Holder	Yes
Light Curtain Finger Touch Unit	Yes
Feet for main unit	No
Password Protect sticker	Yes
PRODUCT OPTIONS	Description
	Lamp ELPLP91
	Air Filter ELPAF49
	USB Extention cable ELPKC31
	Wall Mount ELPMB46
	Table Mount ELPMB29
	External speakers ELPSP02
	Wireless LAN ELPAP10
	Document Camera ELPDC21
	Easy Interactive Pen 1 (Orange) ELPPN05A
	Easy Interactive Pen 2 (Blue) ELPPN05B
	Replacement Hard Pen Tips ELPPS03 for ELPPN05(New: Hard)
	Replacement Soft Pen Tips ELPPS04 for ELPPN05(New: Soft)
	Control Box ELPCB02
