D Link DGS-F3008P-4S Industrial Switch

Last Sold  4 sold in last 5 hours

Last updated: 04-10-2023

Item code: G1235GA

  • 8 10/100/1000Base-Tx RJ45 PoE ports, 2 1000Base-X SFP port
  •  Ask a Question

    D Link DGS-F3008P-4S Industrial Switch

    Ask a Question

      Estimated Delivery: May 24 – May 26
      ... people are viewing this right now
    Compare
    Guaranteed Safe Checkout

    Description:

    The DGS-F3000 Series Layer 2 Gigabit Outdoor Smart Managed Switches are equipped with 4 or 8 100/1000BASE-T PoE ports & 2 or 4 SFP ports respectively. These switches feature a robust design making them ideal for deployment in Outdoor surveillance , capable of withstanding the harshest environment. The DGS-F3000 Series furthermore integrates advanced management and security functions to provide a complete solution.

    Durable Design:
    The DGS-F3000 Series switches are housed in a highly resistant IP30-rated metal casing to protect the switches from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects the DGS-F3000 Series from unwanted eects when operating in environments with strong electromagnetic interference. Meanwhile, the fanless design extends the life of DGS-F3000 Series while also being able to operate in a wider temperature range of up to 70 °C For increased exibility, the DGS-F3000 Series can also be mounted on a DIN rail or wall mounted.

    High Redundancy and Reliablity:
    The DGS-F3000 Series support ERPS <50 ms quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment environments. Meanwhile, the dual power input allows for a redundant power supply to make sure the network continues to operate in the event of a primary power supply failure.

    Advanced Features:
    The DGS-F3000 Series is equipped with advanced security features such as Static MAC, Storm Control, and IGMP Snooping. Static MAC allows users to create a MAC whitelist for specific ports, helping administrators limit network access to authorized devices only. Storm Control monitors broadcast, multicast, or unknown unicast traffic and will start blocking or discarding packets which could flood the network when the defined threshold is exceeded. IGMP Snooping can reduce the load of L3 multicast routers and save bandwidth in network throughput.

    Easy Troubleshooting:
    The DGS-F3000 Series features loopback detection and cable diagnostics to help network administrators and and solve network problems quickly and easily. Loopback detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable diagnostics helps network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.

    Power over Ethernet Support:
    The DGS-F3000 series switches are PoE-ready switches (PoE models only) & can provide total PoE budget up to 60W on DGS-F3004P-2S & 120W on DGS-F3008P-4S, capable of supplying up to 30 W of power per port to connected PoE-enabled devices. This effectively reduces deployment times, reduces cable clutter, and eliminates the need for dedicated power supplies to allow PoE- devices to be installed in remote locations.

    Hardware Specifications:

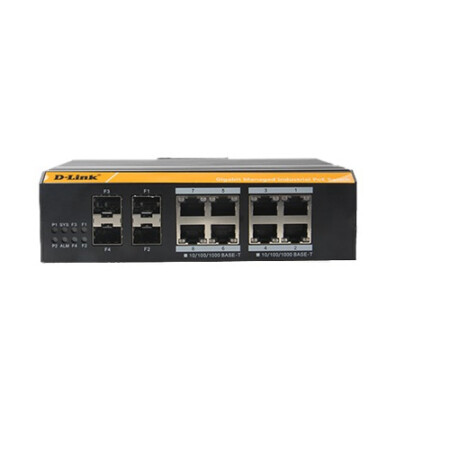

    Port 8 10/100/1000Base-Tx RJ45 PoE ports, 2 1000Base-X SFP port
    DIP Switches VLAN (port isolation), Extend, PoE (PD-Alive), QoS

    Indicator

    Power, System, Alarm, Link & Act, PoE

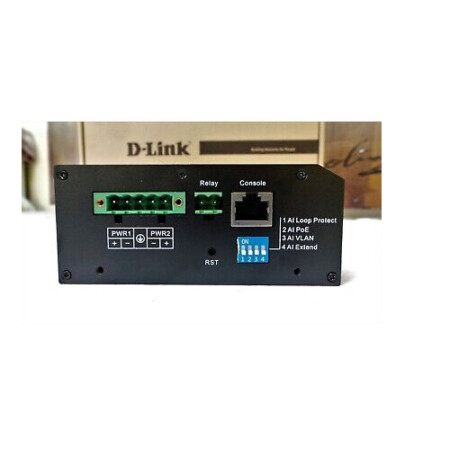

    Power supply Input voltage: 48-56VDC Input method: plug-in 5-core 5.08mm pitch terminal block Support dual DC power backup, built-in over current protection Power supply anti-reverse connection
    Power consumption
    No-load power: 6W@52VDC, Full load power: 96W@52VDC
    Physical characteristics   Housing: IP40 grade protection, Installation: DIN rail mounting

    Dimensions (L × W × H): 163mm×46.5mm×110mm, Weight: 1.0kg

    Industry Standard EMI: FCC CFR47 Part 15, EN55022/CISPR22, Class A EMS: IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air) IEC61000-4-3 (RS): 10V/m (80MHz-2GHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port:±2kV/DM, ±4kV/CM; Data Port: ±6kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC60068-2-6 (Vibration), IEC60068-2-27 (Shock) IEC60068-2-32 (Free Fall)
    Working environment Working temperature:-40?75° C, Storage temperature: -40?75° C Relative humidity: 5%?95%(no condensation)
    Certification
    CE, FCC, ROHS
    Warranty
     3 years


    Software specification


    Standards   IEEE 802.3: Ethernet Media Access Control (MAC) Protocol IEEE 802.3x: Flow control, IEEE 802.3af/at IEEE 802.1p, IEEE 802.1q, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w IEEE 802.3i, IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3ad
    Exchange characteristics   MAC address: 8K, Port Cache: 2Mbit 100 Mbps forwarding speed: 148810pps Gigabit forwarding speed: 1488100pps Transmission method: store and forward Backplane bandwidth: 20Gbps Switching Delay: <5us, Mean time between failures: 360,000 hrs.
    DHCP DHCP relay, DHCP Snooping
    VLAN 4K VLAN, 802.1Q VLAN, MAC VLAN , IP VLAN, Voice VLAN
    MAC address table

    Support MAC auto learning & aging, Support static, dynamic

    Safety features   Password protection, Support IP source protection, DoS protection
    Support user access based on port number, IP address, and MAC address, DHCP Snooping and DHCP attack protection
    HTTPS, SSL V3, TLS V1, SSH V1/V2, IP-MAC-PORT ternary binding
    Support 802.1X authentication, AAA, Port isolation, CPU protection
    POE management Support PoE power limit and POE chip status view
    Support setting PoE port priority, PoE power supply time period
    QoS Support 8 port queues
    Support port priority, 802.1P priority, DSCP priority
    Support SP, WRR, SP+WRR, Equ priority scheduling algorithm
    Spanning tree   Support STP(IEEE 802.1d), RSTP(IEEE 802.1w), MSTP(IEEE 802.1s)

    Support root bridge protection, TC protection, BPDU protection

    Multicast Support IGMP v1/v2 Snooping, Support fast leave mechanism

    Multicast filtering, packet statistics, unknown multicast discards

    Storm suppression   Support multicast suppression, broadcast suppression
    Support unknown unicast suppression
    Link aggregation   Support static aggregation, dynamic aggregation
    Support IP, MAC and hybrid load balancing modes
    Support up to 32 aggregation groups
    IPv6 Support IPv6 Ping, IPv6 Tracert, IPv6 Telnet, IPv6 SSH , IPv6 SSL
    Management and Maintenance   Support web management (HTTP, HTTPS, SSL V3)
    Support CLI (Telnet, SSH V1/V2, local serial port), SNMP V1/V2/V3
    LLDP, RMON, System log, Ping, Tracert detection, cable detection
    Support CPU monitoring, memory monitoring, Traffic Statistics
    Device Management Web GUI login:IP address: 192.168.254.1 Console login:Baud Rate: 115200

    Brand

    D-LINK
