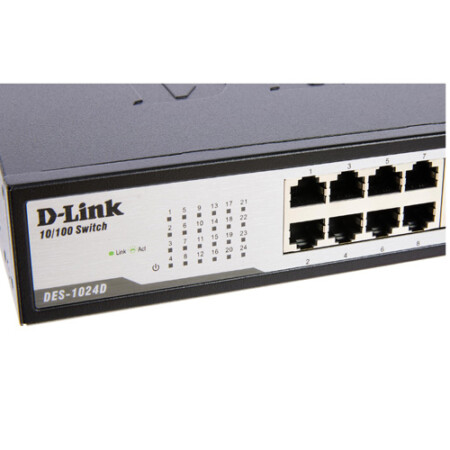

D Link DES1024D 24-Port Fast Ethernet Unmanaged Desktop Switch
2 sold in last 6 hoursLast updated: 04-10-2023
Item code: G1235GA
Overview:
With the D-Link 24-Port Fast Ethernet Unmanaged Switches, you can easily expand your business or home network by adding more computers and devices, each achieving speeds up to 200 Mbps per port in full-duplex mode. Quickly and securely connect employees working in small offices with one another and with all of the servers, printers, and other devices they use. High performance and reliable connectivity help speed file transfers and data processing, improve network uptime, and keep your employees connected and productive.
Expand and Upgrade Your Network
The DES-1024D switch offers an economical way for SOHO and small to medium businesses (SMB) to benefit from high-speed networking. It provides twenty-four ports for easy expansion of your network and a quick way to upgrade your network to Fast Ethernet connectivity. The switches speed file transfer times, improve slow and sluggish networks, keep your vital business applications available, and help your employees respond more quickly to customers and each other.
Conserve Energy
The DES-1024D switch helps you conserve energy through IEEE802.3az EEE, which works when both the switch and its link partner are EEE-compliant devices. This power-saving feature automatically puts the switch into a low-power idle state when the switch utilization is zero, allowing you to lower your energy usage and save on your energy costs.
Designed with the Environment in Mind
The DES-1024D switch uses recyclable packaging that helps reduce waste, complying with the WEEE directive. It’s innovatively designed to run cool and quiet without sacrificing performance.
Features:
Green features IEEE802.3az EEE (Energy Efficient Ethernet) RoHS compliant Standards IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) IEEE 802.3az Energy-Efficient Ethernet (EEE) ANSI/IEEE 802.3 NWay auto-negotiation Versatile Support Plug-and-play installation Full/half-duplex for Ethernet/Fast Ethernet speeds IEEE 802.3x Flow Control Technical Specifications General Standards IEEE 802.3 10BASE-T Ethernet (twisted pair copper) IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) ANSI/IEEE 802.3 NWay auto-negotiation IEEE 802.3x flow control IEEE 802.3az EEE function LAN IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX compliance IEEE 802.3x Flow Control support Data Transfer Rates Fast Ethernet 100 Mbps Half-Duplex 200 Mbps Full-Duplex Ethernet 10 Mbps Half-Duplex 20 Mbps Full-Duplex Functionality Port Packet Filtering/Forwarding Rate 148,800 pps for 100 M 14,880 pps for 10 M Swithing Fabric 4.8 Gbps switching fabric Number of Ports 24 10/100Mbps Fast Ethernet ports Network Cables 10BASE-T: UTP CAT 3/4/5/5e (100 m max.) EIA/TIA-586 100-ohm STP (100 m max.) 100BASE-TX UTP CAT 5/5e (100 m max.) EIA/TIA-568 100-ohm STP (100 m max.) Media Interface Exchange Auto MDI/MDIX adjustment for all ports LED Indicators Per port: Link/Activity Per device: Power Transmission Method Store-and-forward MAC Address Table 8K entries per device MAC Address Learning Automatic update Packet Filtering /Forwarding Rates Ethernet: 14,880 pps per port Fast Ethernet: 148,800 pps per port Topology Star Protocol CSMA/CD Physical Dimensions 282 x 150 x 44 mm (11.1 x 5.91 x 1.73 inches) Weight 1.14 kg (2.51 lbs) Power Consumption Standard Power Consumption: 1.17 Watts Maximum Power Consumption: 2.8 Watts Heat Dissipation Maximum Heat Dissipation: 9.5536 BTU/h MTBF 810,880 hours Temperature Operating: 0 to 40 °C (32 to 104 °F) Storage: -10 to 70 °C (14 to 158 °F) Humidity Operating: 10% to 90% non-condensing Storage: 5% to 90% non-condensing Certifications CE FCC ICES-003 BSMI RCM CCC VCCI cUL CB LVDBrand
D-LINK
