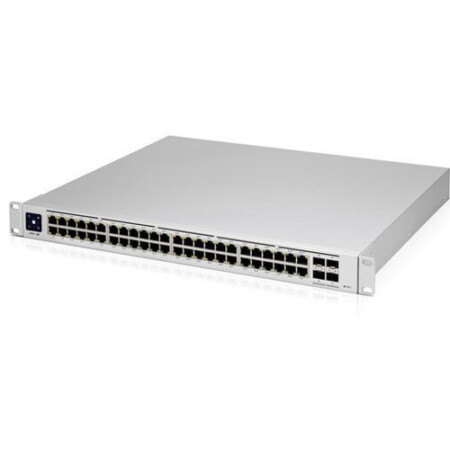

Ubiquiti USW 48 PoE UniFi Switch 48 PoE
1 sold in last 17 hoursLast Updated: 18-11-2023
Item Code: G1235GA
- (8) Gigabit RJ45 802.3bt PoE++ ports
- (40) Gigabit RJ45 802.3at PoE+ ports
- (4) 10G SFP+ ports
Description:
UniFi Switch Pro 48 PoE is a fully managed Layer 3 switch with (8) 802.3bt (PoE++) and (40) 802.3at (PoE+) Gigabit Ethernet ports. (4) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability. The UniFi Switch Pro 48 PoE features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 48 PoE is the ideal access layer switch for any UniFi solution – it combines up to 600W of near-silent PoE power with UniFi SmartPower RPS power redundancy. UniFi Network application and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
- (8) Gigabit RJ45 802.3bt PoE++ ports
- (40) Gigabit RJ45 802.3at PoE+ ports
- (4) 10G SFP+ ports
- Layer 2 and Layer 3 features
- 600W maximum PoE power
- UniFi SmartPower RPS DC input
- Near-silent cooling
- 1.3″ touchscreen display
- Managed with UniFi Network application
Specifications:
- Interfaces Networking: (48) 10/100/1000 RJ45 Ports / (4) 1/10G SFP+ Ethernet Ports
- Management: Ethernet In-Band
- Total Non‑Blocking Throughput: 88 Gbps
- Switching Capacity: 176 Gbps
- Forwarding Rate: 130.944 Mpps
- Universal Input: 100-240VAC/50-60 Hz
- USP RPS DC Input: 52VDC, 11.54A; 11.5VDC, 5.22A
- Power Supply: AC/DC, Internal, 120W
- Supported Voltage Range: 100 to 240VAC
- Max. Power Consumption (Excluding PoE Output): 60W
- Operating Temperature: -5 to 40° C (23 to 104° F)
- Operating Humidity: 10 to 90% Noncondensing
Brand
Ubiquiti
