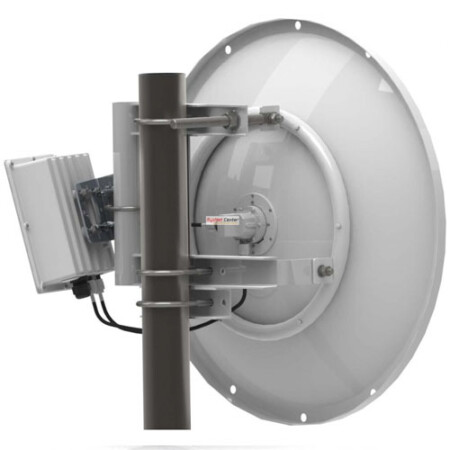

Ubiquiti RD 5G34 airMAX Rocket Dish 5GHz 34 dBI Antenna
1 sold in last 5 hoursLast Updated: 20-11-2023
Item Code: G1235GA
- Frequency Range: 4.9 – 5.8 GHz
- Gain: 4.9 GHz: 30 dBi, 5 – 5.8 GHz: 34 dBi
- F/B Ratio: 42 dB
Estimated Delivery: Nov 30 – Dec 02
... people are viewing this right now
CompareDescription:
AirMAX 2×2 PtP Bridge Dish Antenna Pair the RocketDish with a RocketM BaseStation for Point‑to‑Point (PtP) bridging and network backhauls.
Specifications:
- Frequency Range: 4.9 - 5.8 GHz
- Gain: 4.9 GHz: 30 dBi, 5 - 5.8 GHz: 34 dBi
- HPOL Beamwidth: 3° (3 dB)
- VPOL Beamwidth: 3° (3 dB)
- F/B Ratio: 42 dB
- Max. VSWR: 1.4:1
- Wind Loading: 1,779 N 200 km/h (400 lbf 125 mph)
- Wind Survivability: 200 km/h (125 mph)
- Polarization: Dual-Linear
- Cross-pol Isolation: 35 dB Min.
- ETSI Specification: EN 302 326 DN2
Brand
Ubiquiti
