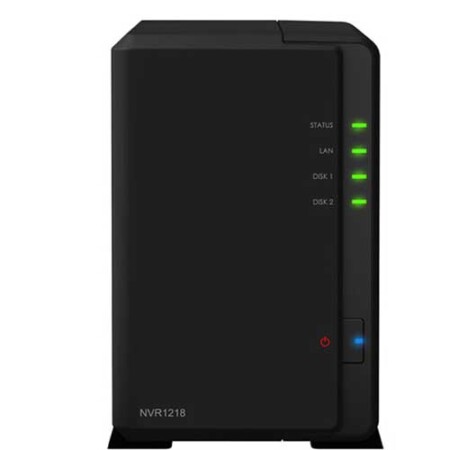

SYNOLOGY NVR1218 12-CHANNEL 1080p NVR (NO HDD)

Specifications:

• CPU Model Embedded NVR SoC
• CPU Architecture 32-bit
• CPU Frequency Dual Core 1.0 GHz
• Memory System Memory1 GB DDR3
• Storage:Drive Bays 2
• Maximum Drive Bays with Expansion Unit 7
• Compatible Drive Type*:3.5″ SATA HDD
• Maximum Internal Raw Capacity 20 TB (10 TB drive x 2) (Capacity may vary by RAID types)
• Maximum Raw Capacity with Expansion Units 70 TB (10 TB drive x 7) (Capacity may vary by RAID types)
• Maximum Single Volume Size 16 TB
• External Ports:USB 2.0 Port2
• USB 3.0 Port 1
• eSATA Port 1
• COM Port 1
• Video Outputs:Video OutputHDMI X 1
• Supported Video Resolution 1080p 60Hz
• Audio Input 3.5 mm Stereo Audio Jack x 1
• Audio Output 3.5 mm Stereo Audio Jack x 1
• RJ-45 1GbE LAN Port 1
• System Fan 80 mm x 80 mm x 1 pcs
• Power Supply Unit / Adapter 60W
• AC Input Power Voltage 100V to 240V AC
• Power Frequency 50/60 Hz, Single Phase
• Power Consumption*:13.64 W (Access), 4.32 W (HDD Hibernation)
• Operating Temperature 5°C to 45°C (40°F to 113°F)
• Adapter Operating Temperature 0°C to 40°C (32°F to 104°F)
• Storage Temperature -20°C to 60°C (-5°F to 140°F)

Description:

All-in-one, stand-alone surveillance solution

Offering an effortless surveillance experience, Synology Network Video Recorder NVR1218 has the ability to display and record up to 12 IP cameras1 while being extremely energy-efficient.

1080p HDMI output for local display

Watch surveillance feeds and manage cameras/recordings without using a computer. NVR1218 is equipped with a dedicated HDMI output providing 1080p display resolution on a monitor, while supporting 720p at up to 12 channels/30FPS.

Flexible deployment

Setup and deploy NVR1218 in remote or secure locations with no external network access required2. The support for Point of Sales (POS) systems allows NVR1218 to be integrated with transaction systems to enable video indexing capability against transaction records.

Expandable recording storage, up to 7 drives

NVR1218 can be connected to Synology DX5173 expansion unit to expand from 2 to 7 drives, allowing you to create RAID 5 volumes and find the ideal balance for your storage strategy. Once connected via eSATA with a specially designed locking cable, NVR1218’s raw capacity can reach 70TB.

Intuitive Surveillance Station to streamline deployment

Supporting powerful features from Surveillance Station and its mobile app, everything can be done without a PC.

Full support for Surveillance Station features

Surveillance Station provides a centralized, user friendly interface, letting you manage and monitor IP cameras in your shop or office.

On-the-go surveillance with the DS cam mobile app

DS cam is the mobile extension of Surveillance Station, allowing you to access Live View, playback recordings, adjust PTZ, and receive push notifications on your mobile device.
