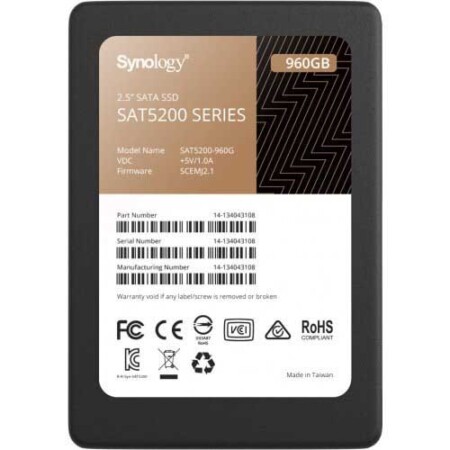

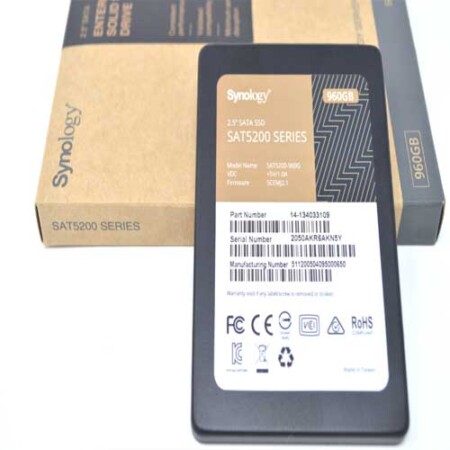

SYNOLOGY 960 GB SAT5200 SATA 2.5″SSD

• Capacity: 960 GB
• Form Factor: 2.5″ 7mm
• Interface: SATA 6 Gb/s
• Sequential Read (128KB, QD32): 530 MB/s
• Sequential Write (128KB, QD32): 500 MB/s
• Random Read (4KB, QD32): 98,000 IOPS
• Random Write (4KB, QD32): 67,000 IOPS
• Terabytes Written (TBW)*: 2290 TB
• Drive Writes Per Day (DWPD): 1.3
• Mean Time Between Failures (MTBF): 1.5 million hours
• Uncorrectable Bit Error Rate (UBER): < 1 sector per 1017 bits read
• Supply Voltage: 5V (± 10%)
• Active Read (Typ.):2.9 W
• Active Write (Typ.): 4.6 W
• Idle: 1.5 W
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)

Description:

Enterprise-grade SSD built for Synology systems

Synology SAT5200 SATA SSD offers stable I/O performance while reducing the latency of critical services and applications. It is built to handle mixed and intensive 24/7 workloads without compromising on endurance, providing a streamlined storage experience on Synology systems with minimal service disruptions.

Performance

Up to 67,000 4K random write IOPS1

Endurance

1.3 DWPD for 24/7 enterprise workloads2

Reliability

End-to-end data protection and power loss protection

Lifetime Analytics

Actionable insight for optimal performance and longevity

Stable high performance for demanding environments

Engineered for demanding environments such as online transaction processing (OLTP) databases and virtualization deployments, Synology SAT5200 delivers stable high performance at up to 67,000 4K random write IOPS, allowing firms to modernize existing storage infrastructure effortlessly.1

End-to-end data protection

Safeguards data integrity and consistency over the entire data transfer path.

Power loss protection circuit design

Dedicated capacitors provide sufficient power to flush data-in-flight into NAND flash during a power loss event, further preventing data corruption.

Purpose-built for Synology systems

Synology SAT5200 is thoroughly tested for compatibility with our systems following each engineering change, while firmware and component changes are strictly managed. Intensive I/O stress, power cycling, and temperature trials ensure that all products meet our strictest standards for quality and reliability.
