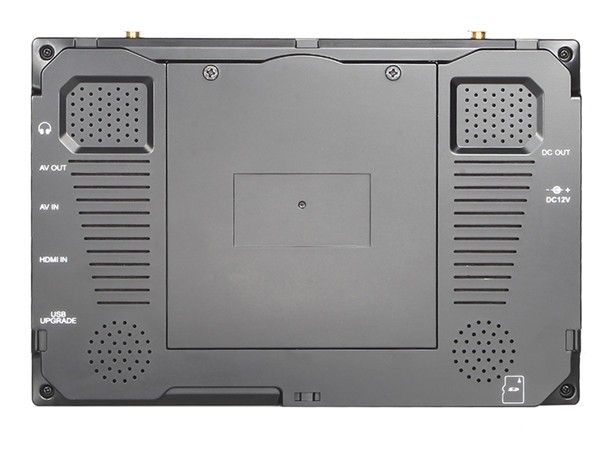

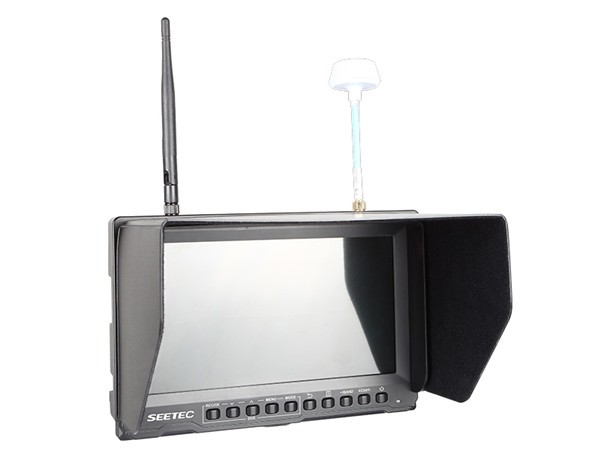

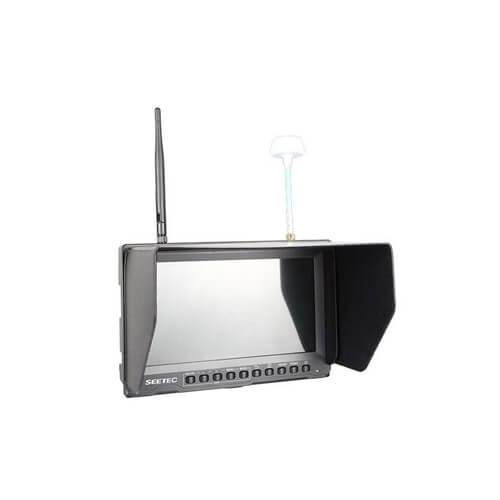

SEETEC 8″ HD FPV MONITOR W/ 32CH WIRELESS 5.8GHZ AV RECEIVER MODEL: PVR-821

ITEM CODE ;106500-AS
LAST UPDATED ;05-09-2020
Be the first to review this product
Built-in integrated lipo battery
DC output
Best Channel Receiption via Antenna Auto-switching
No Blue Screen
32 Channels Receiver
Portable DVR,TF Card max up to 32G
Motion Detection
Cycle Recording
High Sensitivity:-90dBM,Frequency Control
- Ask a Question
SEETEC 8" HD FPV MONITOR W/ 32CH WIRELESS 5.8GHZ AV RECEIVER MODEL: PVR-821
AED 1,300Ask a Question
SPECIFICATIONS:
Description: “8” ” HD FPV Monitor with 32CH wireless 5.8GHZ AV receiver”
Model: PVR821
Dot Resolution: 800X480 pixels (max to1920×1440)
Dot pitch: 0.0736(W) X 0.2070(H) mm
Aspect Ratio: 16:9
Brightness: 450cd/m²
Contrast Ratio: 500:1
Backlight: LED
Response Time: 10ms
Viewing Angle: 70°/70°(L/R) 50°/70°(U/D)
Support video format: PAL-4.43,;NTSC-3.58
Input Signals: Mini HDMI、AV、RF
Output Signals: AV ,3.5mm Earphone Jack
HDMI Mode: “480i /480p /576i /576p
720p /1080i /1080p (50/60Hz)”
Built-in battery: 7.4v/2200mA(2 hours)
Input Voltage: 9-18V
Power Consumption: ≤13W(with battery)
WorkingTemperature: -20℃~50℃
Storage Temperature: -30℃~65℃
Install Way: “1/4”-20 Thread mounting socket
Unit Size: 212L × 144W × 22H(mm)
Unit Weight: 542g/626g(with battery)
APPLICATIONS:
Wireless Baby monitor
Wireless video leisure goods
DVD/DVB AV wireless transfer
Engineering construction monitor
Wireless camera security system
Wireless video medical apparatus
Wireless visual reversing camera transmission
