Ruijie RG RAP1200(P) Dual Band Gigabit Wall Plate Access Point
Last Updated: 16-11-2023
Item Code: G1235GA
- Protocol Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n
- Operating Bands 802.11b/g/n: 2.4G ~ 2.4835GHz

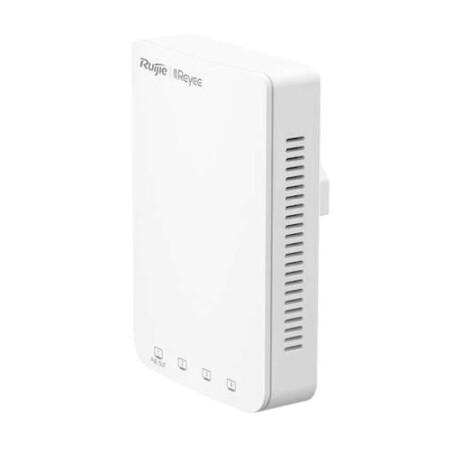

Dual-Band Gigabit Wall Plate Access Point RUIJIE RG-RAP1200(P)
– Ruijie Reyee Series RG-RAP1200(P) dual-band gigabit wall plate AP is a high-performance wall plate AP for small and medium-sized indoor Wi-Fi scenarios, such as offices, commercial industry, hotels, service scenarios, etc .

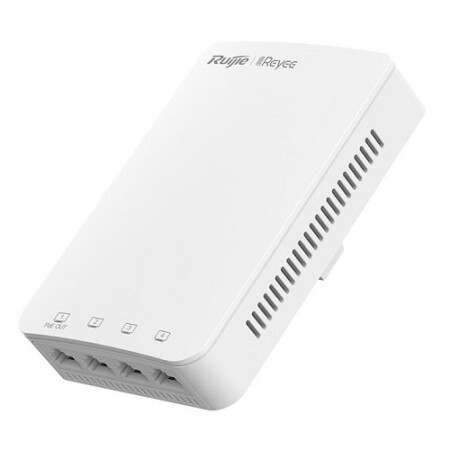

– With 802.3af/at PoE support, the AP provides 4 LAN ports at the front, including 1 PoE out port, to facilitate the connection of IPTV, IP phone, etc.
– The AP also provides 1 Gigabit uplink port on the rear panel.
– Compliant with 802.11a/b/g/n/ac Wave1/Wave2 Wi-Fi protocol, the AP supports MU-MIMO dual-stream technology and offers built-in omnidirectional antennas.
– It can operate concurrently at 2.4GHz and 5GHz, providing high-speed wireless access of 400Mbps at 2.4GHz, 867Mbps at 5GHz and up to 1267Mbps per AP.
|Protocol||Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n|
|Operating Bands||802.11b/g/n: 2.4G ~ 2.4835GHz 802.11a/n/ac: 5G: 5.150~5.350GHz, 5.725~5.850GHz|
|Spatial Streams||2.4G 2x2MIMO 5G 2x2MIMO|
|Max Throughput||2.4G: up to 400Mbps 5G: up to 867Mbps Access rate per AP: 1.267Gbps|
|Modulation||OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS : DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps MIMO-OFDM: BPSK, QPSK , 16QAM, 64QAM and 256QAM|
|Maximum Transmit Power||20 dBm (adjustable)|
|Dimensions||126×86×46.3 mm (excluding bars)|
|Weight||≤0.24kg (excluding barckets)|

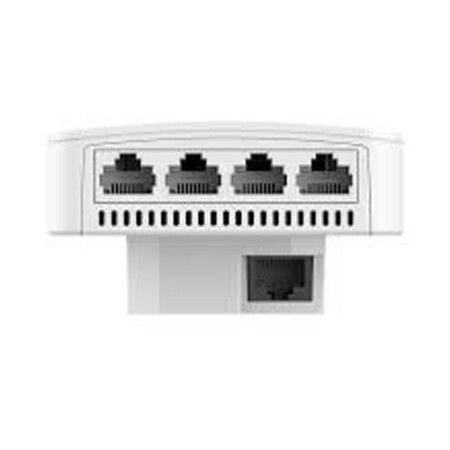

|Service Ports||Front: 4 10/100/1000Base-T Ethernet ports LAN1 port supports IEEE.802.3af PoE OUT Rear: 1 10/100/1000Base-T Ethernet port|
|LED Indicator||1 LED indicator|
|Power Supply||Support PoE (802.3af/at)|
|Power Consumption||≤8W (max power consumption is 23.4W PoE output included )|
|Environment||Operating temperature: 0°C~40°C (32℉ to 104℉) Storage temperature: -40°C~70°C (-40℉ to 158℉) Operating humidity: 5%~95% (non-condensing) Storage humidity: 5%~95% (non-condensing)|
|Installation. Installation||Wall plate installation|
|Safety Standard||GB4943, IEC 62368-1|
|EMC Standard||GB9254, EN301 489, EN50155, EN50121, EN55032, EN61000, EN55035|
|Radio Standard||EN300 328, EN301 893|
|Operating Mode||AP mode and routing mode|
|WLAN||Maximum number of clients: 110 Recommended number of clients: 80 (16 at 2.4GHz, 64 at 5GHz) Up to 8 SSIDs Support SSID hiding Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID SSID-based and radio-based STA limit Support Layer 2 user isolation|
|Roaming||Supports Layer 2 and Layer 3 roaming|
|Security||Support PSK authentication Support static blacklist and whitelist Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption|
|Routing||Support static IP address, DHCP, PPPoE Dial Up|
|Management and maintenance||Support unified networking of all network equipment Support local or remote management with Ruijie Cloud app Support local management with web Support remote management with Ruijie Cloud platform|
