Ruijie RG ES108D Unmanaged Access Switch
3 sold in last 17 hoursLast Updated: 17-11-2023
Item Code: G1235GA
- Plug and Play
- Metal Casing
- Easy to Install
Description:
Model: RG-ES108D

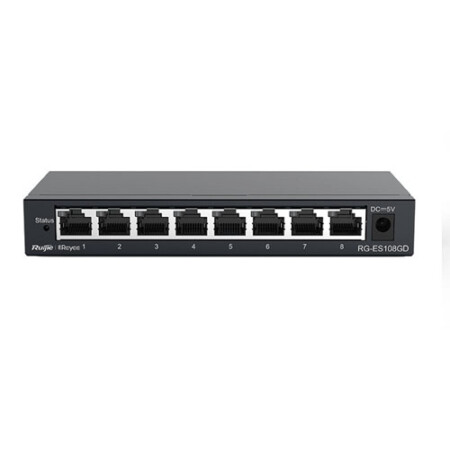

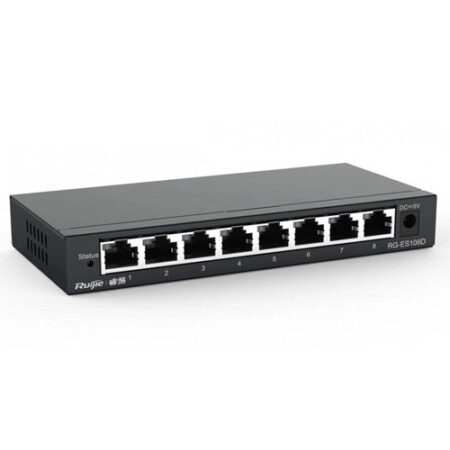

RUIJIE | REYEE 8 PORT 10/100 Mbps METAL CASE UNMANAGED SWITCHES
Ruijie Reyee Series RG-ES10SD/ RG-ES108D/ RG-ES105GD/ RG-ES108GD are cost-effective unmanaged access switches with metal casing designed for SMEs. The RG-ES100 Series supports plug and-play without requiring any configuration, which can meet the requirements of various scenarios such as wired, wireless and surveillance networks.
Key Features
- Plug and Play
- RG-ES100 Series supports self-adaptive ports and plug-and-play feature with zero configuration.
- Metal Casing
- The entire casing is made of metal which provides better heat dissipation.
- Easy to Install
- The compact size allows easy installation in the ELV box at home or the waterproof surveillance junction box, as it only takes up little space.
- Enterprise-grade Quality
- The high-quality 8-core network cable and enterprise-grade components ensure no packet loss or lagging for data transmission.
Technical Specifications:
| Model | ES105D | ES108D | ES105GD | ES108GD |
| Ports | 5 10/100Mbps RJ45 ports | 8 10/100Mbps RJ45 ports | 5 10/100/1000Mbps RJ45 ports | 8 10/100/1000Mbps RJ45 ports |
|
Maximum port forwarding rate |
100Mbps | 100Mbps | 1000Mbps | 1000Mbps |
| Auto-MDI/MDIX | Support | Support | Support | Support |
| MAC address | 1K | 2K | 2K | 8K |
| Backplane bandwidth | 1Gbps | 1.6Gbps | 10Gbps | 16Gbps |
| Maximum packet forwarding rate | 744Kpps | 1.19Mpps | 7.44Mpps | 11.9Mpps |
| LED indicator | Link/Act status LED indicator for each port, Power indicator | Link/Act status LED indicator for each port, Power indicator | Link/Act status LED indicator for each port, Power indicator | Link/Act status LED indicator for each port, Power indicator |
| Dimensions | 119mm*62mm*24mm | 160mm*75mm*24mm | 119mm*62mm*24mm | 160mm*75mm*24mm |
| Power input / output | External 5VDC 1.0A | External 5VDC 1.0A | External 5VDC 1.0A | External 5VDC 1.0A |
| Maximum power consumption | ≤5W | ≤5W | ≤5W | ≤5W |
| Temperature | Operating temperature: 0 ℃ ~ 40 ℃ Storage temperature: -40 ℃ ~ 70 ℃ | Operating temperature: 0 ℃ ~ 40 ℃ Storage temperature: -40 ℃ ~ 70 ℃ | Operating temperature: 0 ℃ ~ 40 ℃ Storage temperature: -40 ℃ ~ 70 ℃ | Operating temperature: 0 ℃ ~ 40 ℃ Storage temperature: -40 ℃ ~ 70 ℃ |
| Humidity |
Operating humidity: 10% ~ 90% non-condensing Storage humidity: 5% ~ 90% non-condensing |
Operating humidity: 10% ~ 90% non-condensing Storage humidity: 5% ~ 90% non-condensing |
Operating humidity: 10% ~ 90% non-condensing Storage humidity: 5% ~ 90% non-condensing |
Operating humidity: 10% ~ 90% non-condensing Storage humidity: 5% ~ 90% non-condensing |
Brand
RUIJIE
