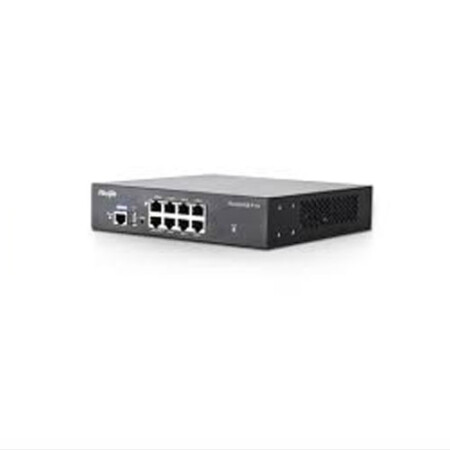

Ruijie RG EG2100 P V2 Switch
2 sold in last 5 hoursLast Updated: 17-11-2023
Item Code: G1235GA
- CPU Multi-core MIPS
- Memory: 512M
- Fixed Ports: 8 1000BASE-T ports (7x POE/POE+)
Ruijie EasyGate (EG) Next-generation Unified Security Gateway is a multi-functional Cloud Managed Security Gateway product for various industries.
Equipped with high-performance multi-core MIPS hardware architecture, the EG Gateway supports a wide range of features such as high-performance NAT, WAN load balancing, smart flow control, online behavior management, visualized IPsec VPN , web authentication, etc.
Taking advantage of integrated Hard Disk Drive (HDD), the EG Security Gateway can provide local storage for Internet activities logging, which is essential for National Internet Security Compliance in many countries.
Ruijie EG Next-generation Unified Security Gateway is also supported by Ruijie Cloud, altogether with switches and wireless access points, Ruijie Cloud can provide a comprehensive secure networking platform for centralized management allowing for device monitoring, configuration as well as firmware management.
For ease of provisioning, Ruijie provide an innovative Mobile App Dummy Provisioning for SME customers. In less than 3-min, user can complete the Gateway initial setup with Internet connectivity, without any PC setup or cable installation.
There are two models available for Security Gateway, RG-EG3250, RG-EG3230 & RG-EG2100-P v2.
Feature highlights of Ruijie EG Next-generation Security Gateway Series:
Smart Flow Control & AAA Integration
User Online Behavior Management
VPN & Traffic Visualization
FREE Cloud Management
App Caching for Download Acceleration
Built-in Internet Audit Log Storage (EG3250)
Built-in Power-Over-Ethernet Integration (EG-2100-P v2)
Mobile App Dummy Provisioning (EG-2100-P v2)
Specifications:
| Model | RG-EG2100-P v2 |
|
Hardware Specification |
|
|
CPU |
Multi-core MIPS |
|
Fixed Ports |
8 1000BASE-T ports (7x POE/POE+) |
|
WAN Ports |
Upto 2 |
|
Flash |
4GB EMMC |
|
Hard Disk |
N/A |
|
Memory |
512M |
|
Performance & Feature |
|
|
Performance |
1000Mbps (1518 bytes) |
|
450Mbps (512bytes) |
|
|
70Mbps (64 bytes) |
|
|
Concurrent Session |
100,000 |
|
Recommended Concurrent User |
300 |
|
Portal Authentication Capacity |
100 (Max Concurrent Users) |
|
Portal Authentication Type |
Username/Password Auth (Local, Windows-based AD/LDAP Integration)
One-click Authentication;
Guest Voucher (Ruijie Cloud required); |
|
Seamless Authentication (Portal) |
Support |
|
App Caching |
Support |
|
Cache Capacity |
750MB |
|
Cache Resources |
Android APK files (non-https server required) |
|
Network Protocol |
Support TCP/IP protocols, including IP, ICMP, TCP, UDP, etc. Support multiple routing protocols, including static routing, RIP (V1 / V2) and OSPF Support DHCP Relay and DHCP Server Support PPPoE Client Support NAT and multiple NAT ALG including FTP, H.323, DNS, etc. Support ARP, trusted ARP, proxy ARP, etc. Support Ping and Traceroute fault detection |
|
Application Visibility |
Support self-developed 43 types of applications / more than 120 application features, customizable protocol identification: P2P: BitTorrent, eMule, Thunder, EDONKEY, FlashGet & etc. Multimedia: YouTube, Facebook Video, WebEx Conference & etc. Social Media: Facebook, Twitter, LinkedIn, Pinterest & etc. VOIP/Chat: Skype, Viber, Google Hangout, Jabber, Facebook Messenger & etc. Instant Messaging/Email: Gmail, MSN, QQ, YAHOO & etc. Software Update: Window, McAfee, Kaspersky, ESET & etc. Cloud-based File Collaboration: GoogleDrive, Dropbox, OneDrive, iCloud & etc. Enterprise Application：HTTP, FTP, SMTP, POP3, IMAP, Telnet, LOTUS-NOTES, SQL Server, Oracle, Mysql, HTTPS & etc. |
|
URL Filtering |
Support custom URLs Support remote HTTP automatic URL library upgrade Local log storage (NAT log, traffic log, URL log, etc.) Support storage on external log server |
|
WAN Load Balancing |
Support (upto 2 WAN Port) |
|
IPsec VPN Tunnel |
16 |
|
Network Security |
Anti-ARP Spoofing Defense against malicious attacks from internal and external networks Support secure address binding Block WAN Ping Prevent Port Scan Attack Prevent Fragmentation Attack Prevent ICMP Flood Attack Prevent Teardrop Attack Prevent Ping of Death Attack Prevent Land Attack Prevent Smurf / Fraggle attack Prevent SYN Flood Attack |
|
Ruijie Cloud Integration Feature |
Support device health monitoring status Support centralized configuration change management & backup Support Top 10 Application/User traffic visualization Support device firmware management Support event-based alarm notification |
|
Other Features |
Integrate with AAA software to support multiple authentication modes |
|
Other Features Service and Support |
Support push advertising page |
|
Support multi-link load balancing |
|
|
Support remote HTTP online upgrade for signature library, software version, etc. |
|
|
Lifetime Free signature library upgrade |
|
|
Rack Height |
1U |
|
Weight |
2KG |
|
Power Supply |
100-240V~,50-60Hz,3A |
|
PoE Budget |
135W |
|
Power Consumption |
<150W |
|
Dimensions (W x D x H) (mm) |
200×200x43.6 |
|
Operating Temperature |
0°C to 45°C |
|
Operating Humidity |
10% to 90%RH |
Brand
RUIJIE
