Raptor SR designed for Phantom 3 Adv & Pro

Item Code: G105600BK
Last updated: 27-10-2022
DJI Phantom 3 Advanced drone is a predecessor to its newer model DJI Phantom 4. The basic kit allows for 30 minutes of uninterrupted flight, maximum speed of 65km/h.
4Hawks antenna for DJI Phantom 3 Advanced & Pro models are operating in 2.4GHz with 9dBi gain and 5GHz also with 14dBi gain. Entire construction is 100% UV protected to assure longevity of the equipment. Additionally, part of the construction is made of aluminum to make the whole construction as light as possible. Mounting is made of stainless steel for rock solid stability.

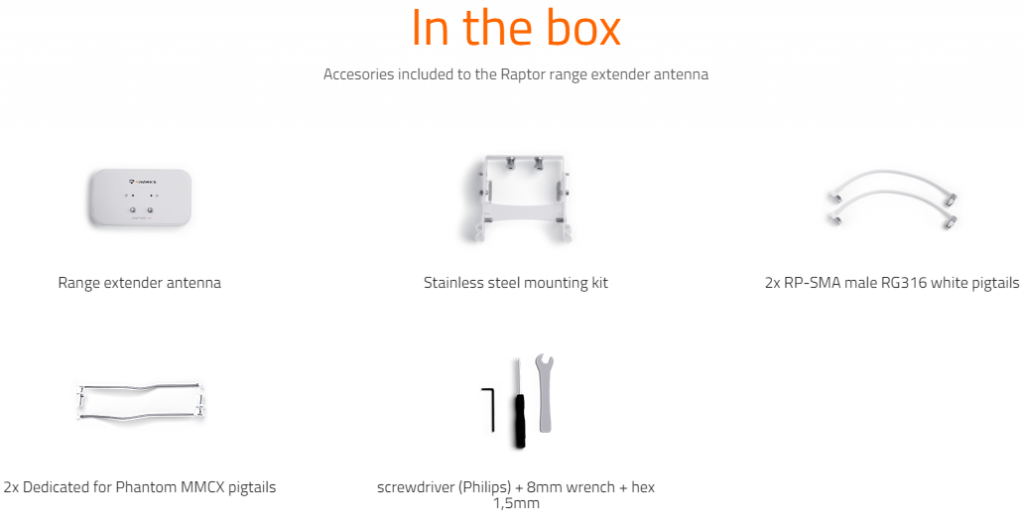

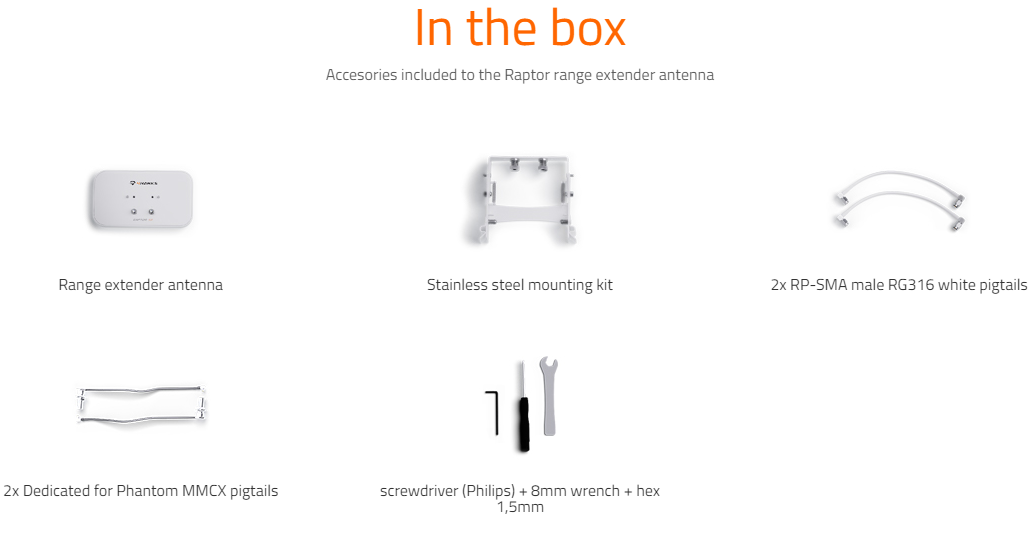

Mounting the range extender is easy and doesn’t require professional assistance. The entire set is lightweight and uniform (without any loose equipment pieces). Changing the direction of the antenna shouldn’t cause any difficulties, as the system was designed in a way that allows quick position change with just a single “click” to 5 different positions. This way you can be sure that you do not lose the connection with your drone.

Specification

electrical & mechanical parameters of Raptor renge extender.

Electrical parameters

Frequencies

Port 1:   2.40 – 2.50 GHz
Port 2:   2.40 – 2.50 GHz

Gain

Port 1:   9 dBi  (+/- 1 dBi)
Port 2:   9 dBi  (+/- 1 dBi)

VSWR

Port 1:   < 1.50  (max. < 2.30)
Port 2:   < 1.50  (max. < 2.30)

Beamwidth

Port 1:   70°/65°
Port 2:   70°/65°

Polarization

Port 1:   Vertical
Port 2:   Vertical

Impedance

Port 1:   50 Ω
Port 2:   50 Ω

Mechanical parameters

Material

Antenna:   Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, FR4 PCB
Mounting:   Stainless steel + paint

Weight

~ 200g (110g Antenna + 90g Mounting)

Dimensions

16.1 x 9.1 x 1.7 cm
6.34 x 3.60 x 0.67 inch

Connection

Port 1:   RP-SMA female
Port 2:   RP-SMA female

Tilt adjustment

5 tilt positions, OnClick system

Mounting type

QuickAttach
