Logitech Rally Speaker (Max two per Rally System)-960-001230

• Ultra-HD imaging system supports:
  • 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
  • 1080p, 720p at 30fps and 60 fps
• Smooth motorized pan, tilt and zoom
  • Pan: ±90°
  • Tilt: +50° / -90°
  • 15x HD zoom
• 90° field of view with Autofocus
• Lens parks at -90° in sleep mode for assured privacy

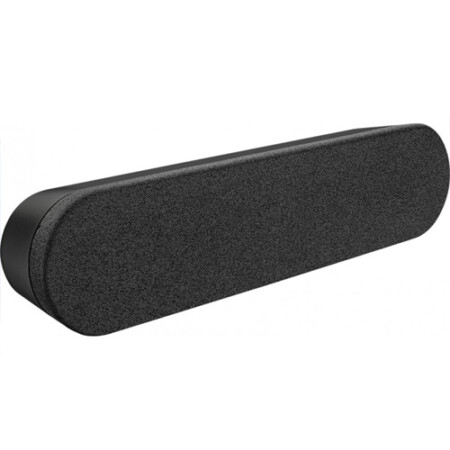

Rally Speaker and Microphone Pod

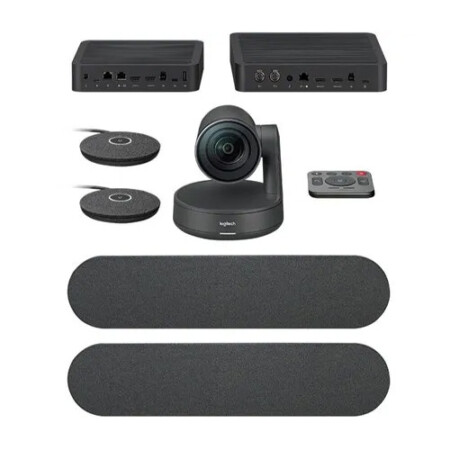

• Rally Plus includes two (2) speakers and two (2) microphone pods
• Recommended number of participants with Rally Plus is 16
• Speaker:
  • High-performance 3″ (76mm) driver with rare-earth magnet
  • Patent-pending suspension system eliminates vibration-induced camera shake and audio interference
  • Speaker volume 95dB SPL @1W, 100dB SPL @7.5W, both +/-2dB at ½ meter; Sensitivity: 95+/-2dB SPL at ½ meter; Distortion: 200Hz–300Hz les than 2.5%, 300Hz–10kHz less than 1%@7.5W; Speaker sampling rate: 48 kHz
• Microphone:
  • Pickup range: 15 ft / 4.5m diameter
  • Four omnidirectional microphones forming eight acoustic beams
  • Background noise suppression
  • Mute button with LED status indicator

Rally Table and Display Hub

• Display Hub:
  • HDMI Type A (x2) (connects to displays)
  • USB C (connects to Rally Camera)
  • USB Type B (connects to meeting room computer)
  • RJ45 (connects to Table Hub)
  • Mini XLR (x2)
  • Powers one or two Rally Speakers
• Table Hub:
  • Single CAT6A cable connection to Rally Display Hub (16.4 ft / 5m cable included, supports customer-supplied cables up to 164 ft (50 m)
  • Active speaker detection: analyzes audio from up to 7 Mic Pods and 56 beams every 8ms
  • 12 Pin connector for Rally Mic Pod; HDMI Type A passthrough to Display Hub (x2)
  • USB Type C; USB Type A (reserved for future capability); USB Type B (connects to meeting room computer)
