    Product Information:

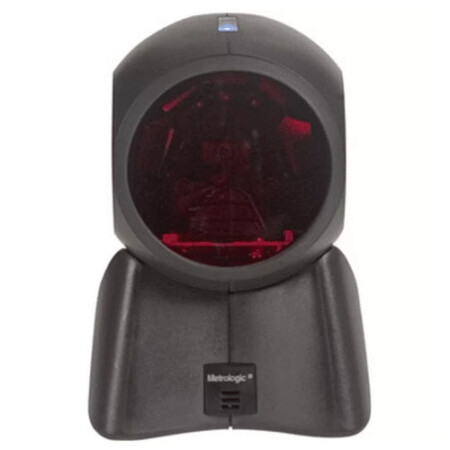

    Honeywell 7120 Omnidirectional Laser Scanner Features and Benefits

    20 scan line omnidirectional pattern: Provides aggressive scanning as an additional benefit to hand presentation applications

    Adjustable scan head: Ability to tilt scanner 30º for targeted scanning or larger products

    Metrologic’s MS7120 Orbit is an aggressive, omnidirectional presentation laser bar code scanner. Designed for applications where counter space is at a premium, Orbit is the ideal presentation scanner for retail, convenience, liquor and specialty stores.
    In addition, Orbit’s unique, contoured shape allows it to be picked up and used as a hand-held when scanning large or bulky items. Lightweight and rugged, Orbit is small in size but BIG in performance.

    Engineered with a large, easy-to-find sweet spot, Orbit increases first pass read rate for maximum productivity. The scanning head can be tilted vertically a full 30° for added flexibility when scanning various sized objects. Orbit has a patented 20-line omnidirectional scan pattern that produces 1,200 scan lines per second. These features increase the scanning throughput, without increasing Orbit’s size.
    Orbit is engineered for easy configuration and utilizes user-replaceable cables, in order to meet the multiple application needs across the many markets it serves . Data editing or “parsing” is also a standard feature. Parsing enables the encoded information to be manipulated to meet the host system’s requirements.


    Scanning Rate 1650 scan lines / sec, omnidirectional; 80 scan lines / sec, single line
    Depth of field 25 mm - 279 mm (1.0” - 11.0”) for 0.33 mm (13 mil) bar code at default setting
    Width of Field 30 mm (1.2”) @ 25 mm (1.0"); 150 mm (5.9”) @ 280 mm (11.0”)
    Minimum Bar Width 0.127 mm (5.0 mil)
    Readable Barcode Formats Decodes all standard 1D, RSS-14, RSS Limited, and RSS expanded bar codes
    Features 20 line omni-directional, Fully automatic scanning operation, Single-line mode for menu reading,
    Interface RS232, Light Pen Emulation, Keyboard Wedge, Stand Alone Keyboard, IBM 468x/469X, USB (low speed and full speed), Laser Emulation, OCIA
    A programmable, aggressive performer, the MS7120 Orbit omni-directional laser barcode scanner offers maximum productivity at retail checkout without sacrificing counter space. The lightweight design and contoured shape allows easy hand-held scanning for large or bulky items, while the aggressive laser scan engine and 30-degree tilting head deliver reliable hands-free presentation scanning on the first pass. Additional Features:
    1. Programmable Depth of Field & Data Editing
    2. Counter or Wall Mountable
    3. Interchangeable Interface Cabling
    4. 1200 Scan Lines Per Second
    5. Withstands 3 Ft. Drops
