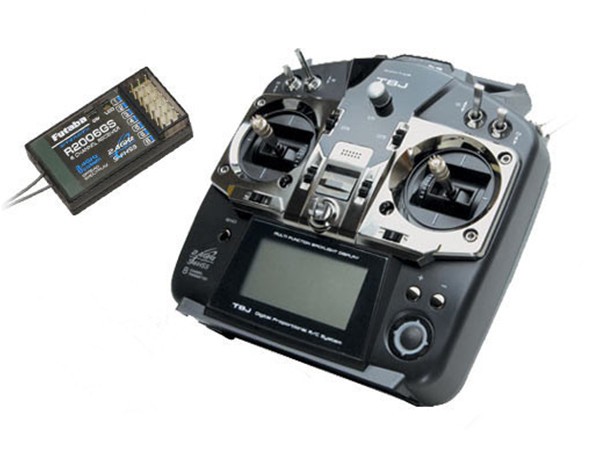

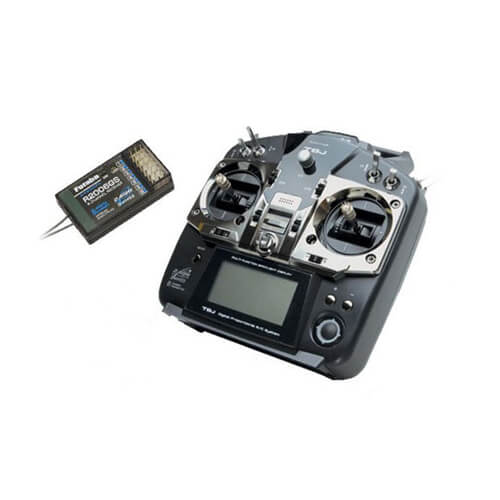

FUTABA 8J 2.4GHz 8CH REMOTE CONTROLLER W R2008SB RECEIVER

ITEM CODE ;106500AS
LAST UPDATED ;07-09-2020
Be the first to review this product
- Ask a Question
FUTABA 8J 2.4GHz 8CH REMOTE CONTROLLER W R2008SB RECEIVER
AED 1,200Ask a Question
System features
•Futaba S-FHSS 2.4GHz security (also compatible with FHSS)
•Airplane and Helicopter modes
•20 model memory
•S.Bus-compatible S-FHSS receiver
•Wireless transfer of model data to and from other 8J transmitters
•10-character model and user naming
•Large (128 x 64 dot) backlit LCD display
•8 channels (one variable knob, five 2-position switches, two 3-position switches, one momentary switch, two digital levers)
•Quick and easy programming using a jog dial and three buttons
•End point adjustment
•Dual Rate/Expo (any switch selectable)
•Servo reversing
•Sub Trim on all 8 channels
•Digital Trims
•Trim Step adjustability
•ATL (Adjustable Travel Limit)
•Failsafe on all 8 channels
•Trainer mode
•Throttle cut
•Two Count-up/Count-down timers plus integrated timer
•Model timer
•Range check mode
•Servo Monitor/Test
•Auxiliary Channel switch/level assignability
Airplane Features
•Six programmable mixes (two with curves)
•Flaperons with differential rate
•Flap Trim
•Differential Ailerons
•V-tail mixing
•Elevon
•Ailevator
•Snap Roll
•Elevator/Flap mixing
•Airbrake/Landing
•Aileron/Rudder mixing
•Flap/Elevator mixing
•Gyro sensitivity
•Throttle curve (5 points)
•Pitch curve (5 points)
•Throttle delay
•Throttle/Needle mixing (5 points)
•Idle down (any switch selectable) Helicopter Features
•Six programmable mixes (two with curves)
•8 Swash Plate types
•5 Flight Conditions (normal, idle up 1, idle up 2, idle up 3, hold)
•Throttle curve (five points/four curves)
•Pitch curve (five points/five curves)
•Throttle hold
•Hover pitch mixing
•Hover throttle mixing
•Gyro sensitivity/mixing
•Governor setting/mixing
•Hi/Lo Pitch mixing
•Offset mixing
•Condition delay
•Throttle mixing (swash>throttle)
•Throttle/Needle mixing (5 point curve)
•Swash AFR
•Swash mixing
•Electronic swash ring
•Throttle delay
•Revolution mixing
Transmitter Specifications:
Type: 2-stick, 8-channel S-FHSS/FHSS selectable
Current Drain: 140mA
Receiver Specifications:
R2008SB 2.4GHz S-FHSS 8-Channel Receiver
Type: Full-range flight receiver
Modes: S-FHSS or FHSS
Features: High-voltage operation, frequency-hopping Spread Spectrum design, Dual Antenna Diversity, S.Bus compatibility
Voltage Input: 4.8V-7.4V battery or regulated output from ESC
Compatible Batteries: NiCd, NiMH, LiPo, LiIon or LiFe Dimensions: 0.98 x 1.69 x 0.55 in (24.9 x 42.8 x 14.0 mm)
Weight: 0.34 oz (9.5 g)
