FLYSKY FS-i6S 2.4 GHz 10CH RC W/ FS-iA6B RECEIVER

Last Sold  2 sold in last 9 hours
ITEM CODE ;106500-AS
LAST UPDATED ;03-09-2020

Be the first to review this product

The FS-i6S transmitter and FS-iA6B receiver constitute a 10 channel 2.4GHz AFHDS 2A digital proportional computerized RC System. This system supports quadcopters.

The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and patented by Flysky is specially developed for all radio control models.Offering superior protection against interference while maintaining lower power consumption and high reliable receiver sensitivity,Flysky’s AFHDS technology is considered to be one of the leaders in the RC market today.

  •  Ask a Question

    FLYSKY FS-i6S 2.4 GHz 10CH RC W/ FS-iA6B RECEIVER

    AED 550

    Ask a Question

      Estimated Delivery: Sep 24 – Sep 26
      ... people are viewing this right now

    Guaranteed Safe Checkout

    AED 550

    +

    Flysky FS-i6S 2.4G 6CH AFHDS Transmitter With FS-iA6B Receiver

    The model memory function will be upgraded in the next firmware.

    Customer Review:

    How to do the Mode Change(Throttle Spring Removal):










    Overview:
    The FS-i6S transmitter and FS-iA6B receiver constitute a 10 channel 2.4GHz AFHDS 2A digital proportional computerized RC System. This system supports quadcopters.

    The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and patented by Flysky is specially developed for all radio control models.Offering superior protection against interference while maintaining lower power consumption and high reliable receiver sensitivity,Flysky’s AFHDS technology is considered to be one of the leaders in the RC market today.

    Description:
    Brand Name: Flysky
    Item Name: FS-i6S with FS-iA6B receiver
    Note: If this transmitter bind with the FS-iA10B receiver,it can extend to 10 channel.

    Specifications:

    FS-i6S Transmitter FS-iA6B Receiver
    Channel 6 6
    Frequency 2.4055 – 2.475GHz 2.4055 – 2.475GHz
    Band Width 500KHz —–
    Band Number 140 140
    Transmitting Power <20dbm —–
    Receiver Sensitivity —– -105dbm
    2.4G Mode AFHDS AFHDS
    Modulation System GFSK GFSK
    Joystick Resolution 4096 class —–
    Low-Voltage Alarm <4.2V —–
    Charging Port Yes (USB) —–
    Input Voltage 4.2V-6.0V 4.0V-6.5V DC
    Antenna Length 26mm (dual antenna) 26mm (dual antenna)
    Weight 410g 14.9g
    Dimension 179*81*161mm 47*26.2*15mm
    Color Black,white (optional) Black
    Mode Mode Switch

    (Self Centering Throttle)
    —–
    Certification CE0678,FCC CE0678,FCC

    Features:
    Full touchscreen interface,more convenient to control

    Bidirectional Communication
    Capable of sending and receiving data,each transmitter is capable of receiving data from temperature,altitude and many other types of sensors,servo calibration and i-BUS Support.

    Multi-channel Hopping Frequency
    This systems bandwidth ranges from 2.4055GHz to 2.475GHz. This band is divided in 140 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean versions) in order to reduce interference from other transmitters.

    Omni-directional Gain Antenna
    The high efficiency Omni-directional high gain antenna cuts down on interference,while using less power and maintaining a strong reliable connection.

    Unique ID Recognition System
    Each transmitter and receiver has its own unique ID. Once the transmitter and receiver have been paired,they will only communicate with each other,preventing other systems accidentally connecting to or interfering with the system’s operation.

    Low Power Consumption
    The system is built using highly sensitive low power consumption components,maintaining high receiver sensitivity,while consuming as little as one tenth the power of a standard FM system,dramatically extending battery life.

    English Manual,Click Here

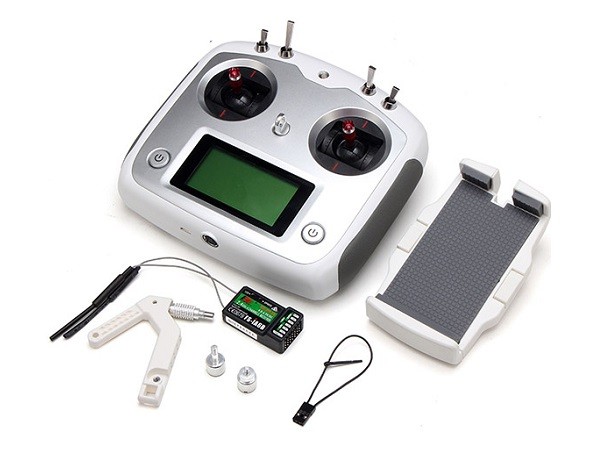

    Package Included:
    1x Flysky FS-i6S Transmitter
    1x Flysky FS-iA6B Receiver
    1x Holder
    1x User Manual
