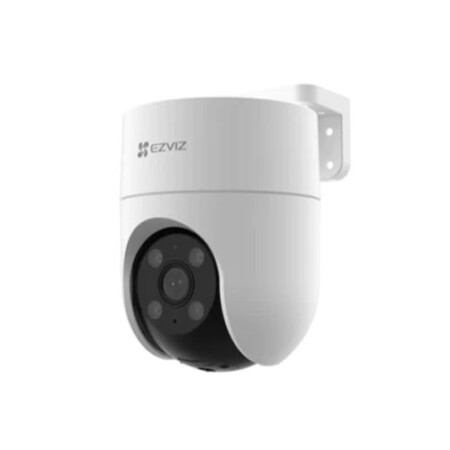

Ezviz H8c Pan & Tilt Wi Fi Camera

Last Updated: 02-11-2023
Item Code: G1235GA
- 1080p Resolution
- 360° Panoramic Coverage
- Color Night Vision
- AI-Powered Human Shape Detection
- Ask a Question
Ezviz H8c Pan & Tilt Wi Fi Camera
Ask a Question
Description:
360-degree protection that’s simply smart.
- 1080p Resolution
- 360° Panoramic Coverage
- Color Night Vision
- AI-Powered Human Shape Detection
- Auto-Tracking
- One-Click Return to Pre-Set Directions
- Two-Way Talk
- Active Defense with Siren and Strobe Light
- Weatherproof Design
- H.265 Video Technology
- Supports MicroSD Card (Up to 512 GB)

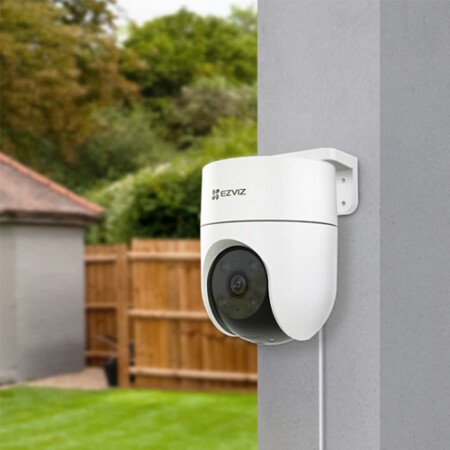

Inheriting the core technologies from EZVIZ’s award-winning outdoor pan & tilt camera series, the H8c puts loads of smart features into a compact unit for simply smart home protection. This trusted, accessible camera is reliable in any weather and operates steadily on residential internet platforms.
Specifications |
|
---|---|
Model | Model CS-H8c (1080P) |
Camera | |
Image Sensor | 1/2.7" Progressive Scan CMOS |
Shutter Speed | Self-adaptive shutter |
Lens | 4mm @ F2.0, viewing angle: 46° (Vertical), 89° (Horizontal), 104° (Diagonal) 6mm @ F2.0, viewing angle: 28° (Vertical), 52° (Horizontal), 60° (Diagonal) |
PT Angle | Pan: 350°, Tilt: 80° |
Minimum Illumination | 0.5 Lux @ (F1.6, AGC ON), 0 Lux with IR (Data is obtained from EZVIZ laboratories) |
Lens Mount | M12 |
Day & Night | IR-Cut filter with auto-switching |
DNR | 3D DNR |
WDR | Digital WDR |
Night Vision Distance | 30 m / 98 ft |
Video & Audio | |
Max. Resolution | 1920 × 1080 |
Frame Rate | Max: 30fps; Self-Adaptive during network transmission |
Video Compression | H.265 / H.264 |
H.265 Type | Main Profile |
Video Bit Rate | Full HD; Hi-Def; Standard. Adaptive bit rate. |
Audio Bit Rate | Self-Adaptive |
Max. Bitrate | 2 Mbps |
Network | |
Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
Frequency Range | 2.4 GHz ~ 2.4835 GHz |
Channel Bandwidth | Supports 20 MHz |
Transmission Rate | 11b: 11 Mbps,11g: 54 Mbps,11n: 72 Mbps |
Wi-Fi Pairing | AP pairing |
Protocol | EZVIZ Cloud Proprietary Protocol |
Interface Protocol | EZVIZ Cloud Proprietary Protocol |
Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
Storage | |
Local Storage | MicroSD card slot (Up to 512GB) |
Cloud Storage | EZVIZ Cloud Storage (Subscription Required) |
Function | |
Smart Alarm | AI-Powered Human Shape Detection |
Customized Alert Area | Supports |
Two-way Talk | Supports |
General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
General | |
Operating Conditions | -30 °C to 50°C ( -22 °F to 122 °F ), humidity 95% or less (non-condensing) |
IP Grade | Weatherproof Design |
Power Supply | DC 12V / 1A |
Power Consumption | MAX. 12W |
Dimensions | 100.05 × 129.19 × 149.75 mm (3.94 × 5.09 × 5.9 inch) |
Packaging Dimensions | 140 × 140 × 192 mm (5.51 × 5.51 × 7.56 inch) |
Weight (With package) | 730 g (25.75 oz) |
Net Weight | 420 g (14.8 oz) |
In the box | |
In the box | - H8c Camera |
- Drill Template | |
- Screw Kit | |
- Waterproof Kit | |
- Power Adapter | |
- Regulatory Information | |
- Quick Start Guide | |
Certifications | |
CE / FCC / UKCA / UL / WEEE / RoHS / REACH |
