Ezviz C3X Dual Lens Pro Wi Fi Outdoor Security Camera

Last Updated: 02-11-2023
Item Code: G1235GA
- Ask a Question
Ezviz C3X Dual Lens Pro Wi Fi Outdoor Security Camera
Ask a Question
Description:
Dual-lens Wi-Fi camera with built-in AI.
Meet the world‘s first commercial-grade security camera with a dual-lens setup. Night time color video has become a reality, even with the absence of supplemental lights. And built-in AI algorithms just made everything easier. Now you can get accurate alerts when people and vehicles appear in your specified zones. Get protection with the C3X, in high-tech and professional fashion.
The first dual-lens seen on a security camera.
In the dual-2 MP camera setup, vivid color imaging is accomplished using two lenses – one lens records the ambient brightness and the other captures color information. Then the two images are merged using EZVIZ’s own proprietary algorithm to create an image that is rich in details and realistic color.
Revolutionary color night vision without spotlights.
Leveraging supplemental lights to achieve color night vision was brilliant – until the introduction of the C3X. The C3X uses dual lenses and dual infrared lights to render better color images even in the lowest light conditions. There’s no need for spotlights. C3X’s colors are more natural, and the image is more evenly-illuminated.
Motion-triggered recording of people and vehicles.
With a built-in deep learning model, the C3X can detect the motion of person and vehicle shapes in real-time. Now you can receive the precise motion alerts you’ve always wanted. When no one is watching, the C3X takes the shift for you.
Actively protects places that matter.
The C3X lets you draw particular zones on the EZVIZ App to protect what matters to you the most. You can decide whether you want to keep people, cars, or both out of the zones. Upon detection of objects of interest, the camera will issue a loud siren and flash the strobe light to drive intruders away. You’ll receive a notification in a split second.
Customize your voice alerts.
The C3X lets you record your own voice for customized greeting or deterrence. For example, when visitors park cars in prohibited areas, the camera will play a pre-recorded message and instruct the drivers to park elsewhere.
Save money on storage and bandwidth.
Using the latest H.265 video compression technology, the C3X renders clearer and smoother video while reducing the need for data storage space and bandwidth.

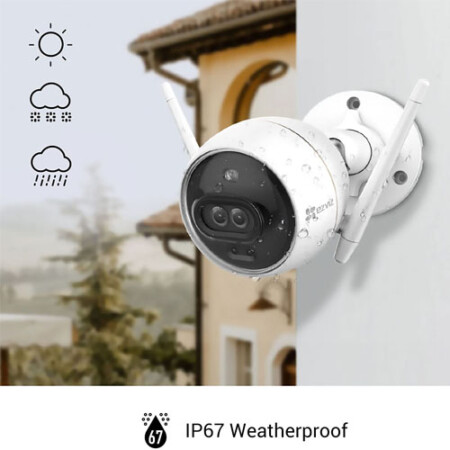

Designed to brave all types of weather.
With a whole metallic enclosure and an IP67 rating, the camera can withstand rainy, sunny, stormy, and even snowy days, giving you year-round peace of mind.
Multiple storage options.
With multiple storage options, you can choose where to save your recordings. The C3X camera can even save to all three locations at the same time for added backup in case the camera is damaged, or your network crashes.
Security at your fingertips.
With the EZVIZ App, you can capture, save, protect, and share what’s valuable to you.
Specifications:
Camera
Image Sensor
1/2.7" Progressive Scan CMOS
Shutter Speed
Self-adaptive shutter
Lens
4 mm @ F1.6, view angle: 89° (Horizontal), 106° (Diagonal)
Min. Illumination
color night vision, 0.005 lux
Lens Mount
M8
DNR
3D DNR
WDR
Digital WDR
Compression
Video Compression
H.264 / H.265
Video Bit Rate
Ultra-HD; HD; Standard. Adaptive bit rate.
Max. Resolution
1920 × 1080
Frame Rate
50Hz: 25fps; Self-Adaptive during network transmission
BLC
Supports
Interface
Storage
MicroSD card slot (Max. 256 GB)
Wired Network
RJ45 X 1 (10M/100M self-adaptive Ethernet port)
Network
Smart Alarm
Motion detection, human shape detection, vehicle shape detection
Setup Motion Detection Area
Supports
Wi-Fi Pairing
AP paring
Protocol
EZVIZ cloud proprietary protocol
Interface Protocol
EZVIZ cloud proprietary protocol
Wi-Fi
Standard
IEEE802.11b/g/n
Frequency Range
2.4 GHz ~ 2.4835 GHz
Channel Bandwidth
Supports 20 MHz
Security
64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate
11b: 11 Mbps, 11g: 54 Mbps, 11n: 144 Mbps
General
Power Supply
DC 12V±10%
Power Consumption
Max. 12W
IR Range
Max. 30 meters (98.43 feet)
IP Grade
IP67
Dimensions
72 x 72 x 150 mm (2.83 x 2.83 x 5.9 inch)
Packaging Dimensions
253.5 x 111.5 x 93.5 mm (9.98 x 4.39 x 3.68 inch)
Weight
425g (0.94 lb)
Package Contents
Package Contents
C3X Camera; Drill Template; Screw Kit; Waterproof Kit; Power Adapter 1.5 m (4.9 ft.); Quick Start Guide
Operating Environment
Temperature
-30°C to 60°C (-22°F to 140°F )
Humidity
95% or less (non-condensing)
