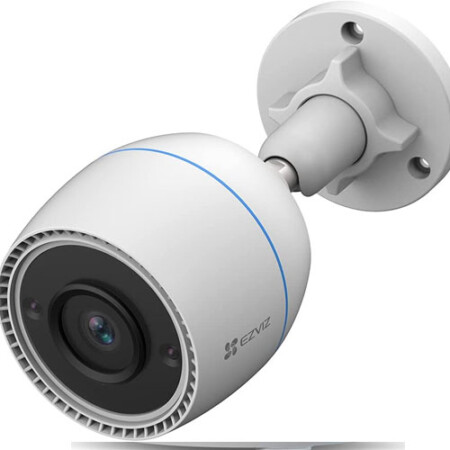

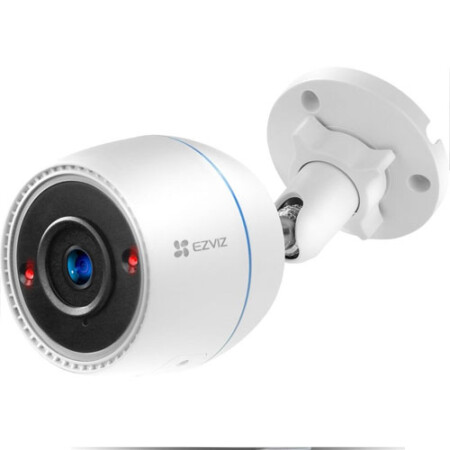

Ezviz C3TN Wi Fi Smart Home Camera
Last Updated: 02-11-2023
Item Code: G1235GA
- Image Sensor 1/2.7”Progressive Scan CMOS
- Minimum Illumination 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
- Shutter Speed Self-adaptive shutter
Wi-Fi Smart Home Camera
Home protection in the simplest way:
If you are seeking for a simple, durable camera to tackle multiple security needs at a super affordable price, the C3TN can’t be beat. The camera is well-engineered to focus on the most needed features to get the basics right, including great video quality, extended night vision, weatherproof housing, and more.
Crisp 1080p video with extended night vision:
Say goodbye to blurry or pixelated footage. With the EZVIZ C3TN, you can view and record everything in Full HD 1080p to capture sharper, more vivid details. The camera also features two IR lights to render clear night vision up to 30 meters.
Stands up to even extreme weather:
With an IP67-rated camera body, the C3TN is both dust- and water-resistant. It can stand steady even against the toughest weather conditions – whether it’s rainy, stormy or snowy.
Keeps you in the know:
Want to know what’s happening when you’re not at home? Watch the livestream with a simple tap on your smartphone using the EZVIZ App. What’s better, you will receive a mobile alert as soon as the camera detects motion.
your eyes – and ears:
The C3TN comes with a built-in noise-canceling microphone, which can pick up clear audio in the surrounding area. You can see and hear what’s going on in your backyard or at your front door at any time.
Reduce storage space and relieve network loads:
With the advanced H.265 video compression technology, the camera achieves same or even better video quality with only half the bandwidth and half the storage space required by the previous H.264 video compression standard.
Flexible storage options:
You can secure your recorded videos on a local microSD card of up to 256 GB, or subscribe to EZVIZ CloudPlay for fully-encrypted, unlimited cloud storage.
We protect your data and privacy:
Protecting your data and privacy is our highest priority. Data transmission between the camera and the EZVIZ Cloud is encrypted from end to end. Only you have the keys to decrypt your data.
|Image Sensor||1/2.7”Progressive Scan CMOS|
|Minimum Illumination||0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR|
|Shutter Speed||Self-adaptive shutter|
|Lens||2.8 mm @ F2.0, view angle: 106° (Horizontal), 122°(Diagonal)|
|Video Compression||H.265 / H.264|
|Video Bit Rate||Ultra-HD; HD; Standard. Adaptive bit rate.|
|Max. Resolution||1920 × 1080|
|Frame Rate||Max: 30fps; Self-Adaptive during network transmission|
|Wi-Fi Pairing||AP Pairing|
|Protocol||EZVIZ Cloud Proprietary Protocol|
|Interface Protocol||EZVIZ Cloud Proprietary Protocol|
|General Function||Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark|
|Storage||Micro SD card slot (Max. 256 GB)|
|Wired network||RJ45 × 1(10M/100M Adaptive Ethernet Port)|
|Standard||IEEE802.11b, 802.11g, 802.11n|
|Frequency Range||2.4GHz ~ 2.4835 GHz|
|Channel Bandwidth||Supports 20MHz|
|Security||64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK|
|Transmission Rate||11b: 11Mbps,11g: 54Mbps,11n: 144Mbps|
|Operating Conditions||-4°F to 122 °F (-20ºC to 50ºC ); Humidity 95% or less ( non-condensing)|
|Power Supply||DC 12V/1A|
|Power Consumption||Max. 6W|
|IP Grade||IP 67|
|Night Vision Distance (Black/White Night Vision Mode)||Max. 30 m (98 ft)|
|Dimensions||72 × 72 × 152 mm (2.83 × 2.83 × 5.98 inch)|
|Packaging Dimensions||227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch)|
|Net Weight||253 g (8.9 oz)|
|In the box:|
|In the box||- C3TN Camera|
|- Drill Template|
|- Screw Kit|
|- Waterproof Kit|
|- Power Adapter|
|- Regulatory Information|
|- Quick Start Guide|
