Description:

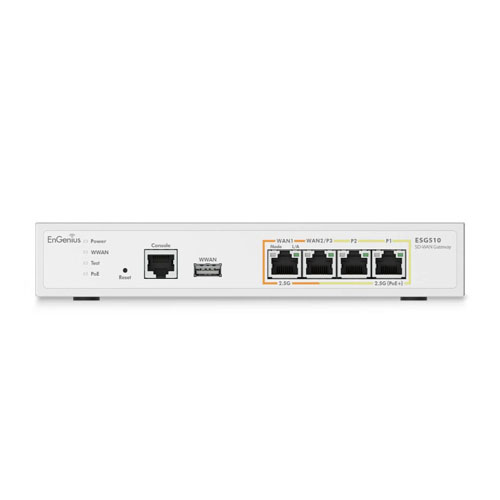

“4-Port Cloud Security Gateway with 2.5-Gigabit (1 PoE+) Ethernet ports Dual 2.5 GbE WAN and Dual 2.5 GbE LAN for maximum performance, load balancing,Stateful firewal, Site-to-site VPN,Multi-mode passthrough and routing options”
Hardware
CPU Processor
Quad Core
Operating Frequency
1.6 GHz
Memory
4GB
Storage
8GB
RJ-45 Interface
4 x 2.5G
SFP interface
–
PoE Ports
1
PoE Standard
802.3 af/at
Mounting Method
Wall mount
I/O Interfaces
1 x RJ-45 console/1 x USB 3.0
Security
TPM
Network & Security
Firewall (SPI throughput)
4G
VPN Throughput
970M
Max. TCP Concurrent Sessions
1,000,000
Max. Concurrent VPN Tunnels
200
Max. Concurrent VPN Users
250
Max VLAN
96
Firewall Features
Stateful Packet Inspection
Policy Rules
Port Forwarding
1:1 NAT
Allow Inbound Services
Site-to-Site VPN
Mesh VPN/Hub-and-Spoke
Encryption
3DES, AES (256/192/128-bit)
Authentication
MD5, SHA1, SHA2 (256-bit)
Key Management
IKEv1 (x-auth, mode-config)
IKEv2 (EAP, configuration payload)
VPN Features
Site-to-Site VPN
Client VPN(IPsec/SecuPoint SSL)
Policy-based VPN
IPSec NAT traversal (NAT-T)
Dead Peer Detection (DPD)
Auto-VPN Connection
Auto NAT traversal
Operation Mode
Routed/Passthrough
Multiple WANs
Dual
Bandwidth Limit
Per client/Per Interface
Traffic Load Balancing
WAN load balancing with WRR
Networking Features
Static Route
Multiple WANs
USB Cellular
User Authentication
PPPoE
VLAN Tagging
Captive Portal
Custom Splash Page
Bandwidth Limit
Traffic Load Balancing
DHCP client/server/relay
Dynamic DNS support
