Epson EB 685W WXGA Resolution Projector

3LCD Technology

0,59 inch with D9

3.500 Lumen- 2.900 Lumen (economy) In accordance with IDMS15.4

3.500 Lumen - 2.900 Lumen (economy) In accordance with ISO 21118:2020

WXGA 2

HD ready

16:10

14.000 : 1

Lamp

250 W, 5.000 h durability, 10.000 h durability (economy mode), 9.000 h durability (economy mode)

Manual vertical: ± 3 °, Manual horizontal ± 3 °

10 Bits

100 Hz - 120 Hz

Upto 1.07 billion colours

0,28 - 0,37:1

Digital, Factor: 1 - 1,35

Optical

60 inches - 100 inches

0,4 m ( 60 inch screen

0,6 m ( 100 inch screen

1,6

3,7 mm

Manual

6 : 1

3 in 1: Image / Mouse / Sound

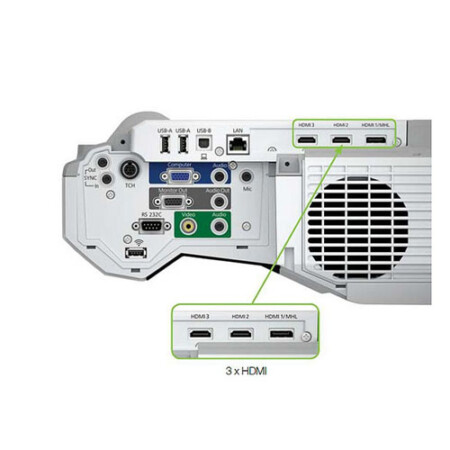

USB 2.0-A, USB 2.0, RS-232C, HDMI in (3x), Composite in, RGB in (2x), RGB out, Jack plug out, Jack plug in (3x), Microphone input, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11b/g/n (optional), VGA in (2x), VGA out, MHL

Ad-Hoc / Infrastructure

Kensington lock, Password lock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection

Dynamic, Cinema, Presentation, sRGB, Blackboard

Auto brightness adjustment, Automatic input selection, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Dynamic lamp control, Easy OSD pre-setting, Home Screen, Long lamp life, Split-Screen-Function, Wireless LAN capable

No

Blackboard, Dynamic, Presentation, Sports, sRGB, Theatre, Whiteboard

via: AMX, Crestron, Control4

301 Watt - On mode power consumption (Normal) 354 Watt (Peak), 309 Watt (Eco), 0,37 Watt (Energy saving standby)

AC 100 V - 240 V, 50 Hz - 60 Hz

367‎ x 400 x 149 mm (Width x Depth x Height)

5,7 kg

Normal: 35 dB (A) - Economy: 30 dB (A) - Eco2: 29 dB (A)

Operation 5° C - 40° C, Storage -10° C - 60° C

Operation 20% - 80%, Storage 10% - 90% If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling. If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.

EasyMP Multi PC Projection, Epson Projector Management

Air filter ELPAF38, Connection and control box, Document camera, External Speaker, USB extension cable, Wireless LAN unit

Linux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04 LTS, Windows 10, Windows 8, Windows 8.1

16 Watt

CD Manual, Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, Safety Cable, Wall hanging bracket, Warranty card

Meeting room / Classroom

Wall Mounted

White / Grey

For further information relating to TCO Certified please visit https://tcocertified.com/files/certification/Information-document-for-end-users.pdf
