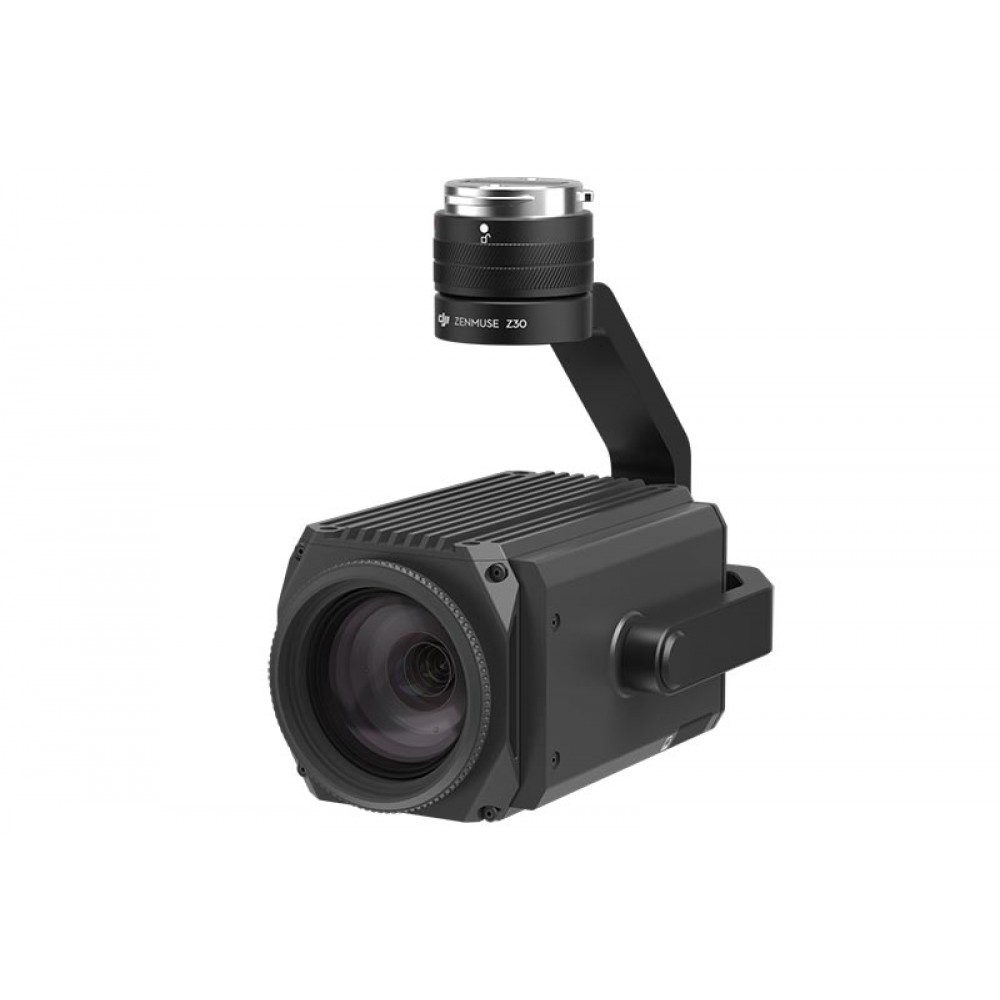

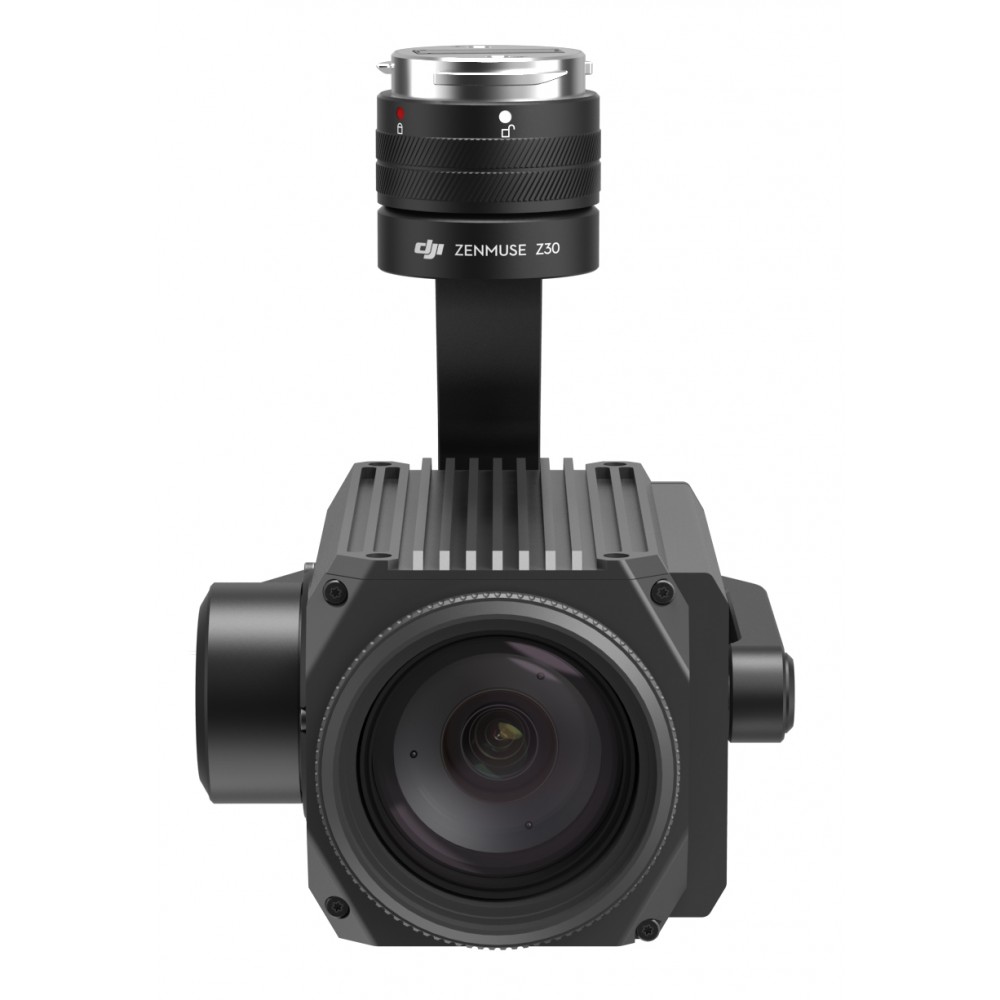

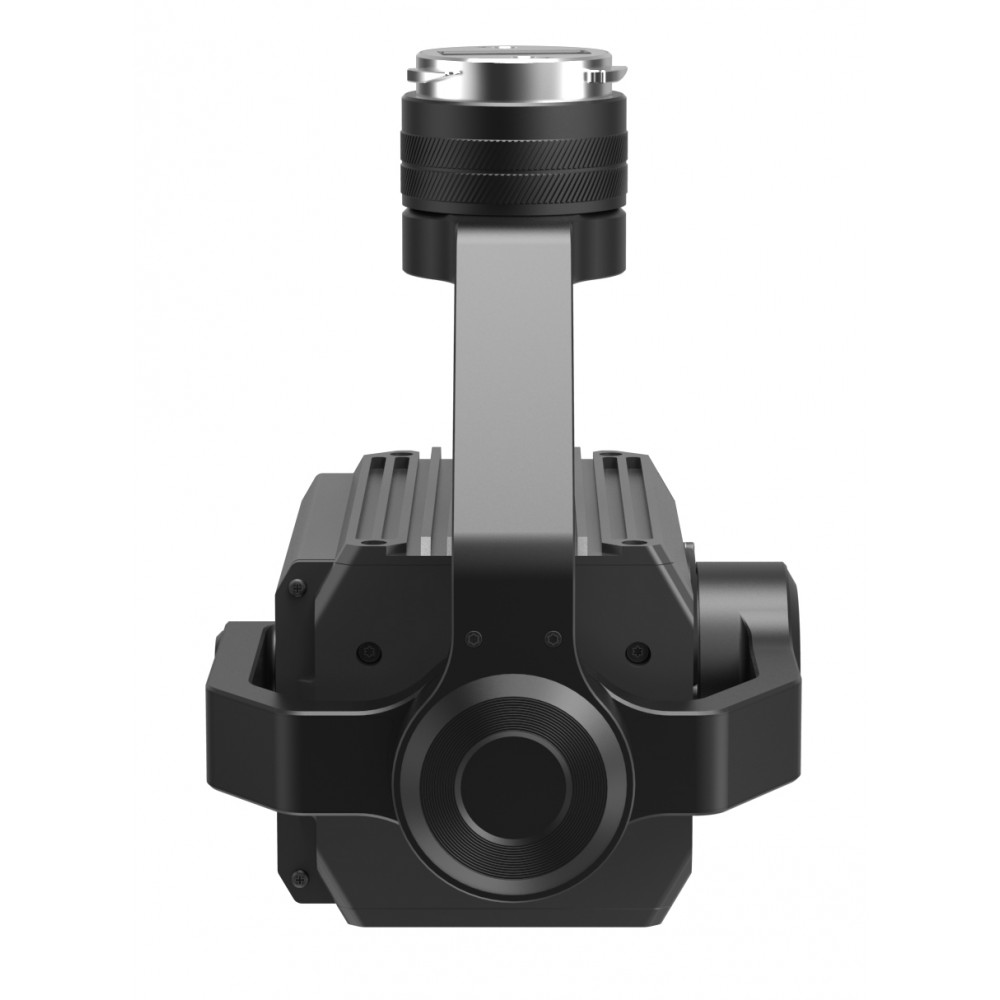

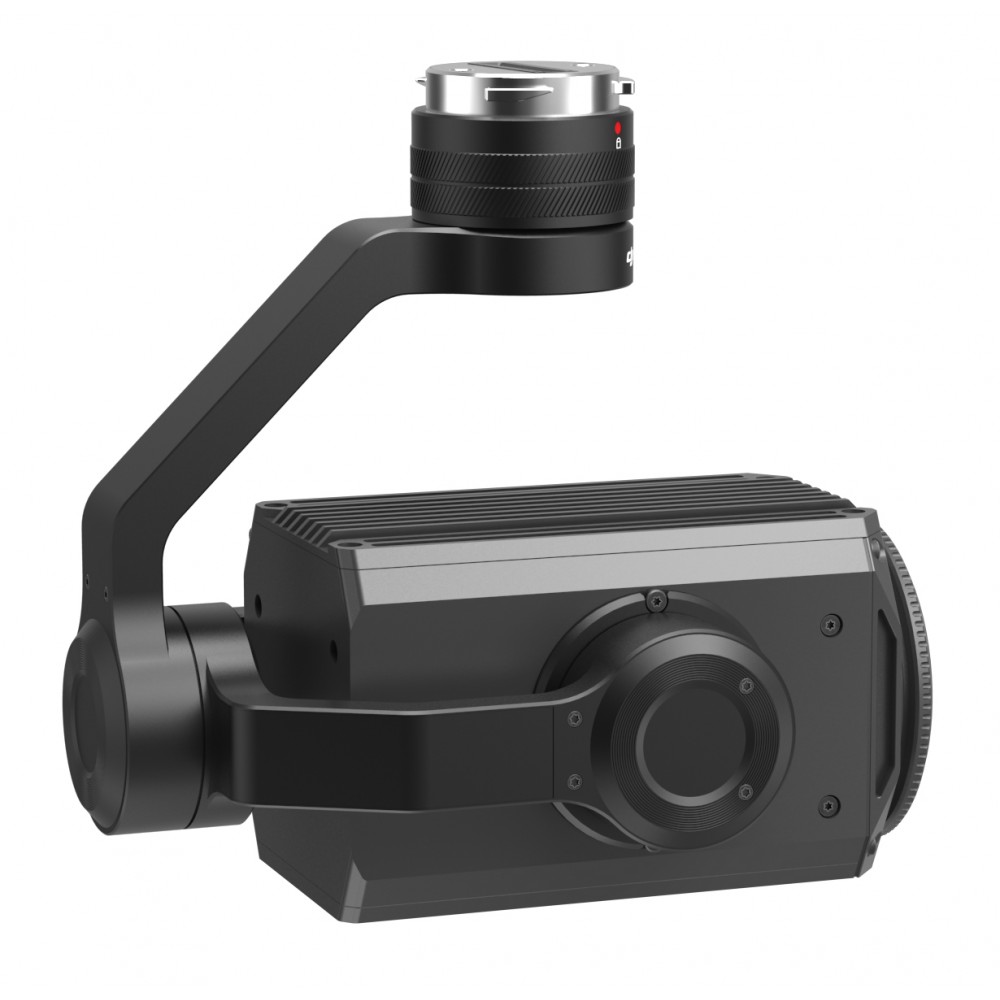

DJI Zenmuse Z30 – 30x Optical Zoom Camera/Gimbal

Last Sold  2 sold in last 7 hours

Last updated: 25-10-2022

Item Code: G105600BK

The Zenmuse Z30 is the most powerful integrated aerial zoom camera on the market with 30x optical and 6x digital zoom for a total magnification up to 180x. Whether you are inspecting power lines, cell towers or wind turbines, it enables you to get a detailed look at structures, wires, modules and components to detect damage. With the Z30’s incredible zoom capabilities you can avoid any potential electro-magnetic or RF intereference associated with utilities and communications infrastructure. This camera can only be used on the M100, M600 and M200 series airframes and is not compatible with the Inspire 1 or Inspire 2.

  •  Ask a Question

    DJI Zenmuse Z30 – 30x Optical Zoom Camera/Gimbal

    Ask a Question

      Estimated Delivery: May 24 – May 26
      ... people are viewing this right now
    Compare
    Guaranteed Safe Checkout



    Aerial platforms are rapidly becoming vital tools for businesses looking to more efficiently collect information crucial to their operations. The Zenmuse Z30 is the first integrated aerial camera with up to 30x optical zoom and digital zoom up to 6x. This camera and gimbal system offers unparalleled image data capture. Enterprise users of DJI products are now able to capture the information they require from a greater range making image data collection significantly faster. Also, the Zenmuse Z30 significantly reduces risk of harm to both personnel and equipment.

    Main Features

    ZOOM

    The Zenmuse Z30 is the most powerful integrated aerial zoom camera on the market with 30x optical and 6x digital zoom for a total magnification up to 180x. Whether you are inspecting cell towers or wind turbines, it enables you to get a detailed look at structures, wires, modules and components for the purpose of detecting defects and damage.
    As a result of allowing detailed inspections from a distance without the need to fly close to the subject, not only is speed and efficiency of your operations increased, but the risk of collision is all but eliminated.

    STABILIZATION

    A high-powered zoom means that any movement in the system is magnified, so stability is of utmost importance. The Zenmuse Z30 incorporates DJI’s leading gimbal technology for stabilization within 0.01°, and the same precision for controls. This enables long-range inspection with high reliability.

    TAPZOOM

    With TapZoom, precise collection of visual data is as easy as tapping your finger to point the camera at the subject of your inspection. The Zenmuse Z30 automatically adjusts its focal length to give you an enlarged view, making the most miniscule of details visible in just seconds.

    GENERAL

    Name Zenmuse Z30
    Dimensions 152×137×61 mm
    Weight 556 g

    CAMERA

    Sensor CMOS, 1/2.8″
    Effective Pixels: 2.13 M
    Lens 30x Optical Zoom
    F1.6 (Wide) – F4.7 (Tele)
    Zoom Movement Speed:
    – Optical Wide – Optical Tele: 4.6 sec
    – Optical Wide – Digital Tele: 6.4 sec
    – Digital Wide – Digital Tele : 1.8 sec
    Focus Movement Time:
    ∞ – near: 1.1 sec
    FOV 63.7°(Wide) – 2.3°(Tele)
    Digital Zoom 6x
    Min. Working Distance 10 mm – 1200 mm
    Photo Formats JPEG
    Video Formats MOV, MP4
    Working Modes Capture, Record, Playback
    Still Photography Modes Single shot, Burst shooting: 3/5 frames, Interval (2/3/4/7/10/15/20/30 sec)
    Exposure Mode Exposure Mode Auto, Manual, Shutter priority, Aperture priority
    Exposure Compensation ±2.3 (1/3 increments)
    Metering Mode Center-weighted metering, Spot metering (Area option 12×8)
    AE Lock Supported
    Electronic Shutter Speed 1/30 – 1/6000 s
    White Balance Auto, Sunny, Cloudy, Incandescent, Custom (2000K – 10000K)
    Video Captions Supported
    TapZoom Supported
    TapZoom Range 1-5
    Defog Supported
    One Key to 1x Image Supported
    Anti-flicker 50 Hz, 60 Hz
    PAL/NTSC Supported
    Supported SD Cards MicroSD (SD / SDHC / SDXC)
    Max. Capacity: 64 GB, Class 10 or UHS-1
    Supported File Systems FAT32 (≤ 32 GB)
    exFAT (> 32 GB)

    GIMBAL

    Angular Vibration Range ±0.01°
    Mount Detachable
    Controllable Range Pitch : +40° to -90°, Yaw: ±320°
    Mechanical Range Pitch ‘: +50° to -140°, Yaw: ±330°, Roll: +90° to -50°
    Max Controllable Speed Pitch ‘: 180°/s, Yaw: 180°/s

    ENVIRONMENTAL

    Operating Temperature 14° to 113° F (-10° to 45° C)
    Non-Operating Temperature -4° to 140° F (-20° to 60° C)

    Use Cases

    CELL TOWER INSPECTION

    cell tower

    Cell tower inspections are safer and quicker with the Zenmuse Z30. Inspecting from a distance eliminates the need for dangerous manual inspection. Because of this, you will no longer need to worry about crashing into assets. Stream your footage to a central hub to reduce boots on the ground and ensure that you don’t need any extra trips.

    Forget about hoisting up to inspect cell towers. Instead, allow an aerial platform equipped with the Zenmuse Z30. Now you will be able to conduct inspections from afar in a quick and efficient manner.

    The Zenmuse Z30 gives the ability to livestream findings to engineers anywhere. Live communication makes it possible for engineers and pilots to work together. Then they can identify concerns and conduct a quick inspection.

    The extended range of the Zenmuse Z30 adds many safety benefits. Since it is able to operate beyond the threat range of cell towers’ electromagnetic fields high flight safety is ensured.

    DJI Go’s Intelligent Flight Modes makes setting up your system easy. You can use Point of Interest to have your system circle a cell tower at a constant radius. You can do this while keeping it locked in the frame. With this set, you can focus on directing the camera and controlling zoom. This makes image data capture and performing inspections simple

    Brand

    DJI
