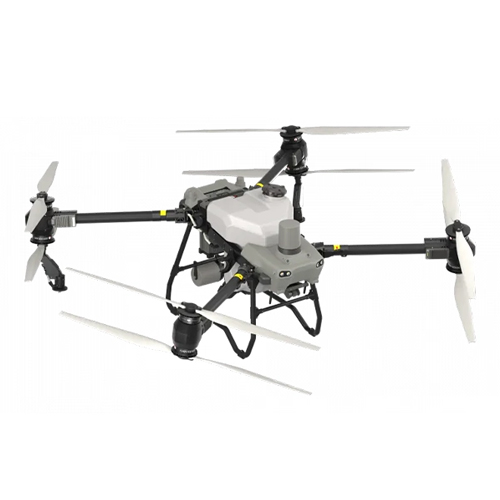

DJI Agras T50 DJI Advanced Agriculture Drone

Overview of DJI Agras T50

DJI AGRAS T50’s Dual Atomizing Spraying System provides an ultra-large flow rate of up to 16 L/min (2-sprinkler spraying). It produces uniform and fine spray droplets, and does not leak. DJI AGRAS T50 can be equipped with an additional pair of centrifugal sprinklers, increasing flow rate to 24 L/min (4-sprinkler spraying) for operations that require high application volume. When flying manually, use Reverse Directional Spray with four sprinklers to simplify operations without having to make turns.

• Weight

• 39.9 kg (excl. battery)
  52 kg (incl. battery)

• Max Takeoff Weight^[1]

• Max takeoff weight for spraying: 92 kg (at sea level)
  Max takeoff weight for spreading: 103 kg (at sea level)

• Max Diagonal Wheelbase

• 2200 mm

• Dimensions

• 2800×3085×820 mm (arms and propellers unfolded)
  1590×1900×820 mm (arms unfolded and propellers folded)
  1115×750×900 mm (arms and propellers folded)

• Hovering Accuracy Range (with strong GNSS signal)

• RTK enabled:
  Horizontal: ±10 cm, Vertical: ±10 cm
  RTK disabled:
  Horizontal: ±60 cm, Vertical: ±30 cm (radar module enabled: ±10 cm)

• RTK/GNSSOperating Frequency

• RTK:
  GPS L1/L2, GLONASS F1/F2, BeiDou B1I/B2I/B3I, Galileo E1/E5b, QZSS L1/L2
  GNSS:
  GPS L1, GLONASS F1, BeiDou B1I, Galileo E1, QZSS L1

• Max Configurable Flight Radius

• 2000 m

• Max Wind Resistance

• 6 m/s

Propulsion System – Motors

• Stator Size

• 100×33 mm

• KV

• 48 rpm/V

• Power

• 4000 W/rotor

Propulsion System – Propellers

• Material

• Nylon carbon fiber filament

• Dimension

• 54 in (1371.6 mm)

• Propeller Rotation Diameter

• 1375 mm

• Quantity

• 8

Dual Atomizing Spraying System – Spray Tank

• Material

• Plastic (HDPE)

• Volume

• 40 L

• Operating Payload ^[1]

• 40 kg^[1]

• Quantity

• 1

Dual Atomizing Spraying System – Sprinklers

• Nozzle Distance

• 1570 mm（Rear Nozzles）

• Droplet Size

• 50-500 μm

• Effective Spray Width ^[2]

• 4-11 m (at a height of 3 m above the crops)

Dual Atomizing Spraying System – Delivery Pumps

• Type

• Impreller pump (magnetic drive)

• Quantity

• 2

• Single Pump Flow Rate

• 0-12 L/min

• Max Flow Rate

• 16 L/min (2 sprinklers); 24 L/min (4 sprinklers)

T50 Spreading System

• Compatible Material Diameter

• 0.5-5 mm dry granules

• Spread Tank Volume

• 75 L

• Spread Tank Internal Load ^[10]

• 50 kg

• Spread Width

• 8 m

Phased Array Radar System

• Model

• RD241608RF (forward phased array radar); RD241608RB (rear phased array radar)

• Terrain Follow

• Max slope in mapping-free operation: 50°
  Altitude detection range: 1-50 m
  Stabilization working range: 1.5-30 m

• Obstacle Avoidance ^[4]

• Obstacle sensing range (multidirectional): 1-50 m
  FOV:
  Forward phased array radar: horizontal 360°, vertical ±45°, upward ±45° (cone)
  Rear phased array radar: vertical 360°, horizontal ±45°
  Working conditions: flying higher than 1.5 m over the obstacle at a horizontal speed no more than 10 m/s and vertical speed no more than 3 m/s.
  Safety limit distance: 2.5 m (distance between the front of propellers and the obstacle after braking)
  Sensing direction: 360° multidirectional sensing

Binocular Vision System

• Measurement range

• 0.5-29 m

• Effective Sensing Speed

• ≤10 m/s

• FOV

• Horizontal: 90°, Vertical: 106°

• Operating Environment

• Adequate light and discernible surroundings

Remote Controller

• Model

• RM700B

• Operating Frequency ^[5]

• 2.4000-2.4835 GHz, 5.725-5.850 GHz

• Max Transmission Distance

• 7 km (FCC), 5 km (SRRC), 4 km (MIC/CE); (unobstructed, free of interference, and at an altitude of 2.5 m)

• Wi-Fi Protocol

• Wi-Fi 6

• Wi-Fi Operating Frequency ^[5]

• 2.4000-2.4835 GHz, 5.150-5.250 GHz, 5.725-5.850 GHz

• Bluetooth Protocol

• Bluetooth 5.1

• Bluetooth Operating Frequency

• 2.4000-2.4835 GHz

• GNSS

• GPS+Galileo+BeiDou

• Screen

• 7.02-in LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2

• Operating Temperature

• -20° to 50° C (-4° to 122° F)

• Storage Temperature Range

• Less than one month: -30° to 45° C (-22° to 113° F)
  One to three months: -30° to 35° C (-22° to 95° F)
  Six months to one year: -30° to 30° C (-22° to 86° F)

• Charging Temperature

• 5° to 40° C (41° to 104° F)

• Internal Battery Runtime

• 3 hours 18 minutes

• External Battery Runtime

• 2 hours 42 minutes

• Charging Type

• It is recommended to use a locally certified USB-C charger at a maximum rated power of 65 W and maximum voltage of 20 V such as the DJI 65W Portable Charger.

• Charging Time

• 2 hours for internal battery or internal and external battery (when remote controller is powered off and using a standard DJI charger)
