Description:
The DPR-1020 USB Multifunction Print Server is a compact and versatile print server ideal for home office, school and business use. Supporting scan, fax, and print functions, the DPR-1020 provides an easy and cost-effective way of sharing your USB printer over a network.
Product Highlights
- Compatible with a wide range of USB multifunction printers*
- Supports GDI printers
- Supports Internet Printing Protocol (IPP) for remote printing
- Access security
- Multiple OS support
- D-Link Clink’n Connect easy set-up wizard
*Please refer to Appendix A in the user manual.

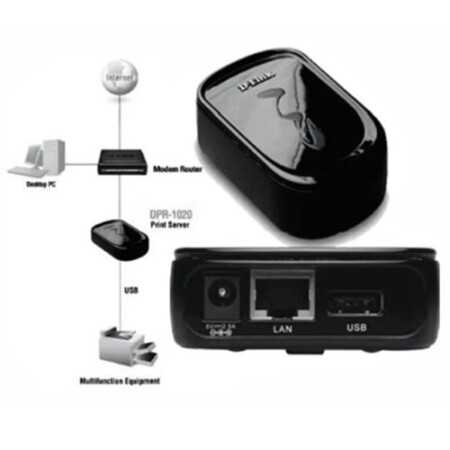

The DPR-1020 USB Multifunction Print Server is a compact print server ideal for home office, school or business use. Providing one USB port for a printer connection, this device gives users the option of adding a printer or multifunction printer to the network.
Simultaneous operation
Equipped with a powerful CPU, large memory, high speed USB 2.0 port and up to 100 Mbps network data transfer, this print server makes network operation fast. A multifunction printer attached to the DPR-1020 can print, scan, and fax at the same time, giving this device better performance than any software-based print server at a fraction of the cost.
Access security and multiple O/S support
The DPR-1020 provides security by allowing the administrator to configure user access rights to the printer. It supports a wide range of network Operating Systems including: Windows 95/98/ME/NT 4.0/2000/XP/Vista, Apple MacOS with AppleTalk, Linux, HP-UX, SunOS, Solaris, SCO Unix, IBM
AIX and NetWare 5.x native NDS.
Remote printing support
The DPR-1020 supports the Internet Printing Protocol (IPP), enabling remote users to output files to their office printer even when they are off site. HP PJL protocol is also supported for bi-directional network printer communication, providing network administrators with critical information about the network printer.
Easy to install
The DPR-1020 includes D-Link’s Click’n Connect software (DCC). This intuitive wizard is run directly from the product CD-ROM. In a few simple steps, it takes you through setting the Print Server up and configuring the attached printers (15 languages supported).

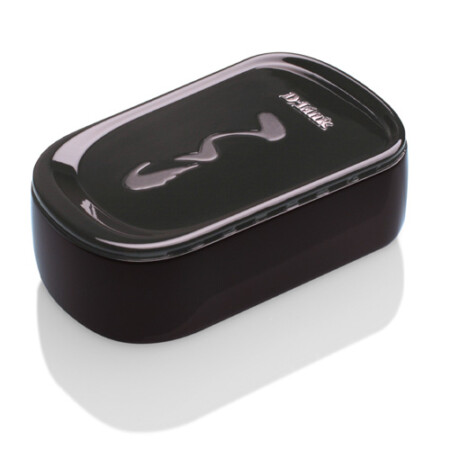

Actual product appearance may differ from the image displayed on this page
Specifications
Interface

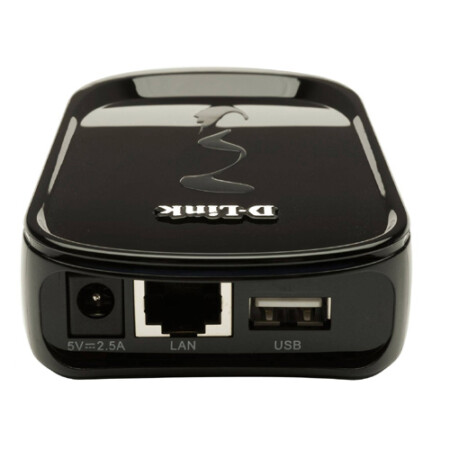

1x high speed USB 2.0 port (backward compatible with USB 1.1/1.0)
1x 10/100 Mbps Fast Ethernet port
Features
Supports Internet Printing Protocol (IPP) for remote printing
Supports a wide range of printers including GDI
Supports scan and fax functions from multifunction equipment
Operating System support
Windows Vista/XP/2000/NT4/ME/98SE/95
Apple Mac OS 9.x to MAC OS X 10.4.x
Linux
UNIX lpr/lpd (HP-UX, SunOS, Solaris, SCO, UnixWare, IBM AIX)
NetWare 5.x NDPS LPR Remote Printing
Management
Easy web-based configuration with Quick Installation Wizard
Other specifications
EU UPC code:
790069 320729
UK UPC code:
790069 320712
Dimensions (device):
67 (W) x 25 (H) x 106 (D)mm
Weight (device):
77 g
Dimensions (with giftbox):
225 (L) x 150 (W) x 75 (H) mm
Weight:
520 g
