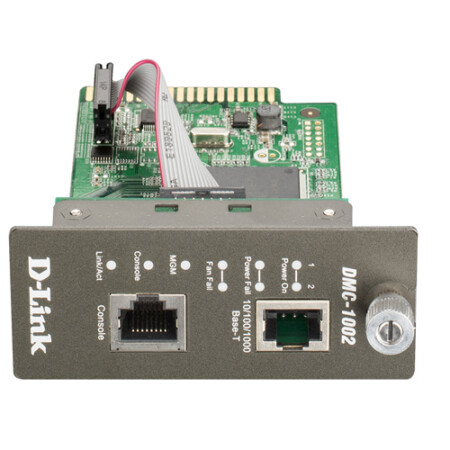

    The DMC-1002 management module allows administrators to remotely manage and monitor the real-time status of all media converters and power supplies in the chassis, and sends out alarms to alert you of any abnormal situations. DMC-1002 is equipped with one 10/100/1000Base-T port and one RJ-45 console port. The management module follows industry standards, including SNMP and HTTP, allowing you to monitor and manage the mounted media converters and power supplies from a third-party SNMP Network Management Station (NMS) or via a web browser.
    The management module periodically polls all converters and power supplies in the chassis to collect information regarding status and configuration settings. It also receives traps for events such as module hot-swaps and power failures as soon as they occur, as well as warning traps, upon which alarms may be set off to alert you.

    General features

    Number of Ports
    • 1 x 10/100/1000BASE-T RJ-45 port
    • 1 x RJ-45 Console port
    Diagnostic LEDs
    • Power 1, 2
    • Power Fail 1, 2
    • Fan Fail 1, 2
    • Console
    • MGM
    • Link/Activity
    • Part number
    • Revision
    • Description
    • Chassis reset
    • Power status
    Media Converter Modules
    • Link status
    • Converter type
    • Slot occupied
    • Part number
    • Revision
    • Cold start
    • Warm start
    • Link up
    • Link down
    • Authentication failure
    • Power supply on/off
    • Power supply insertion
    • Power supply removed
    • Module insertion
    • Module removal
    • Module unknown
    • Module failure
    Active Control
    • Link Loss Carry Forward (LLCF)
    • Link Loss Return (LLR)
    • Module name
    • IP address
    • Reset module
    • Redundant backup
    • Download software via TFTP/HTTP
    • Subnet mask
    • Default gateway
    • Telnet to console commands
    Supported Protocols
    • IP
    • SNMP
    • TFTP
    • ICMP
    • UDP
    • TCP
    • ARP
    • HTTP
    • 0.12 kg
    • 120 x 88 x 25 mm
    • Operating: 0° to 40°C
    • Storage: -20° to 70°C
    • Operating: 10% to 90% non-condensing
    • Storage: 5% to 90% non-condensing
    • FCC Class A
    • CE Class A
    • VCCI Class A
