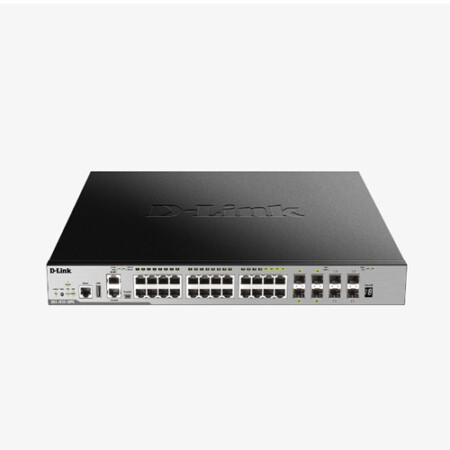

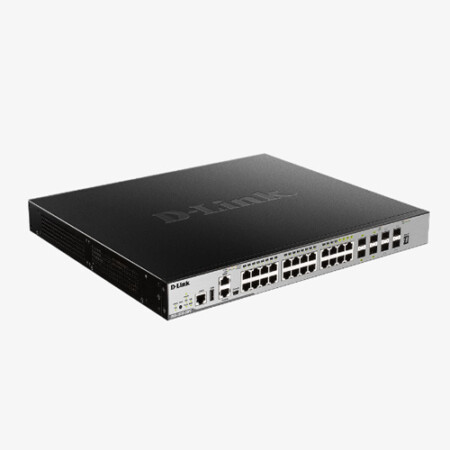

D Link (DGS-3630-28PC) 28-Port Layer 3 Stackable Managed PoE Gigabit Switch

Last Sold  3 sold in last 7 hours

Last updated: 05-10-2023

Item code: G1235GA

  • 10/100/1000BASE-T PoE ports20
  •  Ask a Question

    D Link (DGS-3630-28PC) 28-Port Layer 3 Stackable Managed PoE Gigabit Switch

    Ask a Question

      Estimated Delivery: Jun 01 – Jun 03
      ... people are viewing this right now
    Compare
    Guaranteed Safe Checkout

    Description:

    28-Port Layer 3 Stackable Managed PoE Gigabit Switch
    DGS-3630-28PC

    High performance, flexibility, fault tolerance, and advanced software features for SMBs, SMEs, large enterprises, and ISPs.

    • 20 x 10/100/1000BASE-T PoE ports
    • 4 x Combo 10/100/1000BASE-T PoE/SFP ports
    • 4 x 10G SFP+ ports
    • Supports IEEE 802.3af/at Power over Ethernet
    • 6 kV surge protection on all RJ-45 access ports
    • Switch Resource Management (SRM) for flexible management of system resources
    • Redundant Power Supply (RPS) support
    • MPLS L2VPM/L3 VPN support
    • Full L3 routing protocol support including OSPF, BGP, and ISIS for IPv4/IPv6
    • SDN-enabled switch, compatible with Openflow 1.3

    Specifications:

    10/100/1000BASE-T PoE ports 20
    RJ-45 Alarm port 1
    RJ-45 and Mini-USB port 1
    USB 2.0 port 1
    Combo 10/100/1000BASE-T PoE/SFP ports 4
    10G SFP+ ports 4
    RJ-45 Management port 1
    Switch Capacity 128 Gbps
    Max. Packet Forwarding Rate 95.24 Mpps
    Store & Forwarding Forwading Yes
    Maximum Heat Dissipation 1600.31 BTU/h
    Dimension 441mm x 380mm x 44mm
    Maximum Power Consumption PoE off: 44.3 W<br>PoE on: 469.3 W
    MTBF 259,222.76 hours
    Operating Altitude Up to 2000 M
    Operation Humidity 10%-95% RH
    Operation Temperature -5-50°C
    Standby Power Consumption xxx Watt
    Storage Humidity 5% ~ 95% RH
    Storage Temperature -40-70°C
    Weight xxkg
    Power Input AC Input: 100 – 240 VAC, 50-60 Hz
    Redundant Power Supply Yes
    CPU Speed 1GHz
    DRAM Size 1GB (Byte)–DDR3
    Flash Memory Size 1GB (Byte)
    Packet Buffer Size 4MB
    FAN Yes
    Comply with RoHS 6 Yes
    Power Saving By Link Status Yes
    Power Saving By Cable Length Yes
    Power Saving By LED Shut-Off Yes
    Power Saving By Port Shut-Off Yes
    Power Saving By System Hibernation Yes
    Time-based PoE Yes
    Energy Efficiency Ethernet (EEE) Yes
    PoE Budget 370 W
    PD Alive Yes
    Physical Stacking Yes
    Physical Stacking Bandwidth 80 G (support stacking trunk)
    Units Per Physical Stack 9
    Units Per SIM Stack 32
    D-Link Single IP Management (SIM) Yes
    MAC Address Table Size up to 68K (SRM's LAN mode)
    Black Hole MAC Address Yes
    802.3x Flow Control Yes
    Head-of-line (HOL) Blocking Prevention Yes
    BPDU Filtering Yes
    Root Guard Yes
    Loop Guard Yes
    802.1D Spanning Tree (STP) Yes
    802.1w Rapid Spanning Tree (RSTP) Yes
    802.1s Multiple Spanning Tree (MSTP) Yes
    Multiple ERPS Ring Yes
    G.8032 ERPS Yes (Support ERPSv2)
    Link Aggregation Group Per Device 32
    Max Port Per Link Aggregation Group 8
    802.1AX Link Aggregation Yes
    802.3ad Link Aggregation Yes
    Port Mirroring Yes
    VLAN Mirroring Yes
    RSPAN Yes
    Flow-based (ACL) mirroring Yes
    IGMP Snooping Yes
    Max IGMP Snooping Groups up to 8K (refer to SRM)
    IGMP Snooping Fast Leave Yes
    IGMP Proxy Reporting Yes
    IGMP Authentication Yes
    IGMP Accounting Yes
    MLD Snooping Yes
    MLD Snooping Groups up to 4K (refer to SRM)
    MLD Snooping Fast Leave Yes
    MLD Proxy Reporting Yes
    PIM Snooping Yes
    VLAN Groups 4,096
    Port-based VLAN Yes
    Subnet-based VLAN Yes
    MAC-based VLAN Yes
    Voice VLAN Yes
    Auto Surveillance VLAN Yes (v1.4)
    GVRP Yes
    VLAN Translation Yes
    Selective Q in Q Yes
    Asymmetric VLAN Yes
    Super VLAN Yes
    Private VLAN Yes
    VLAN trunking Yes
    802.1Q VLAN Yes
    802.1v Protocol-based VLAN Yes
    Double VLAN (Q in Q) Yes
    ISM VLAN (Multicast VLAN) Yes
    IP Interface Yes
    Max Number of IP Interface Yes
    Loopback Interface Yes
    Null Interface Yes
    ARP Entries up to 32K (SRM's IP mode)
    ARP Yes
    Gratuitous ARP Yes
    ND Entries up to 16K (SRM's IP mode)
    UDP Helper Yes
    IPv6 Tunneling Yes
    IPv6 Neighbor Discovery (ND) Yes
    VRRP Yes
    Routing Table Entry 16K (16,384)
    L3 Forwarding Table Entry up to 32K (SRM' IP mode)
    Default Route Yes
    Static Route Yes
    Null Route Yes
    Route Redistribution Yes
    Route Preference Setting Yes
    Equal-Cost Multi-Path Route (ECMP) Yes
    Weighted-Cost Multi-Path Route (WCMP) Yes
    Policy-based Route (PBR) Yes
    Graceful Restart (GR) Helper Yes
    Bidirectional Forwarding Detection (BFD) Yes
    RIPv1 Yes
    RIPv2 Yes
    RIPng Yes
    OSPFv2 Yes
    OSPFv3 Yes
    BGP4 Yes
    Announce on loopback interface Yes
    L3 IP Multicast Entry up to 8K (refer to SRM)
    IGMPv1 Yes
    IGMPv2 Yes
    IGMPv3 Yes
    SSM Mapping Yes
    IGMP Proxy Yes
    Limited IP Multicast (IGMP Filtering) Yes
    MLDv1 Yes
    MLDv2 Yes
    MLD Proxy Yes
    Limited IP Multicast (MLD Filtering) Yes
    DVMRPv3 Yes
    PIM-DM Yes
    PIM-DM v6 Yes
    PIM-SM Yes
    PIM-SM v6 Yes
    PIM-SSM Yes
    PIM Sparse-Dense Mode (PIM-SDM) Yes
    Multicast Source Discovery Protocol (MSDP) Yes
    VRF-Lite Yes
    Number of Queue 8
    Class of Service (CoS) Yes
    Two Rate Three Color Marker (trTCM) Yes
    Single Rate Three Color Marker (srTCM) Yes
    Rate Limiting Yes
    Time based QoS Yes (based on ACL)
    Remark 802.1p priority Yes
    Remark ToS/DSCP Yes (Support remark IP precedence/DSCP)
    Queue Handling Yes
    Strict Priority Queue (SPQ) Yes
    Weighted Round Robin (WRR) Yes
    Weighted Deficit Round Robin (WDRR) Yes
    SPQ + WRR Yes
    Weighted Random Early Detection (WRED) Yes
    802.1Qbb Priority-based Flow Control (PFC) Yes (only for 10G port)
    Port-based Bandwidth Control Yes
    Flow-based bandwidth Control Yes
    Queue-based Bandwidth Control Yes
    MAC Access List Yes
    IP Access List Yes
    IPv6 Access List Yes
    Time based ACL Yes
    CPU Interface Filtering Yes
    Max Access Control List (ACL) Entries 3072
    SSH Yes
    SSL Yes
    Port Security Yes
    Traffic Segmentation Yes
    IP Source Guard Yes
    DHCP Snooping Yes
    IPv6 Snooping Yes
    DHCPv6 Guard Yes
    IPv6 ND Inspection Yes
    D-Link Safeguard Engine Yes
    L3 Control Packet Filtering Yes
    DHCP Server Screening Yes
    DHCP Client Filtering Yes
    ARP Spoofing Prevention Yes
    BPDU Attack Protection Yes
    DoS Attack Prevention Yes
    Broadcast/Multicast/Unicast Storm Control Yes
    IP-MAC-Port Binding (IMPB) Yes
    Dynamic ARP Inspection (DAI) Yes
    IPv6 Route Advertisement (RA) Guard Yes
    Duplicate Address Detection (DAD) Yes
    NetBIOS/NetBEUI filtering Yes
    Port based WAC Authentication Yes
    Host based WAC Authentication Yes
    Identity Driven WAC Policy Assignment Yes
    Port based MAC Authentication Yes
    Host based MAC Authentication Yes
    Identity Driven MAC Policy Assignment Yes
    Compound Authentication Yes
    Guest VLAN Yes
    Privilege Level for Management Access Yes
    Authentication for Management Access Yes
    RADIUS Yes
    RADIUS Accounting Yes
    Trusted Host Yes (via ACL)
    Authentication Database Failover Yes
    802.1X Yes
    Port based 802.1X Authentication Yes
    Host based 802.1X Authentication Yes
    Identity Driven 802.1X Policy Assignment Yes
    Web-based Access Control (WAC) Yes
    MAC-based Access Control (MAC) Yes
    Microsoft® NAP Support Yes
    TACACS+ Yes
    TACACS+ Accounting Yes
    Cable Diagnostics Yes
    Dying Gasp Yes
    802.3ah Ethernet Link OAM Yes
    D-link Unidirectional Link Detection (DULD) Yes
    802.1ag Connectivity Fault Management (CFM) Yes
    Y.1731 OAM Yes
    Optical Transceiver Digital Diagnostic Monitoring (DDM) Yes
    Network Time Protocol (NTP) Yes
    Precision Time Protocol (PTP) Yes
    Web-based GUI Yes
    Telnet Server Yes
    Telnet Client Yes
    SNMP Yes
    SNMP Trap Yes
    TFTP Client Yes
    FTP Client Yes
    ZModem Yes
    System Log Yes (RFC3164 only)
    Command Logging Yes
    SMTP Yes
    RMONv1 Yes
    RMONv2 Yes
    LLDP Yes
    LLDP-MED Yes
    DHCP Auto-configuration Yes
    DHCP Auto-image Yes
    DHCP relay Yes
    DHCP Server Yes
    Flash file system Yes
    Multiple Images Yes
    Multiple Configurations Yes
    Editable Login Banner Yes
    Editable System Prompt Yes
    DNS Relay Yes
    DNS Client Yes
    Debug Command Yes
    Password Recovery Yes
    Password Encryption Yes
    MTU Setting Yes
    Ping Yes
    Traceroute Yes
    sFlow Yes
    D-Link Network Assistant Yes
    Command Line Interface (CLI) Yes (Industrial-Like)
    Secured FTP (SFTP) Client Yes
    Secured FTP (SFTP) Server Yes
    Remote Copy Protocol (RCP) Yes
    D-Link Discover Protocol (DDP) Yes (v0.26)
    DHCP/BootP Client Yes
    Microsoft® Network Load Balancing (NLB) Yes
    Switch Resource Management (SRM) Yes
    D-Link License Management System (DLMS) Yes
    IPv6 Ready Logo pre-testing only
    Jumbo Frame 12K Bytes
    L2 Protocol Tunneling Yes
    Flex Link Yes
    iSCSI Awareness Yes
    Loopback Detection (LBD) Yes

    Brand

    D-LINK
