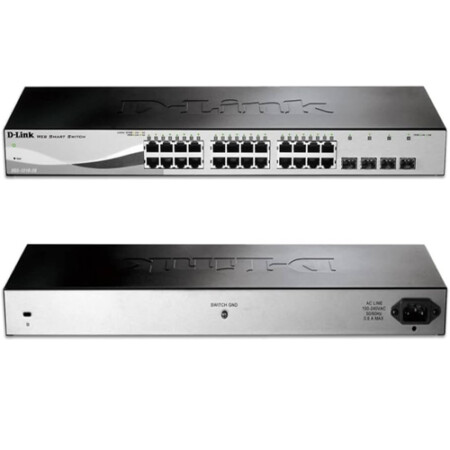

D Link DGS-1210-28 28-Port Gigabit Smart Managed Switch

Last Sold  4 sold in last 13 hours

Last updated: 23-09-2023

Item code: G1235GA

  •  Ask a Question

    D Link DGS-1210-28 28-Port Gigabit Smart Managed Switch

    AED 425

    Ask a Question

      Estimated Delivery: Apr 17 – Apr 19
      ... people are viewing this right now
    Compare
    Guaranteed Safe Checkout

    AED 425

    +

    Overview:

    28-Port Gigabit Smart Managed Switch
    DGS-1210-28

    Cost-efficient and flexible solution for expanding any business network.

    • 24 x 10/100/1000BASE-T ports
    • 4 x Gigabit RJ45/SFP Combo ports
    • Advanced L2 switching and security features
    • L2+ Static Routing
    • Optional “standard mode” or “surveillance mode” management user interface

    Specifications:

    1000Base-T Interface 24
    Combo 1000Base-T/SFP 4
    Auto MDI/MDIX Yes
    10/100/1000BASE-T ports 24
    Combo 10/100/1000BASE-T/SFP ports 4
    Switch Capacity 56 Gbps
    Max. Packet Forwarding Rate 41.7 Mpps
    Store & Forwarding Forwading Yes
    Dimension 440mm x 140 mm x 44mm
    Weight 2.15 kg
    Operation Temperature -5 - 50°C
    Storage Temperature -20-70°C
    Operation Humidity 0% - 95% RH
    Storage Humidity 0% ~ 95% RH
    Operating Altitude 1500 meters
    Maximum Power Consumption 17.32 W/100 V <br>16.94 W/240 V
    Standby Power Consumption 6.49 W/100V / 6.55 W/240V
    Maximum Heat Dissipation 59.09 BTU/hr (100V) <br>57.79 BTU/hr (240V)
    Acoustic 0 dB
    MTBF 992,594 hours
    Power Input 100-240 VAC
    CPU Speed 500MHz
    DRAM Size DDR3 128MB
    Flash Memory Size 32MB
    Packet Buffer Size 4.1MBits
    FAN Fanless
    Comply with RoHS 6 Yes
    Energy Efficiency Ethernet (EEE) Yes
    Power Saving By Link Status Yes
    Power Saving By Cable Length Yes
    Power Saving By Port Shut-Off Yes
    Power Saving By System Hibernation Yes
    Time-based PoE Yes
    MAC Address Table Size 8K
    802.3x Flow Control Yes
    Head-of-line (HOL) Blocking Prevention Yes
    802.1D Spanning Tree (STP) Yes
    802.1w Rapid Spanning Tree (RSTP) Yes
    802.1s Multiple Spanning Tree (MSTP) Yes
    Root Restriction Yes
    802.3ad Link Aggregation Yes
    Link Aggregation Group Per Device 8
    Max Port Per Link Aggregation Group 8
    Port Mirroring Yes
    Jumbo Frame 10,000 Bytes
    Loopback Detection (LBD) Yes
    IGMP Snooping Yes
    Max IGMP Snooping Groups 256
    IGMP Snooping Fast Leave Yes
    MLD Snooping Yes
    MLD Snooping Groups Yes
    MLD Snooping Fast Leave Yes
    802.1Q VLAN Yes
    VLAN Groups Yes
    Port-based VLAN Yes
    Voice VLAN Yes
    Auto Surveillance VLAN Yes
    Asymmetric VLAN Yes
    IP Interface Yes
    ARP Yes
    Max Number of IP Interface 4
    ARP Entries Yes
    IPv6 Neighbor Discovery (ND) Yes
    ND Entries 128
    Default Route Yes
    Static Route Yes
    Class of Service (CoS) Yes
    Number of Queue Yes
    Strict Priority Queue (SPQ) Yes
    Weighted Round Robin (WRR) Yes
    Port-based Bandwidth Control Yes
    MAC Access List Yes
    Max Access Control List (ACL) Entries Yes
    IP Access List Yes
    IPv6 Access List Yes
    SSH Yes
    SSL Yes (only support TLS 1.0)
    Port Security Yes
    Broadcast/Multicast/Unicast Storm Control Yes
    Traffic Segmentation Yes
    D-Link Safeguard Engine Yes
    Smart IP-MAC-Port Binding (Smart IMPB) Yes
    DHCP Server Screening Yes
    ARP Spoofing Prevention Yes
    DoS Attack Prevention Yes
    Port based 802.1X Authentication Yes
    802.1X Yes
    Authentication for Management Access Yes
    RADIUS Yes
    Trusted Host Yes
    Cable Diagnostics Yes
    Simple Network Time Protocol (SNTP) Yes
    Web-based GUI Yes
    Command Line Interface (CLI) Yes (Limited CLI via telnet)
    Telnet Server Yes
    SNMP Yes
    SNMP Trap Yes
    TFTP Client Yes
    System Log Yes
    RMONv1 Yes
    LLDP-MED Yes
    LLDP Yes
    DHCP/BootP Client Yes
    D-Link Discover Protocol (DDP) Yes (v0.26)
    DHCP Auto-configuration Yes
    DHCP relay Yes
    Dual Images Yes
    Dual Configurations Yes
    Debug Command Yes
    Ping Yes
    D-Link Network Assistant Yes (Chrome edition)
    Smart Wizard Yes
