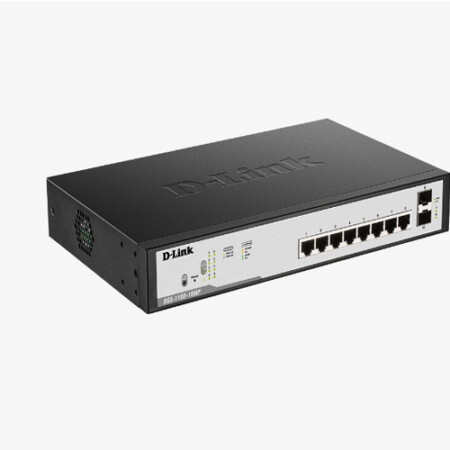

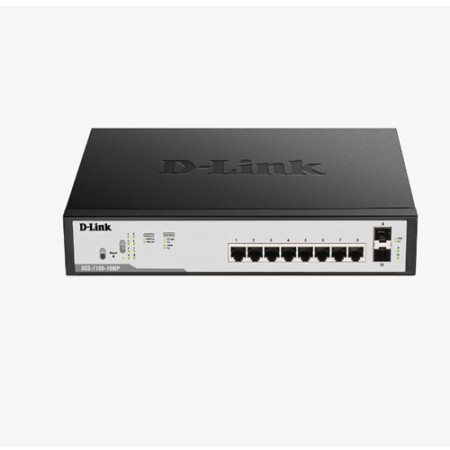

D Link DGS-1100-10MP 10-Port Gigabit PoE Smart Managed Switch
3 sold in last 5 hoursLast updated: 05-10-2023
Item code: G1235GA
- Switch Capacity20 Gbps
Description:
10-Port Gigabit PoE Smart Managed Switch
DGS-1100-10MP
Powerful and flexible networking solution for small, medium, and enterprise businesses.
- 8 x 10/100/1000BASE-T PoE ports
- 2 x SFP ports
- Supports IEEE 802.3at PoE
- Innovative D-Link Green energy saving features
- Complete web interface for comprehensive switch management
Specifications:
| 1000Base-T PoE Interface | 8 |
|---|---|
| 1000M SFP Interface | 2 |
| Auto MDI/MDIX | Yes |
| 10/100/1000BASE-T PoE ports | 8 |
| SFP ports | 2 |
| Switch Capacity | 20 Gbps |
| Max. Packet Forwarding Rate | 14.88 Mpps |
| Power Input | AC: 100-240V |
| Comply with RoHS 6 | Yes |
| Energy Efficiency Ethernet (EEE) | Yes |
| Power Saving By Link Status | Yes |
| Power Saving By LED Shut-Off | Yes |
| Power Saving By Port Shut-Off | Yes |
| Power Saving By System Hibernation | Yes |
| Time-based PoE | Yes |
| Maximum PoE Budget | 130W |
| PoE Budget | 130 W (30 W max. per PoE port) |
| MAC Address Table Size | 8K |
| 802.3x Flow Control | Yes |
| Head-of-line (HOL) Blocking Prevention | Yes |
| 802.1D Spanning Tree (STP) | Yes |
| 802.1w Rapid Spanning Tree (RSTP) | Yes |
| 802.1AX Link Aggregation | Yes |
| 802.3ad Link Aggregation | Yes |
| Link Aggregation Group Per Device | 5 |
| Max Port Per Link Aggregation Group | 8 |
| Port Mirroring | Yes |
| Jumbo Frame | 10240 Byte |
| Loopback Detection (LBD) | Yes |
| IGMP Snooping | Yes |
| Max IGMP Snooping Groups | 64 |
| 802.1Q VLAN | Yes |
| Port-based VLAN | Yes |
| Voice VLAN | Yes |
| Asymmetric VLAN | Yes |
| Auto Surveillance VLAN | Yes(2.0) |
| Provider Backbone Bridge (PBB) | Yes |
| Number of Queue | 8 |
| Class of Service (CoS) | Yes |
| Time based QoS | Yes |
| Strict Priority Queue (SPQ) | Yes |
| Weighted Round Robin (WRR) | Yes |
| Deficit Round Robin (DRR) | Yes |
| Port-based Bandwidth Control | Yes |
| SSL | Yes |
| Broadcast/Multicast/Unicast Storm Control | Yes |
| Traffic Segmentation | Yes |
| D-Link Safeguard Engine | Yes |
| DoS Attack Prevention | Yes |
| Cable Diagnostics | Yes |
| Simple Network Time Protocol (SNTP) | Yes |
| Web-based GUI | Yes |
| SNMP | Yes |
| SNMP Trap | Yes |
| TFTP Client | Yes |
| System Log | Yes |
| LLDP | Yes |
| D-Link Discover Protocol (DDP) | Yes |
| DHCP/BootP Client | Yes |
| Dual Images | Yes |
| Ping | Yes |
| D-Link Network Assistant | Yes |
| Smart Wizard | Yes |
| Store-and-Forwarding | Yes |
| Dimension | 294 x 180x 44 mm |
| Weight | 1.67 Kg |
| Operation Temperature | -10-55°C |
| Storage Temperature | -20-70°C |
| Operation Humidity | 0%-95% RH |
| Storage Humidity | 50% ~ 90% RH |
| Operating Altitude | 2000 m |
| Maximum Power Consumption | 154 W (PoE on)<br> 10.79 W (PoE off) |
| Maximum Heat Dissipation | 570.51 BTU/hr |
| Acoustic | 51.9 dB(A) |
| MTBF | 376,888 hours |
| CPU Speed | 400MHz |
| Flash Memory Size | 32MB |
| DRAM Size | 128MB DDR3 |
| Packet Buffer Size | 4.1MBytes |
| FAN | Fan *1 |
