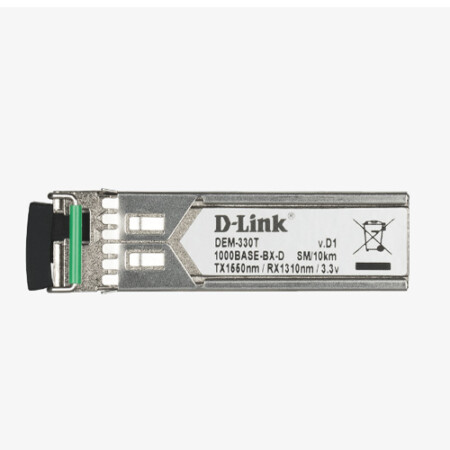

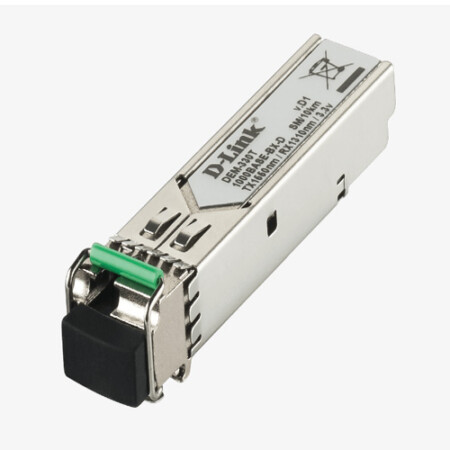

D Link (DEM-330T)Gigabit WEM (BiDi) Single Mode 10Km SFP Transceiver

Last Sold  3 sold in last 5 hours

Last updated: 05-10-2023

Item code: G1235GA

  • Transceiver Type:  SFP
  •  Ask a Question

    D Link (DEM-330T)Gigabit WEM (BiDi) Single Mode 10Km SFP Transceiver

    Ask a Question

      Estimated Delivery: Jun 01 – Jun 03
      ... people are viewing this right now
    Compare
    Guaranteed Safe Checkout

    Description:

    Gigabit WDM (BiDi) Single-Mode 10 Km SFP Transceiver
    DEM-330T

    Easy expansion for Gigabit Ethernet networks.

    • Small Form-Factor Pluggable (SFP)
    • Compliant with Multi-Source Agreement (MSA)
    • Hot-pluggable
    • Wavelength TX 1550 nm, RX 1310 nm
    • FDA, CDRH, TUV Laser Eye safety certified
    • TTL signal detect indicator
    • Metal enclosure for lower EMI
    • Compliant with IEEE 802.3ah

    Specifications:

    Hardware version B1
    Hot Pluggable Yes
    MSA Compliant Yes
    RoHS Compliant Yes
    Compliant Standard IEEE802.3z 1000BASE-BX-D
    Transceiver Type SFP
    Fiber Channel FC-PI standard 100-SM-LC-L
    Fiber Media support Single-Mode
    Distance 10KM
    Speed 1.25Gbps
    connector Simplex LC Connector
    single/bi Direction WDM Bi-direction
    Wavelength TX: 1550nm RX: 1310nm
    Output Optical Power (TX Optical Power) MAX.: -3dBm
    Interface MIN.: -21 dBm
    Input Optical Power (RX Optical Power) MAX.: -3 dBm
    Sensitivity -21dBm
    Cable Type single-mode 9/125um fiber
    Power 3.3V
    Max Input Current 300 mA
    MTBF (hours) 880,000
    Power Budget (MIN Power Budget) 11dB
    MAX Power Budget 18dB
    Heat Generated 1.782kJ/h
    Operation Temperature 0~70
    Storage Temperature -40~85
    Humidity (Storage) 5~95
    Dimension ( W x D x H ) 13.5*56.6*8.5
    Weight 21+/-1g
    Humidity (Operating) 5~95

    Brand

    D-LINK
