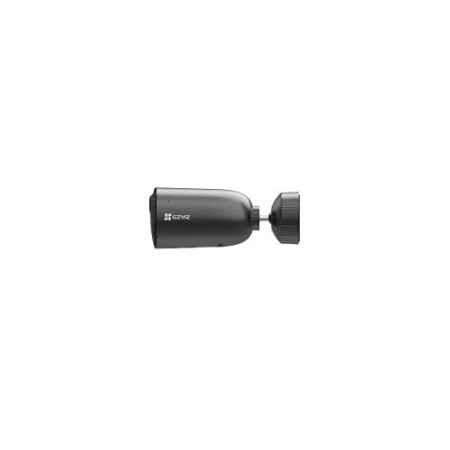

CS E83 R100 2C3 WFL
Last updated: 31-05-2023
Model: CS E83 R100 2C3 WFL
Item Code: G1220GA
- Image Sensor 1/2.8” 3-Megapixel Progressive Scan CMOS Sensor
- Minimum Illumination 0.01 Lux @(F2.0, AGC ON), 0 Lux with IR
- Shutter Speed Self-adaptive shutter
- Ask a Question
CS E83 R100 2C3 WFL
AED 500AED 480Ask a Question
Specifications
Model CS-EB3 (3MP)
Camera
Image Sensor 1/2.8” 3-Megapixel Progressive Scan CMOS Sensor
Minimum Illumination 0.01 Lux @(F2.0, AGC ON), 0 Lux with IR
Shutter Speed Self-adaptive shutter
Lens 2.8mm@ F2.0; 131° (Diagonal), 110° (Horizontal), 58° (Vertical)
Day & Night IR-Cut filter with auto-switching
DNR 3D DNR
Night Vision IR Distance:15m, Color Night Vision Distance:15m
Video & Audio
Max. Resolution 2304 × 1296
Frame Rate 15fps. Self-Adaptive during network transmission
Video Compression H.265 / H.264
Video Bit Rate Quad HD; Full HD, Hi-Def. Adaptive bit rate
Audio Bit Rate Self-Adaptive
Max. Bitrate 1.5 Mbps
Network
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20 MHz
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps
Wi-Fi Pairing AP pairing
Protocol EZVIZ cloud proprietary protocol
Interface Protocol EZVIZ cloud proprietary protocol
Minimum Network Requirement 4Mbps
Function
Smart Alarm Smart Human Motion Detection
Customized Alert Area Supports
Two-way Talk Supports
General Function Anti-Flicker, Heart Beat, Password Protection, Watermark
Storage
Local Storage Supports microSD Card (Up to 256 GB)
Cloud Storage Supports EZVIZ CloudPlay storage (Subscription required)
General
Operating Conditions -20 °C to 50 °C (-4 °F to 122 °F ), humidity 95% or less (Non-condensing)
IP Grade Weatherproof Design
Power Supply DC 5V / 2A (Purchased Separately)
Battery Capacity 5200 mAh
Power Consumption Max. 10W
Product Dimensions 105.9 × 62.8 × 62.8 mm (4.17 × 2.47 × 2.47 inch)
Packaging Dimensions 103 × 103 × 186 mm (4.06 × 4.06 × 7.32 inch)
Weight 522 g ( 18.41 oz )
In the box
In the box – EB3 Camera
– Screw Base
– USB Cable
– Mounting plate
– Drill Template
– Screw Kit
– Regulatory Information
– Quick Start Guide
Certifications
Certifications CE / FCC / UKCA / WEEE / RoSH / REACH
