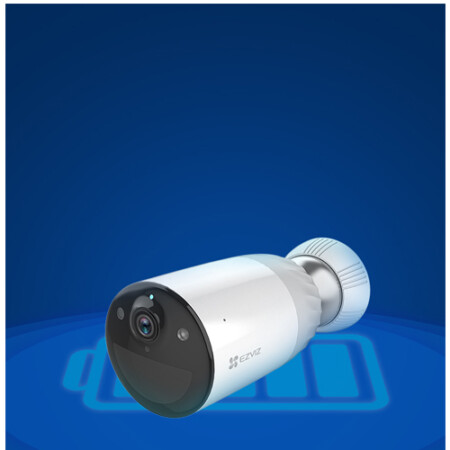

CS BC1 B2 2MP

Last Sold  4 sold in last 16 hours

Last updated: 31-05-2023

Model: CS BC1 B2 2MP

Item Code: G1220GA

  • Image sensor 1/2.8” 2-Megapixel
  • Progressive Scan CMOS Sensor
  • Lens 2.8 mm@F1.6; 128° (Diagonal), 108° (Horizontal)
  • Lens Mount M12
  •  Ask a Question

    CS BC1 B2 2MP

    AED 900

    Ask a Question

      Estimated Delivery: Apr 17 – Apr 19
      ... people are viewing this right now
    Compare
    Guaranteed Safe Checkout

    AED 900

    +
    • Specifications

      Model CS-BC1-B2
      System Parameters
      Processor High-Performance Embedded SOC Processor
      Operating System Linux
      Camera Parameters
      Image sensor 1/2.8” 2-Megapixel Progressive Scan CMOS Sensor
      Lens 2.8 mm @ F1.6; 128° (Diagonal), 108° (Horizontal)
      Lens Mount M12
      Night Vision IR Distance:10m, IR-cut filter with auto-switching
      Video Parameters
      Video Compression H.265
      Max. Resolution FHD 1920 x 1080
      Frame Rate 15fps. Self-Adaptive during network transmission
      DNR 3D DNR
      WDR DWDR
      Audio Parameters
      Audio Input Built-in omnidirectional microphone
      Audio Output Built-in loudspeaker
      Audio Quality Noise suppression
      Camera Event
      Sensor PIR Motion Detection Sensor
      Alarm Customized Alert Area
      Siren 105 dB built-in siren
      Camera Network Parameters and Storage
      Wireless Built-in 2.4G Wi-Fi
      Network Configuration AP Pairing
      Minimum Network Requirement 1Mbp
      Local Storage Support MicroSD card up to 256 GB in Base Station
      Cloud Storage EZVIZ Cloud Storage
      Base Station Parameters
      Camera pairing Support up to 4 BC1 cameras
      Buttons 1 SYNC button; 1 POWER button; 1 RESET button (hold 5 seconds to RESET)
      Siren 125 dB built-in siren
      Local Storage MicroSD card slot on the base station (up to 256 GB)
      Antenna 2.4G: 2 internal @ 3dB
      Indicator RGB 3 LED Indicator; 1 network Indicator
      USB Do not support
      Network Interface 1 RJ-45 10/100Mbps Self-adaptive Ethernet WAN interface.
      Wireless Interface Support 2.4G connection. The actual available channels vary according to the sales area regulations. Theoretical maximum rate is 144M at 802.11b/g/n.
      Power 12V/1A typical power consumption < 12watts; The adapter supports a wide voltage range from 100V~240V
      General
      Operating Conditions -20°C to 45°C (-4°F to 113 °F), Humidity 95% or less (non-condensing)
      Power Supply 12900mAh Rechargeable Lithium Battery or 5V DC
      Power Consumption Max. 5W
      IP Grade IP 66
      Dimensions Camera: 104.76 x 62.80 x 62.80 mm (4.12 x 2.47 x 2.47 inch)
      Base: 81.97 x 63.97 x 160.22 mm (3.23 x 2.52 x 6.31 inch)
      Packaging Dimensions 260.00 x 217.00 x 180.00 mm (10.24 x 8.54 x 7.09 inch)
      Weight 1684 g (59 oz)
      In the box
      In the box: – 2x BC1 Cameras
      – Base Station
      – 2x Magnetic Bases
      – 2x Screw Bases
      – Power Adapter (For Base Station)
      – 1x Power Adapter (For Camera)
      – 1x USB Cable
      – 2x Mounting Plates
      – 2x Drill Templates
      – 2x Screw Kits
      – Regulatory Information
      – Quick Start Guide
      Certifications
      Certifications: CE/FCC/WEEE/ROHS/REACH/UL

    Brand

    EZVIZ
