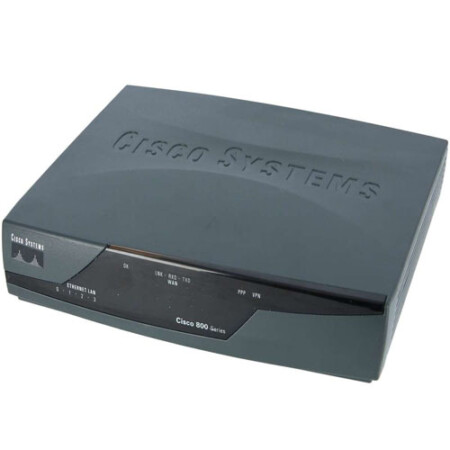

CISCO851-K9 Overview

Cisco 850 Series integrated services routers are fixed-configuration routers that support broadband cable and Asymmetric DSL (ADSL) over analog telephone lines connections in small offices. CISCO851-K9 provides the performance needed to run concurrent services, including firewall and encryption for VPNs and optional 802.11b/g for wireless networking. The Cisco Router and Security Device Manager (SDM) Web-based configuration tool simplifies setup and deployment, and centralized management capabilities give network managers visibility and control of router configurations at the remote site.

CISCO851-K9 Technical Specifications

Cisco Router Ethernet SOHO Security Router

Product Description: Cisco 851 Ethernet to Ethernet Router
Manufacturer Part Number: CISCO851-K9
Product Type: Router + 4-port switch (integrated)
Default DRAM: 64 MB
Maximum DRAM: 64MB
Default Flash Memory: 20 MB
Maximum Flash Memory: 20MB
Console/Auxillary Port: RJ-45
External Power Supply: Universal 100 to 240 VAC
Dimensions (H x W x D): 2.00 x 10.25 x 8.50 in.
Weight: 2.10 lb
WAN Interface: 10/100 Mbps Fast Ethernet
LAN Interfaces: 4-port 10/100 FE managed switch
802.11g/n Option: No
Power
AC input voltage: 100 to 240 VAC
Frequency: 50 to 60 Hz
Maximum output power: 26W
Output voltages: 5 and 12V
Environmental Operating Range
Nonoperating temperature: -4 to 149°F (-20 to 65°C)
Nonoperating humidity: 5 to 95 percent relative humidity (noncondensing)
Nonoperating altitude: 0 to 15,000 ft (0 to 4570m)
Operating temperature: 32 to 104°F (0 to 40°C)
Operating humidity: 10 to 85 percent relative humidity (noncondensing)
Operating altitude: 0 to 10,000 ft (0 to 3000m)
