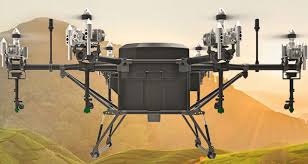

Autonomous Obstacle Avoidance Agricultural Spraying Drone,Carbon Fiber Frame 15Kg Payload with 6 Spray Nozzles
Last Updated:07/06/2023 Item Code: xxxxHK
- Ask a Question
Autonomous Obstacle Avoidance Agricultural Spraying Drone,Carbon Fiber Frame 15Kg Payload with 6 Spray Nozzles
Ask a Question
Specification:
Class | Professional Industrial Class | |||||
Take Off Weight | Standard: 35KG | |||||
MTW: 45KG | ||||||
Hover Accuracy | Hover Time: 25min(16000MA,TW 20KG) | |||||
11min(16000ma TW 35KG) | ||||||
Tested by Sea Level;Wind Speed <3m/s | ||||||
Flight Speed | Max Working Flight Speed:8m/s | |||||
Max Flight Speed:12m/s | ||||||
Flight Height | ASL 3000m | |||||
Wheelbase | 1650mm | |||||
Recharger | 12S Dual 20A | |||||
Recharging Voltage;44V | ||||||
Rated Power:1000W | ||||||
Battery | Power Battery:12S16000ma | |||||
Power | Flight | |||||
Rated Power:7920W | ||||||
Hover Power :3960W | ||||||
RC | ||||||
Working Power:9W | ||||||
Body Parameter | ||||||
Dimension | Arm length:580mm | |||||
External Size:1650*1650*720mm,(Arms Spread without Propellers) | ||||||
680*680*720mm(Fold Size) | ||||||
Weight | Complete Body:16KG (Without Battery) | |||||
Ambient | Flight Advised Temperature:0C-40C | |||||
RC Working Temperature:-10C-40C | ||||||
Storage Temp:Less than 3months,-20C—45C | ||||||
More than 3months:22C—28C | ||||||
Recharging Temp:0C—40C | ||||||
Spray System | Spray System | |||||
Tank Capacity:15L | ||||||
Working Payload:15KG | ||||||
Nozzle:110Angle 001 Fan Nozzle,Flow:0.379L/min | ||||||
Advise:Nozzle110Angle 015 Fan Nozzle Flow:0.525L/min | ||||||
Numbers:6 | ||||||
Max Spray Rate:Each110Angle 001 Fan Nozzle 0.43L/min | ||||||
Atomizing Particle Size:110Angle001 Fan Nozzle:130-250um | ||||||
Dynamical System | Motor | |||||
Stator Size:83*20mm | ||||||
KV:120rpm/V | ||||||
Pull:11..8KG/rotor | ||||||
Rated Power :1320W | ||||||
Weight:780g | ||||||
ESC | ||||||
Max Working Current:(Continous )100A | ||||||
Working Voltage:50..4V | ||||||
Compatible Signal Frequency:621HZ | ||||||
Propeller:30inch | ||||||
Material:Carbon Fiber | ||||||
Dimension:30*10.5inch | ||||||
Weight:110g |
