Description:

Output Power Capacity   16.0kWatts / 20.0kVA

Nominal Output Voltage   230V

Output Voltage Distortion      Less than 5%

Load Crest Factor   3: 1

Topology    Double Conversion Online

Waveform type     Sine wave

Overload Operation   60 seconds @ 125% and 30 seconds @ 150%

Nominal Input Voltage    230V, 400V 3PH

Input frequency     40 – 70 Hz (auto sensing)

Input voltage range for main operations   160 – 280V

Input Total Harmonic Distortion     Less than 5% for a full load

Maximum Input Current    115.0A

Input Power Factor at Full Load   0.98

Battery type   Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof

Included Battery Modules 4

Typical recharge time   2.5hour(s)

Nominal Battery Voltage     +/-192 V (split battery referenced to neutral)

Interface Port(s)     DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot

Control panel      Multi-function LCD status and control console

Audible Alarm    Audible and visible alarms: configurable delays

Emergency Power Off (EPO)    Yes

1 Year Warranty

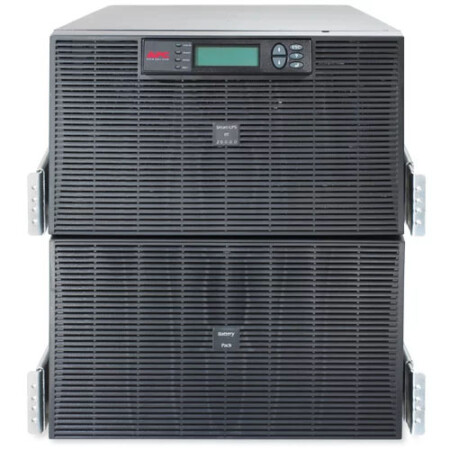

APC Smart-UPS RT

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Automatic internal bypass

Supplies utility power to the connected loads in the event of a UPS power overload or fault.

Manageability

LED status indicators

Quickly understand unit and power status with visual indicators.

Network manageable

Provides remote power management of the UPS over the network.

InfraStruXure Manager Compatible

Enables centralized management via the APC InfraStruXure Manager.

SmartSlot

Customize UPS capabilities with management cards.

Serial connectivity

Provides management of the UPS via a serial port.

Adaptability

Rack/Tower convertible

Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Flash upgradeable firmware

Install maintenance releases of firmware remotely using FTP.

Plug-and-Play external batteries

Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.

Serviceability

Predictive failure notification

Provides early-warning fault analysis ensuring proactive component replacement.

Disconnected battery notification

Warns when a battery is not available to provide backup power.

User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Audible alarms

Provides notification of changing utility power and UPS power conditions

Protection

Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.

Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

Cold-start capable

Provides temporary battery power when the utility power is out.
