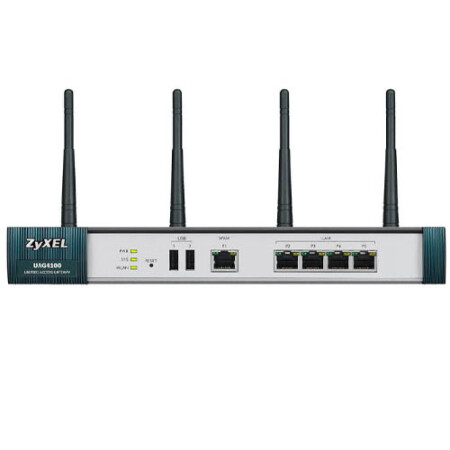

Zyxel UAG4100 Hotspot Gateway
Ask a Question
Overview:
The All-in-one Guest Access Solution of Tomorrow, Delivered Today
High quality Internet service is no longer optional for hospitality businesses. It is a guest expectation and a key to customer satisfaction. Yet, providing satisfactory Internet access is not simply a matter of installing Ethernet cables and wireless access points where guests need them. Hospitality businesses need to address the issues of access management, regulation compliance, and providing sufficient bandwidth for an exploding amount of wireless mobile devices.
The Zyxel UAG4100 Unified Access Gateway is a next-generation, all-in-one wireless hotspot/access gateway designed to fulfill the hospitality challenges of both today and tomorrow. In addition to account management, billing, and data retention capabilities, the UAG4100 offers premium features—like 802.11 a/b/g/n dual-radio Wi-Fi and a built-in WLAN controller—to deliver better scalability, capacity, and performance to fulfill tomorrow’s guest access demands. The built-in WLAN controller can manage up to 16 APs, which makes the UAG4100 ideal for multi-room network deployments in smaller accommodation facilities like small hotels, hostels, or B&Bs (bread and breakfast). Used with the SP350E ticket printer, on the other hand, the UAG4100 is the perfect solution for single-location Wi-Fi hotspot deployments in hotel lobbies, restaurants, or cafés.
- IEEE 802.11 a/b/g/n dual-radio (2.4 GHz and 5 GHz) design
- Supports 200 concurrent logins by default and up to 300 via license upgrade
- Integrated account generator, Web-based authentication portal and billing system
- Supports external RADIUS servers
- Per account bandwidth management
- SP350E Service Gateway Printer enables one-click account and billing generation
- SMS ticketing with Via Nett protocol support
- Built-in WLAN controller (supports 8 APs by default and up to 16 APs via license upgrade)
- Facilitates compliance with data retention regulations
Specifications:
UAG4100 Specifications | ||
---|---|---|
Hardware Specifications | ||
10/100/1000 Mbps RJ-45 ports | 4 x LAN, 1 x WAN | |
USB ports | 2 | |
Ticket printer support | Yes (up to 10 printers) | |
System Capacity & Performance*1 | ||
Routing throughput (Mbps)*2 | 200 | |
Concurrent logins (default/max.) | 200/300 | |
Max. concurrent sessions*3 | 40,000 | |
DHCP pool size | 4,096 | |
WLAN Management | ||
Built-in WLAN controller | Yes | |
Managed AP number (default/max.) | 8/16 | |
SSID | 8 | |
Wireless Specifications | ||
Standard compliance | 802.11 a/b/g/n | |
Radio | 2 | |
Antennas | 4 (detachable) | |
Wireless throughput (Mbps)*4 | 187 (2.4 GHz); 190 (5 GHz) | |
Max. output power (2.4 GHz) | 802.11b: 12.5 dBm @ 11 Mbps 802.11g: 12 dBm @ 54 Mbps 802.11n: 12 dBm @ 20 MHz 802.11n: 13 dBm @ 40 MHz | |
Max. output power (5 GHz) | 802.11a: 22.5 dBm @ 54 Mbps 802.11n: 23 dBm @ 20 MHz 802.11n: 23 dBm @ 40 MHz | |
Radio sensitivity (2.4 GHz) | 802.11b: ≤ -90 dBm @ 11 Mbps 802.11g: ≤ -79 dBm @ 54 Mbps 802.11n: ≤ -72 dBm @ 20 MHz 802.11n: ≤ -70 dBm @ 40 MHz | |
Radio sensitivity (5 GHz) | 802.11a: ≤ -79 dBm @ 54 Mbps 802.11n: ≤ -72 dBm @ 20 MHz 802.11n: ≤ -68 dBm @ 40 MHz | |
Power Requirements | ||
Power input | 12 V DC, 3 A max. | |
Max. power consumption (watt) | 28 | |
Physical Specifications | ||
Item | Dimensions (WxDxH)(mm/in.) | 272 x 171 x 36 / 10.71 x 6.73 x 1.42 |
Weight (kg/lb.) | 1.46 / 3.22 | |
Packing | Dimensions (WxDxH)(mm/in.) | 416 x 247 x 71 / 16.38 x 9.72 x 2.80 |
Weight (kg/lb.) | 2.3 / 5.07 | |
Included accessories |
|
|
Environmental Specifications | ||
Operating | Temperature | 0°C to 40°C (32°F to 104°F) |
Humidity | 10% to 90% (non-condensing) | |
Storage | Temperature | -30°C to 70°C (-22°F to 158°F) |
Humidity | 10% to 90% (non-condensing) | |
MTBF (hr) | 497,644 | |
Certifications | ||
EMC | FCC Part 15 (Class B), CE EMC (Class B), C-Tick (Class B), BSMI | |
Safety | LVD (EN60950-1), BSMI |
Note: *1: Actual performance may vary depending on network conditions and activated applications. *2: Routing throughput measured using the industry standard IXIA IxLoad testing tool (1,460-byte TCP packets). *3: Maximum sessions measured using the industry standard IXIA IxLoad testing tool. *4: Wireless throughput measured using the industry standard IXIA IxLoad testing tool (20/40 MHz, WPA2-PSK).
