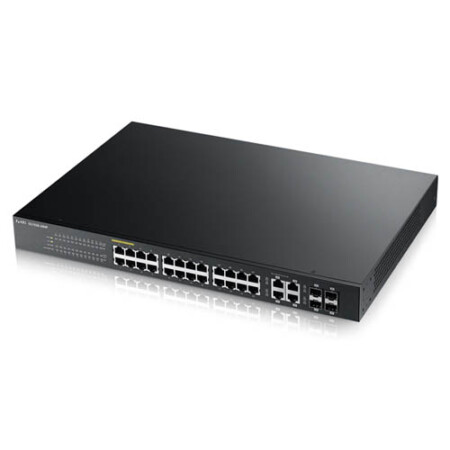

Zyxel 24 port GbE Smart Managed Switch GS1920-24HP

Last Sold  1 sold in last 16 hours

Last Updated: 12-12-2023

Item Code: G1235GA

  •  Ask a Question

    Zyxel 24 port GbE Smart Managed Switch GS1920-24HP

    Ask a Question

      Estimated Delivery: Jul 08 – Jul 10
      ... people are viewing this right now
    Compare
    Guaranteed Safe Checkout

    Overview:

    Zyxel Smart Switch Simplifies Robust Network Management

    Today’s small and medium-sized businesses (SMBs) expect a higher level of performance from their networks—more connections to support diverse applications, fewer network disruptions, easier management and a greater degree of network security. The Zyxel GS1920 Series of switches fulfills these expectations with support for 24/48 100/1000BASE-T PoE Plus or non-PoE copper ports, as well as non-blocking performance and high-power budget support to facilitate a greater number of network connections.

    The Zyxel GS1920 Series offers network protection features and comprehensive access management functions to establish a reliable and secure network environment. Easy deployment, smart management and solid security—the GS1920 Series is the best solution for SMB networks.

    • Smart managed switch with essential L2 features

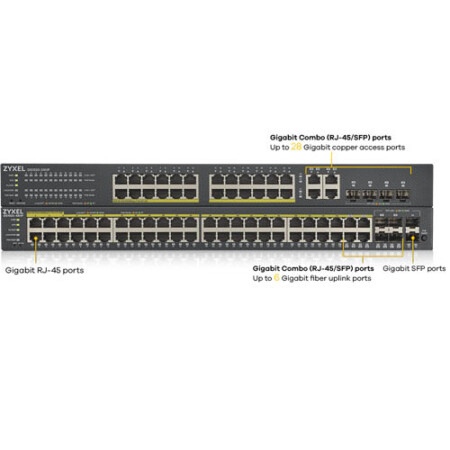

    • GbE RJ-45, GbE combo (RJ-45/SFP) and fixed GbE SFP connectivity
    • Compliant with IEEE 802.3af PoE and 802.3at PoE Plus
    • High 375-watt power budget
    • Supports ZON Utility, Smart Connect and iStacking facilitates easy network initialization and management
    • Reliable network availability with Loop Guard, IPSG, and CPU protection
    • RADIUS, static MAC forwarding and 802.1X authentication-enhance network security
    • Future-proofed with IPv6 support

    Specifications:

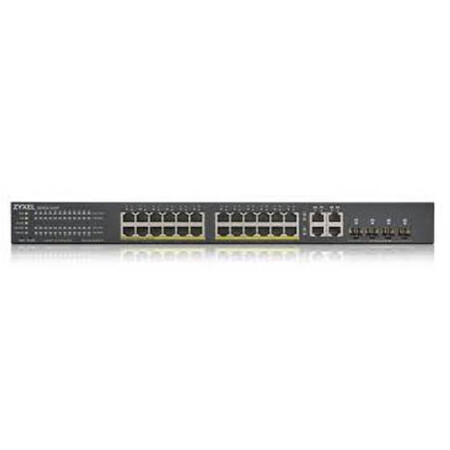

    GS1920-24HP Front View
    Model GS1920-24 GS1920-24HP GS1920-48 GS1920-48HP
    Product Name 24-port GbE Smart Managed Switch 24-port GbE Smart Managed PoE Switch 48-port GbE Smart Managed Switch 48-port GbE Smart Managed PoE Switch
    GS1920-24 GS1920-24HP GS1920-48 GS1920-48HP
    Port Density
    Total port count 28 28 50 50
    100/1000 Mbps 24 - 44 -
    100/1000 Mbps PoE - 24 - 44
    Gigabit SFP - - 2 2
    Gigabit combo (SFP/RJ-45) 4 4 4 4
    Performance
    Switching capacity (Gbps) 56 56 100 100
    Forwarding rate (Mpps) 41.67 41.67 74.40 74.40
    Packet buffer (Bytes) 1.5 M 1.5 M 1.5 M 1.5 M
    MAC address table 16 K 16 K 16 K 16 K
    Power Requirement
    Input voltage of AC 100 - 240 V AC, 50/60 Hz
    Maximum power consumption (Watt) 27.2 476.7 40 503
    Total PoE power budget (watt) - 375 - 375
    Physical Specifications
    Item Dimensions (WxDxH)(mm)(in.) 441 x 131 x 44/ 17.36 x 5.16 x 1.73 440 x 330 x 44.5/ 17.32 x 12.99 x 1.75 440 x 200 x 44.5/ 17.32 x 7.87 x 1.75 440 x 330 x 44.5/ 17.32 x 12.99 x 1.75
    Item Weight (kg/lb.) 2.17/4.78 4.79/10.56 3.04/6.7 5.13/11.3
    Packing Dimensions (WxDxH)(mm)(in.) 561 x 220 x 82/ 22.08 x 8.66 x 3.23 583 x 451 x 98/ 22.95 x 17.75 x 3.86 512 x 293 x 92/ 20.15 x 11.53 x 3.62 586 x 452 x 97/ 23.06 x 17.79 x 3.82
    Packing Weight (kg/lb.) 3.263/7.19 5.747/12.67 4.10/9.04 6.25/13.78
    Included accessories • Power cord • Rack mounting kit • Power cord • Rack mounting kit • Power cord • Rack mounting kit • Power cord • Rack mounting kit
    Green Feature
    Fanless Yes - - -
    Environmental Specifications
    Operating temperature 0°C to 50°C/32°F to 122°F
    Operating humidity 10% to 90% (non-condensing)
    Storage temperature -40°C to 70°C/-40°F to 158°F
    Storage humidity 10% to 95% (non-condensing)
    MTBF (hr) 211,623.0 133,062.5 255,579.8 120,760
    Heat dissipation (BTU/hr) 92.75 1,625.55 136.40 1,572.01

    Brand

    Zyxel
