Main Features:
- 410W PoE+ Power Budget
- Static Routing
- Internet Group Management Protocol (IGMP) Multicast
- 802.1q VLAN Tag
- Access Control List (ACL)
- 802.1x Radius Authentication
- Command Line Interface (CLI) Access support
- 512MB CPU Memory DRAM
- Port Mirroring
- Link Aggregation
- Port Security
- 802.1p QoS
- Bandwidth and Storm Control
- Rack mount
- External power supply: DC power 12V DC and PoE+ SKU at 54V
- Dimensions (D x H x W): 440 mm x 257 mm x 44 mm
- Weight: 3,798 g
- Hardware
- 24 PoE+ Gigabit ports
- Four SFP+ 10 Gbps ports
- Power port (located on the back panel)
- CONSOLE port
- RESET button – press and hold for more than 10 seconds to reset the switch to factory defaults
- LED MODE button – push to toggle between LAN or PoE mode display

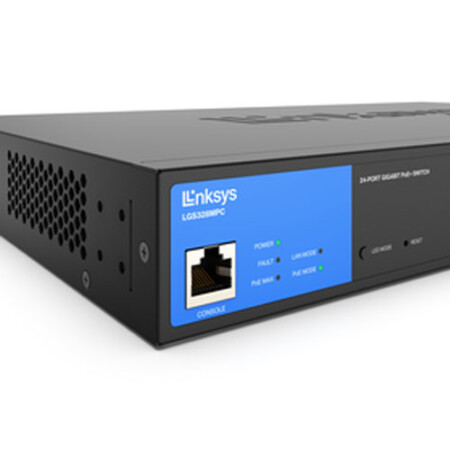

Indicator Lights
- POWER
- FAULT
- PoE MAX
- PoE MODE
- LAN MODE
- SPEED
- LINK/ACT
To learn about the Linksys LGS328MPC’s light behavior, click here.
Browser Requirements
- Latest Google Chrome™ version (minimum version 80.0 or later)
- Latest Firefox® version (minimum version 72.0 or later)
