PRODUCT CLASSIFICATION
| Product Sequence | E Series |

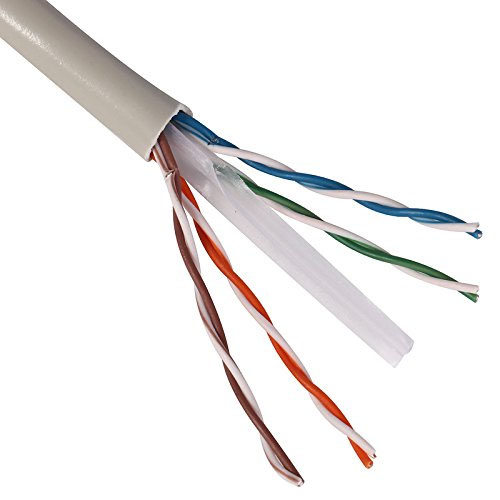

| Product Type | Twisted Pair Cable |
MATERIAL CONSTRUCTION & DESIGN
| Conductor Material | Bare Copper |
| Conductor Size | 24 AWG |
| Conductor Construction | Solid |
| Insulation Material | High Density PE |
| Insulation Diameter | 0.91 ± 0.08mm |
| Colour Code | Per TIA/EIA 568-B |
| Total Number of Wires | 8 |
| Rip Cord | Yes |
| Outer Jacket | PVC/LSOH |
| Outer Jacket Thickness & Ex. Diameter | 0.50 ± 0.05mm, 5.80 ± 0.30mm |
ELECTRICAL & MECHANICAL CHARACTERISTICS
| Impedance | 100 ±15 Ω |
| DC Resistance | 95 Ω/km |
| Max. Resistance Unbalance | ≤5% |
| Capacitance | 5.6 nF/100m max. |
| Capacitance Unbalance | 3.3 pF/m max. |
| Propagation Delay Skew | ≤45 ns/100m Max |
| Velocity of propagation | 69 % |
| Min. Insulation Resistance | 5 GΩ•km |
| Max. Tensile Strength – Short Term | 110 N |
| Min. Bend Radius | 8 X OD |
| Operating Temperature Range | -20℃~75℃ |
