Detail Description

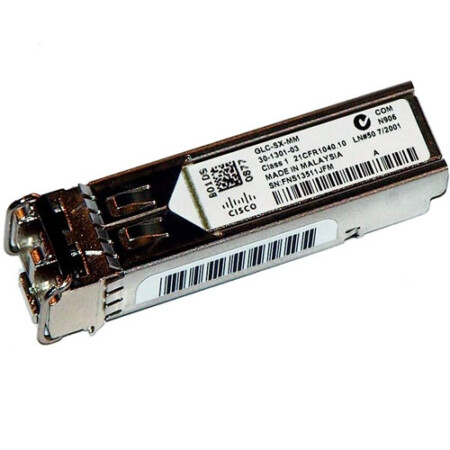

The 1000BASE-SX SFP, compatible with the IEEE 802.3z 1000BASE-SX standard, operates on legacy 50 μm multimode fiber links up to 550 m and on 62.5 μm Fiber Distributed Data Interface (FDDI)-grade multimode fibers up to 220 m. It can support up to 1km over laser-optimized 50 μm multimode fiber cable.
| Product Code | GLC-SX-MM |
| Connector Type: | LC multi-mode |
| Cabling Type: | Ethernet 1000Base-SX |
| Compliant Standards: | IEEE 802.3z |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Gigabit Ethernet |
| Data Transfer Rate: | 1 Gbps |
| Features: | Full duplex capability , Hot swap module replacement |
| Form Factor: | Plug-in module |
| Max Transfer Distance: | 1800 ft |
| Optical Wave Length: | 850 nm |
| Networking Type: | SFP (mini-GBIC) transceiver module |
