Description:

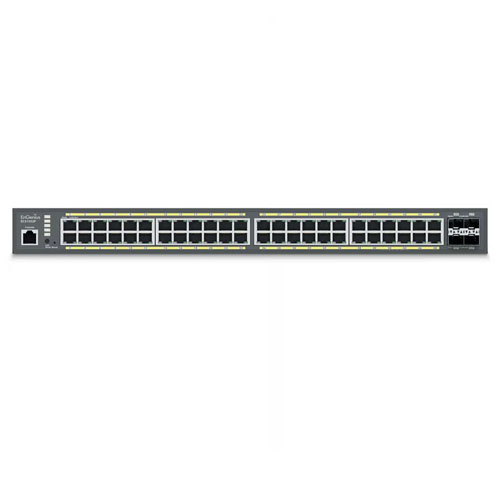

Cloud Management Switch with 48 GE + 4 10GE SFP+, IEEE802.3at/af, 740w PoE power budget, internal power supply, 19inch 1U rack-mountable
Technical Specifications:
Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 10000Base-T Ethernet
802.3x Full-Duplex Flow Control
Network Ports
(48)10/100/1000 Mbps Ports
Performance
Switching Capacity: 176Gbps
Forwarding Mode: Store-and-Forward
Flash Memory: 128 MB
SDRAM:512MB
Packet Buffer Memory: 2M
Address Database Size: 32K MAC Addresses
PoE Capability
PoE Standard: Ports 1~8 Support IEEE 802.3at
PoE Capable Ports: All Gigabit Ethernet Ports
PoE Budget
740 W
Power Source
AC Input: 100 ~ 240VAC, 50-60Hz, 1.2A
DC Output: 54V/1.67A
Physical Interface
System Indicators
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED
Port Indicators
Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)
L2 Features
Network Management
EnGenius Cloud
Local Web GUI
MAC Address Table
32K
Jumbo frame size
10K
Multicast Group
Max 256 groups
MLD Snooping
MLD Snooping: v1
QoS-number of Priority Queues Supported/
Queue 8
QoS Trust Mode
Cos/802.1p
DSCP
CoS/802.1p-DSCP
Scheduling Mechanism
Strict / WRR/ Strict + WRR
Bandwidth Control
Port-based bandwidth control (Ingress/Egress)
Port Security
Max. 256 Entries
Access Control List (ACL)
MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
Web Graphical User Interface (GUI)
HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6
SNMP
SNMP v1/v2c/v3 Support
RMON
RMON 1,2,3,9
System Time
Time Setting/Daylight saving
Common L2 Features
802.1D Spanning Tree
802.1w Rapid Spanning Tree
802.1S Rapid Spanning Tree
Loopback Detection
Multicast Filitering
IGMP Snooping
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings/ IPv6 Settings
IEEE 802. 3az Energy Efficeient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/ Backup
Simple Network Time Protocol (SNTP)
SYSLOG
