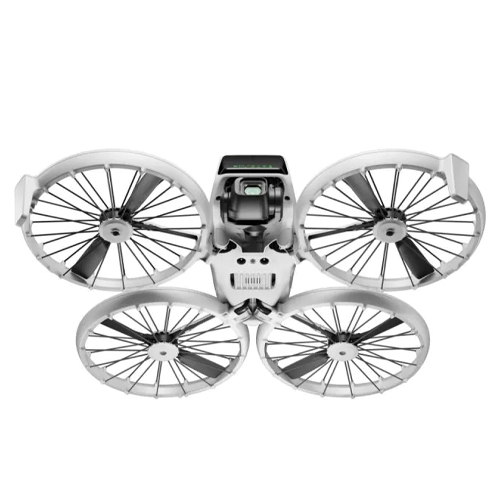

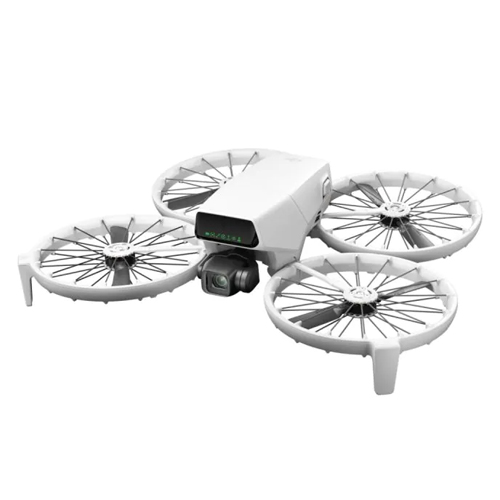

Foldable Full-Coverage Propeller Guard
- Under 249 g
- 1/1.3-inch CMOS Sensor
- AI Subject Tracking,
- Capture Your Best Angle
- 4K/60fps HDR Video
-
31-Min Max Flight Time
Specifications:
- Weight
< 249 g
Dimensions

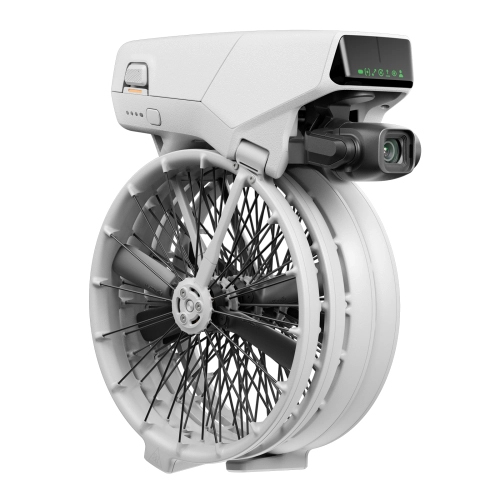

When folded: 136×62×165 mm (D×S×W)
When unfolded: 233×280×79 mm (D×S×W)
Class of drone
C0 (EU)
Maks. rate of climb
5 m/s (Sport mode)
5 m/s (Normal mode)
2 m/s (Cine mode)
Maks. descent rate
5 m/s (Sport mode)
5 m/s (Normal mode)
1.5 m/s (Cine mode)
Maks. horizontal speed
At sea level, in windless conditions: 12 m/s* (Sport mode); 12 m/s (tracking status)
At sea level, with 4 m/s wind blowing in the direction of flight: 16 m/s* (Sport mode); 12 m/s (tracking status)
* Measured in a wind tunnel, with the drone taking off from a height of 0 m and rising vertically to a height of 1.5 m in Sport mode. The data is indicative. Always pay attention to the messages in the camera view while flying.
Maks. takeoff height
3000 m
Maks. flight time
31 min
Maks. hover time
28 min
Maks. flight distance
14 km
Maks. wind resistance
10.7 m/s (Level 5)
Operating temperature range
From -10°C to 40°C (14°F to 104°F)
GNSS
GPS + Galileo + BeiDou
Internal memory
2 GB
Wide Angle Camera
Matrix
1/1,3″
Lens
FOV: 82.1°
Equivalent focal length: 24 mm
Aperture: f/1.7
Sharpness: from 1 m to ∞
ISO range
Video:
Normal/Slow Motion: 100-6400 (Normal)
100-1600 (D-Log M)
Photo:
12 MP photos: 100-6400
48 MP photos: 100-3200
Czas otwarcia migawki
12 MP photos: 1/16000-2 sec (2.5-8 sec for simulated long exposure time)
48 MP photos: 1/8000-2 sec
Maks. image size
48 MP photos: 8064×6048
Photo modes
Single Shot: 12 MP and 48 MP
Burst Shooting: 12 MP, 3/5/7 frames
Automatic Exposure Bracketing (AEB): 12 MP, 3/5/7 frames at 2/3 EV
Timed: 12 MP, 2/3/5/7/10/15/20/30/60 sec
Photo format
JPEG
DNG/RAW
Video resolution
4K: 3840×2160@24/25/30/48/50/60FPS
FHD: 1920×1080@24/25/30/48/50/60/100FPS
2.7K Vertical Shooting: 1512×2688@24/25/30FPS
FHD Vertical Shooting: 1080×1920@24/25/30FPS
Maks. rozdzielczość filmów
4K (3840 x 2160) 60FPS
Video format
MP4
Maks. video bitrate
150 Mbps
Supported file system
exFAT
Digital zoom
4K: 3x
FHD: 4x
2.7K Vertical Shooting: 3x
FHD Vertical Shooting: 4x
12 MP photos: 3x
Color mode
Normal D-Log M
Gimbal
Stabilization
3-axis mechanical gimbal (tilt, roll, pan)
Zakres mechaniczny
Tilt axis: from -130° to +63°
Rolls axis: from -47° to +47°
Pan axis: from -30° to +30°
Scope of control
Tilt axis: from -90° to +35°
Maks. prędkość kontroli (tilt)
100°/s
Zakres wibracji kątowych
± 0,01°
Sensor system
Type of sensors
Bottom sensors: one visual sensor and an infrared sensor
Front sensors: 3D ToF sensor
Front
3D ToF sensor:
Measurement range: 0.3-8 m (reflection coefficient > 10%)
FOV: 60° horizontally, 60° vertically
Lower
Measurement range: 0.3-8 m (reflection coefficient > 10%)
Precision hovering range: 0,5-10 m
FOV: 60° horizontally, 60° vertically
Work environment
Bottom sensors:
Surfaces with recognizable patterns, diffuse reflection > 20% (e.g., walls, trees, people) and adequate lighting (lux > 15)
Video Broadcasting
Video transmission system
O4
Live view quality
Control instrumentation: up to 1080p/60FPS
Operating frequency
2.4000-2.4835 GHz
5.170-5.250 GHz
5.725-5.850 GHz
*Frequency ranges vary by country and region. Check local regulations.
Moc nadajnika (EIRP)
2.4 GHz:
< 30 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
5.1 GHz:
< 23 dBm (CE)
5.8 GHz:
< 33 dBm (FCC)
< 14 dBm (CE)
< 30 dBm (SRRC)
Maks. transmission range (no obstructions, no interference)
FCC: 13 km
CE: 8 km
SRRC: 8 km
MIC: 8 km
Maks. transmission range (unobstructed, with interference)
Strong interference (urban area): ok. 1-2.5 km
Average interference (suburban area): approx. 2.5-7 km
Low interference (suburban/coastal): ok. 7-13 km
Maks. transmission range (with obstacles, with interference)
Low interference and building obstructions: ok. 0-0.5 km
Low interference and tree obstructions: ok. 0.5-2 km
Maks. download speed
O4:
DJI RC-N3: 10 MB/s
DJI RC: 10 MB/s
Wi-Fi 5: 30 MB/s
Delays (depending on ambient conditions and mobile device)
Ok. 120 ms
*Depending on the environment and mobile device.
Antenna
4 antennas (2.4 GHz: 1T2R; 5.2/5.8 GHz: 2T2R)
Wi-Fi
Minutes
802.11a/b/g/n/ac
Wi-Fi operating frequency
2.4000-2.4835 GHz
5.7250-5.850 GHz
Wi-Fi transmitter power (EIRP)
2.4 GHz:
< 20 dBm (FCC/CE/SRRC/MIC)
5.8 GHz:
< 20 dBm (FCC/SRRC)
< 14 dBm (CE)
Effective outreach
50 m
Bluetooth
Bluetooth protocol
Bluetooth 5.
Bluetooth operating frequency
2.4000-2.4835 GHz
Moc nadajnika (EIRP) Bluetooth
＜10 dBm
Accumulator
Capacity
3110 mAh
Battery weight
Ok. 83,5 g
Nominal voltage
7,16 V
Battery type
Li-ion
Chemical composition
LiNiMnCoO2
Energy
22.3 Wh
Charging temperature
From 5°C to 40°C (41°F to 104°F)
Charging time
Charging through the drone (charging power of 30 watts):
From 0% to 100%: ok. 70 min
Charging one battery in the hub (charging power of 48 watts):
From 0% to 100%: ok. 45 min
Charging two batteries in the hub (charging power of 65 watts):
From 0% to 100%: about 70 min
Charger
Recommended charger
Charger DJI 65W
Chargers with USB Power Delivery
Control unit DJI RC PRO ENTERPRISE
Maks. uptime
Without charging the mobile device: ok. 3,5 h
While charging a mobile device: approx. 1,5 h
RC-N3 operating temperature range
From -10°C to 40°C (14°F to 104°F)
Maks. size of mobile device
180×86×10 mm (D×S×W)
