| Brand |
CP Plus |
| Product Type |

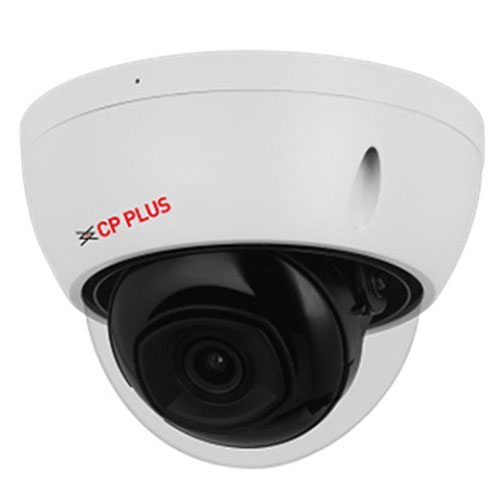

Dome Camera |
| Product Model |
CP-UNC-DA51L3C |
| Image Sensor |
1/2.7” 5MP Progressive scan CMOS(0.9407centimetres) |
| Minimum Illumination |
0.03 Lux@F2.0(Color, 30 IRE) 0.003 Lux@F2.0(B/W, 30 IRE) 0 Lux(IR on) |
| Effective Pixels |
2880(H) x 1620(V) |
| Bodytype |
Dome |
| White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
| Lens |
3.6mm(2.8mm Optional) |
| IRIS |
Fixed |
| Close Focus Distance |
2.8mm: 0.8m ; 3.6mm: 1.3m |
| S/N Ratio |
>56dB |
| Gain Control(AGC) |
Auto/Manual |
| Shutter Speed |
Auto/Manual, 1/3~1/100000s |
| Video Compression |
Smart H.265+/H.265/Smart H.264+/H.264/H.264B/MJPEG(only supported by the sub stream) |
| Maximum Aperture |
F2.0 |
| Angle Of View |
3.6mm: Horizontal: 92°; Vertical: 48°; Diagonal: 109° 2.8mm: Horizontal: 106°; Vertical: 56°; Diagonal: 125° |
| Lens Type |
Fixed-focal |
| Back Light Computer |
BLC/ HLC/ DWDR |
| Frame Rate |
Main stream: 2880 × 1620(1 fps–20 fps) 2688 × 1520(1 fps–25/30 fps) Sub stream: 704 × 576(1 fps–25 fps) 704 × 480(1 fps–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| DORI Distance |
3.6mm– 76m(Detect) 30.4m(Observe) 15.2m(Recognize) 7.6m(Identify) 2.8mm– 56m(Detect) 22.4m(Observe) 11.2m(Recognize) 5.6m(Identify) |
| Resolution |
2880 × 1620(2880 × 1620); 2688 × 1520(2688 × 1520); 2560 × 1440(2560 × 1440); 3M(2048 × 1536); 2304 × 1296(2304 × 1296); 1080p(1920 × 1080); 1.3M(1280 × 960); 720p(1280 × 720); D1(704 × 576/704 × 480); VGA(640 × 480); CIF(352 × 288/352 × 240) |
| Motion Detection |
OFF/ON(4 areas, rectangular) |
| Privacy Mask |
4 areas |
| ICR |
Auto(ICR)/Color/B/W |
| ROI |
Yes(4 areas) |
| Bit Rate |
H.264: 32 Kbps–6144 Kbps ; H.265: 12 Kbps–6144 Kbps |
| Audio |
Built-in Mic |
| Audio Compression |
G.711A; G.711Mu; G.726; PCM |
| Cyber Security |
Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade |
| Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast, ONVIF(Profile S/Profile T); CGI; InstaOn; Genetec; Milestone |
| SDK And API |
Yes |
| Alarm Event |
Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception |
| Ethernet |
RJ-45(10/100Base-T) |
| User Account |
6(Total bandwidth: 48 M) |
| Smart Phone |
iPhone, iPad, Android Phone |
| IR Range |
IR Range of 30 Mtr., Smart IR |
| Operating Temperature |
-40° C ~ +60° C(-40° F ~ +140° F) / Less than <95% RH |
| Power Source |
DC12V, PoE(802.3af) |
| Power Consumption |
1.7W(12V DC); 2.5W(PoE) |
| Weatherproof Standard |
IP67 |
| Dimension |
85.6 mm × Φ94.0 mm |
| Casing |
Metal |
| Weight |
0.32 kg |
| Warranty |
As Per Manufacturer Terms and Condition |
