APC Smart UPS RT 10000VA 230V

2 sold in last 18 hours

Last Updated: 26-10-2023

Item Code: G1235GA

Max Configurable Power (Watts)
8.0kWatts / 10.0kVA
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage

Estimated Delivery: Oct 20 – Oct 22

... people are viewing this right now

Compare

Guaranteed Safe Checkout

Description:

Model NO.

SURT10000XLI

Standby UPS

Sine Wave Output UPS

Output Capacity

Small Type

Equipment Mode

Centralized Model

Brand

APC

Bypass

Internal Bypass (Automatic and Manual)

Interface Port(S)

dB-25 RS-232, Smart-Slot

Battery Type

Maintenance-Free Sealed Lead-Acid Battery with Su

Waveform Type

Sine Wave

Load Crest Factor

3 : 1

Input Voltage Adjuge for Main Operations

151 – 302V

Output Power Capacity

8000watts / 10000va

Transport Package

Carton

Specification

10000va

Trademark

APC

Origin

China

HS Code

8504402000

Product Description

Smart-UPS

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Smart-UPS™ are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions by supplying reliable, network-grade power reliably and efficiently. Available in a variety of forms factors and classes (entry level, standard and extended run), there is a model for nearly every application and budget. Standard models are the most popular UPS in the world for business servers, storage and network devices and have long been considered the benchmark for reliability and manageability. Entry level Smart-UPS models are an economical choice for small and medium businesses looking to protect small networking devices, point-of-sale (POS) equipment and entry level servers. The extended run models accept external battery packs for long runtime to power critical servers, security and communication systems through outages that could last hours.

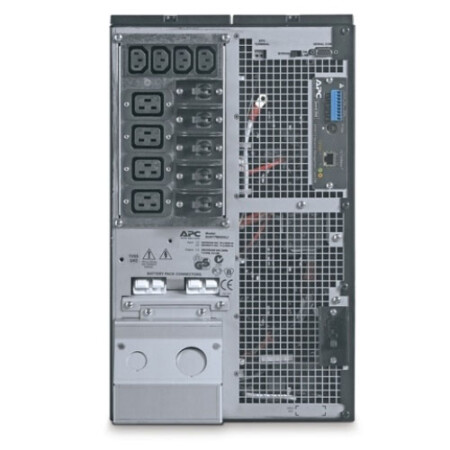

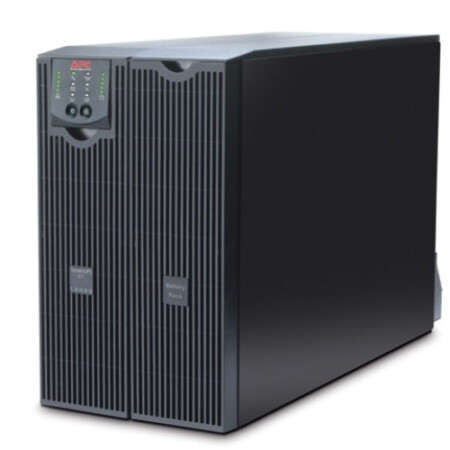

APC Smart-UPS RT10000VA 230V SURT10000XLICH Tower/Rack 6U

High density, double-conversion on-line power protection with scalable runtime

Includes: CD with software, Smart UPS signalling RS-232 cable, User manual

Technical Specifications:

Max Configurable Power (Watts) 8.0kWatts / 10.0kVA Output Voltage Note Configurable for 220 : 230 or 240 nominal output voltage Efficiency at Full Load 92.0 % Output Voltage Distortion Less than 3% Output Frequency (sync to mains) 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Other Output Voltages 220, 240 Load Crest Factor 3 : 1 Topology Double Conversion Online Waveform type Sine wave Bypass Internal Bypass (Automatic and Manual)

Input

Input frequency 50/60 Hz +/- 5 Hz (auto sensing) Input voltage range for main operations 160 - 280V Efficiency at Full Load 92.0 % Input Total Harmonic Distortion Less than 7% for full load Other Input Voltages 220, 240

Batteries & Runtime

Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof Included Battery Modules 4 Typical recharge time 2.2hour(s) Expected Battery Life (years) 3 - 5 RBC Quantity 2 Extendable Run Time 1 Battery Volt-Amp-Hour Capacity 1920 Extended Run Options APC-Smart-UPS-RT-10000VA-230V-For-China Runtime View Runtime Graph View Runtime Chart

Communications & Management

Interface Port(s) DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot Control panel LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm Emergency Power Off (EPO) Yes

Surge Protection and FilteringSurge energy rating 1265JJoules Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height 432MM, 43.2CM Maximum Width 263MM, 26.3CM Maximum Depth 723MM, 72.39CM Net Weight 110.91KG Shipping weight 129.09KG Shipping Height 552MM, 55.2CM Shipping Width 597MM, 59.7CM Shipping Depth 991MM, 99.1CM Color Black Units per Pallet 2.0

Environmental

Operating Temperature 0 - 40 °C Operating Relative Humidity 0 - 95 (non-condensing) % Operating Elevation 0-3000meters Storage Temperature -15 - 45 °C Storage Relative Humidity 0 - 95 (non-condensing) % Storage Elevation 0-15000meters Audible noise at 1 meter from surface of unit 55.0dBA Online thermal dissipation 2216.0BTU/hr Protection Class IP 20

Brand

APC
